Specifications

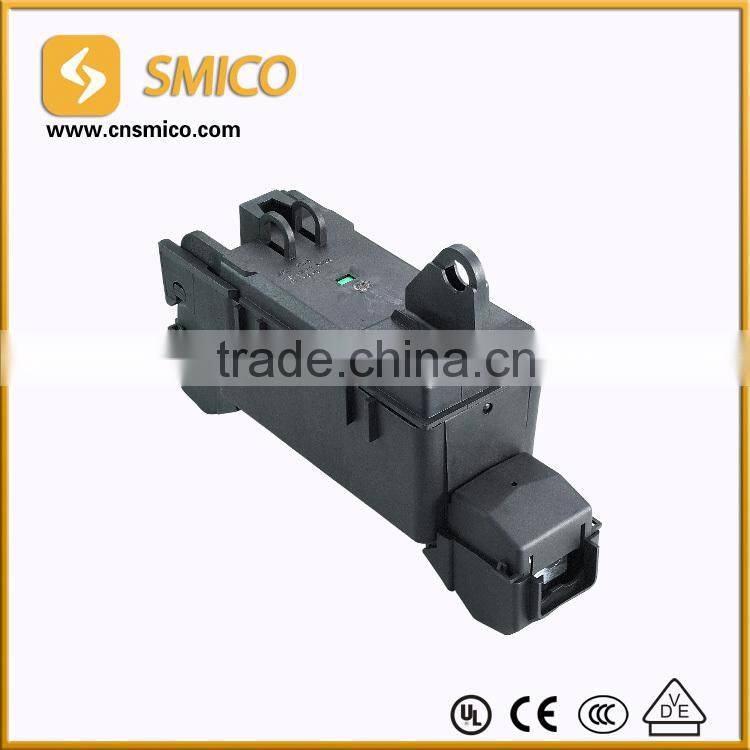

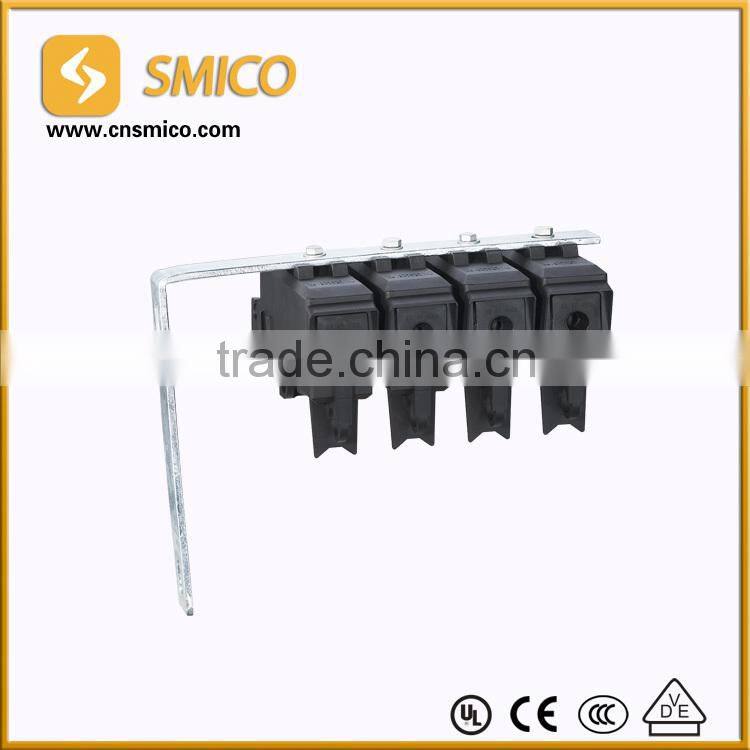

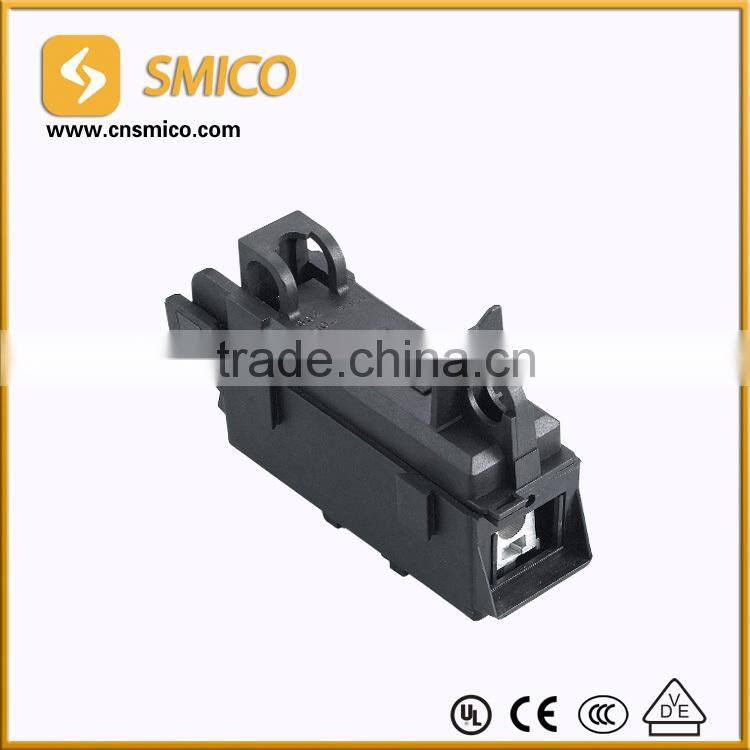

Fuse switch disconnector1.Type:APDM160
2.Application:used either as an operation or protection device for LV line
General Description
The APDM630A fuse switch is used either as an operation or protection device for LV line.It is designed to be used with NT1,2 or 3 size fuses offering a maximum of 630Amps of line protection without blades.It case blades are used,the maximum switching load would be 800A.It is manufactured is reinfored fiberglass polyamide and fullfills all the necessary requirements for outdoor installation and operation.
Feature:
(1)In the APDM 630A model the connection is make with connectors suitable for aluminum and copper conductors with a section range between 16-95mm2(5-40AWG)
(2)The closure of the cap allows the switch to be closed with or wothout a fuse,preventing the risk of leaving tension parts exposed.It may be provided with a light emission diode(LED).
We have 160A,250A,400A,630A !
