Specifications
1.Voltage:500V2.Insulation level:1000V
3.Frequency:50/60Hz
4.Weight:600G
The APDM160 fuse switch is used either as an operation or protection device for LV line.
Mounted NT fuse switch disconnector,Fuse switch disconnector(APDM)

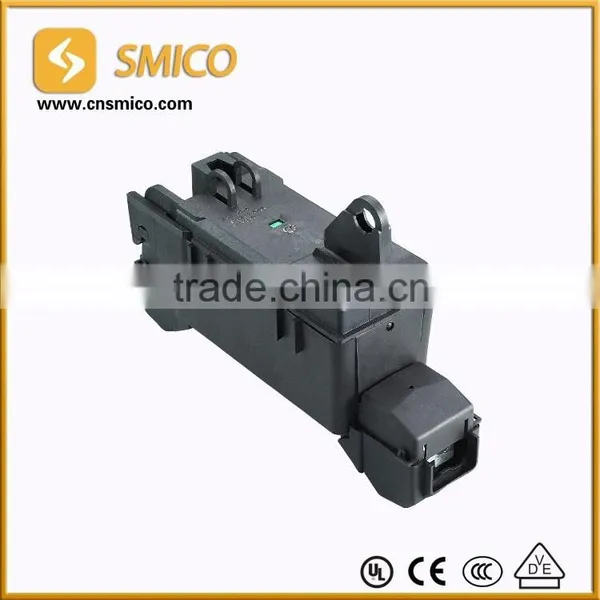

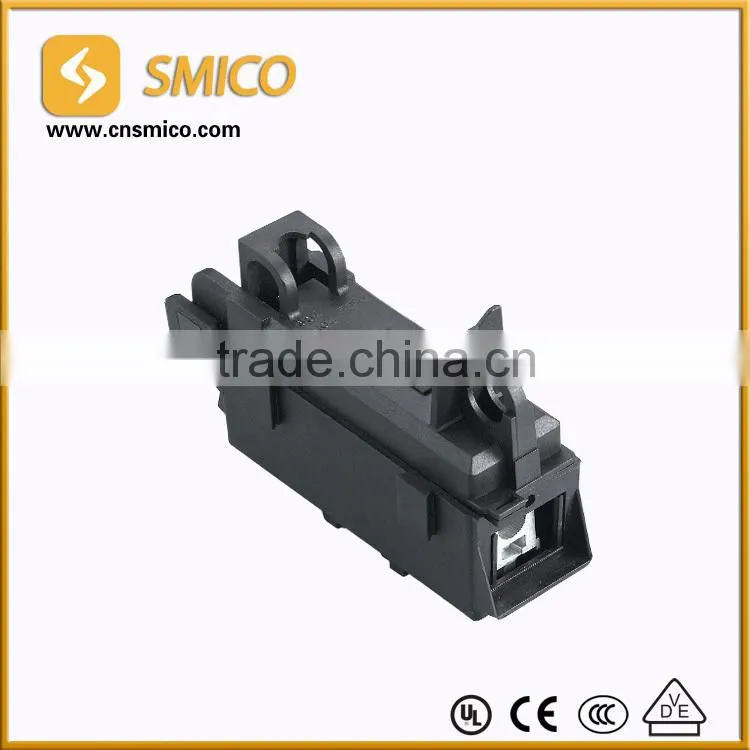

APDM160-Single phase switch for NH type fuses up tp 160A
General Description
The APDM160 fuse switch it is used either as an operation or protection device for LV lines,It is designed to be used with NH00 size fuses offering a maximum of 160Amps of line protection without blades.
It case blades are used,the maximum switching load would be 250A.It is manufactured is reinfored fiberglass polyamide and fullfills all the necessary requirements for outdoor installation and operation.
In the APDM 160A model the connection is make with connectors suitable for aluminum and copper conductors with a section range between 16-95mm2(5-40AWG)

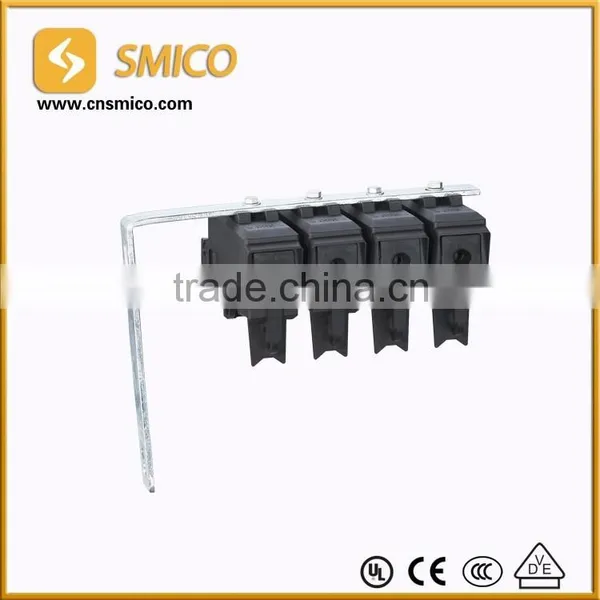

The APDM 160 model can also be connected with terminals lugs and both models can be installed with single phase or three phase opening.
They have special sockets to obtain a compact set.
The switch is operated from the ground with an operating rod and also has an indicator to show if the fuse is placed.It can be sealed with security ties.
It also has a led to show the fusion of the fuse.
Voltage |
500V |
Insulation level |
1000V |
Frequency |
50/60Hz |
Operational current with fuses |
160A |
Operational current with blades |
250A |
Installation category |
AC22 |
Short lasting current(1s) |
3,2KA |
Dynamic current(crest ) |
25KA |
Interruption capacity |
100KA |
Minimum mechanical life(operation) |
1000 |
Weight |
600G |
Protection range |
IP23 |
