Specifications

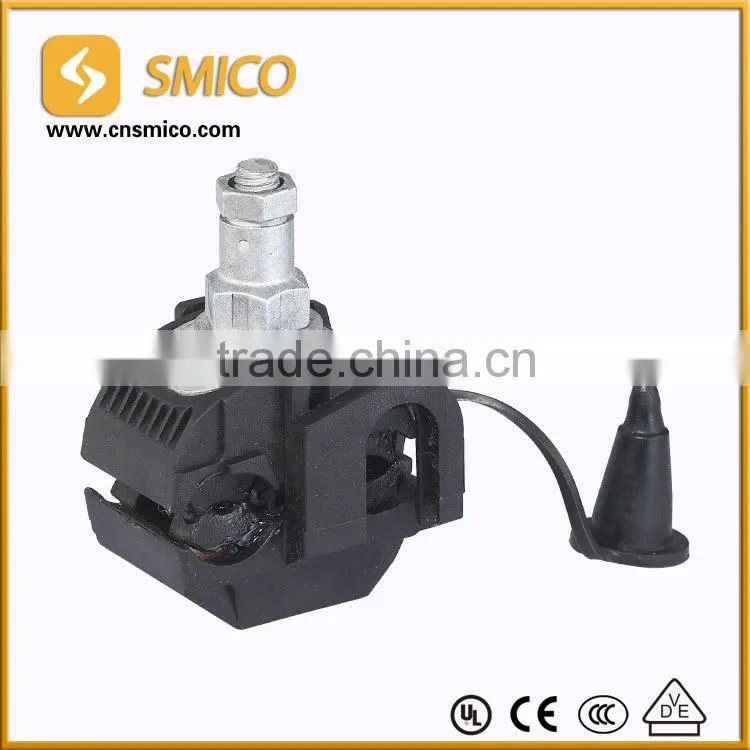

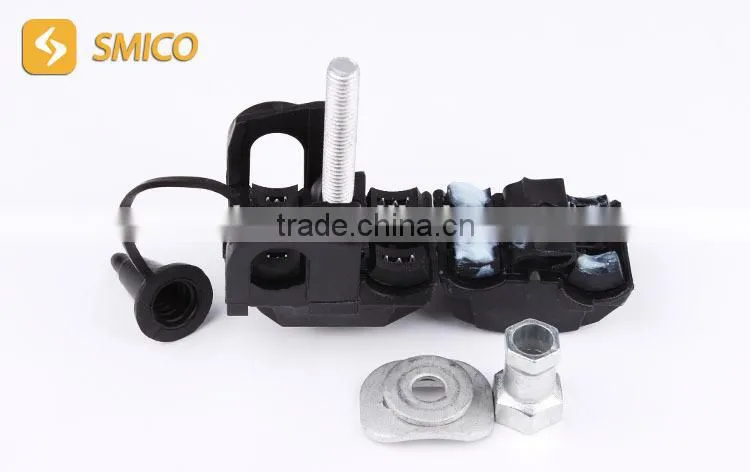

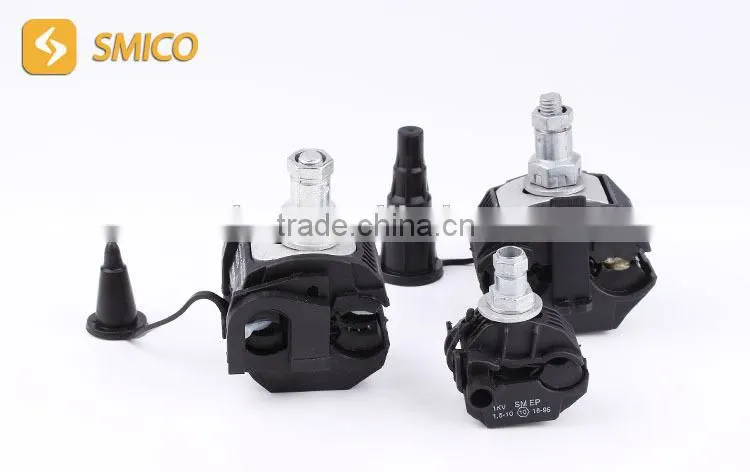

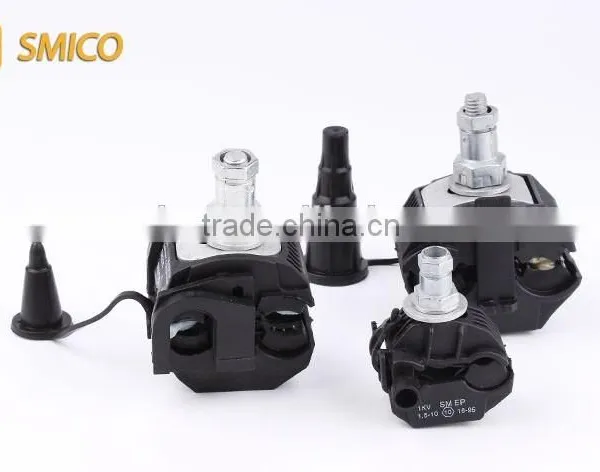

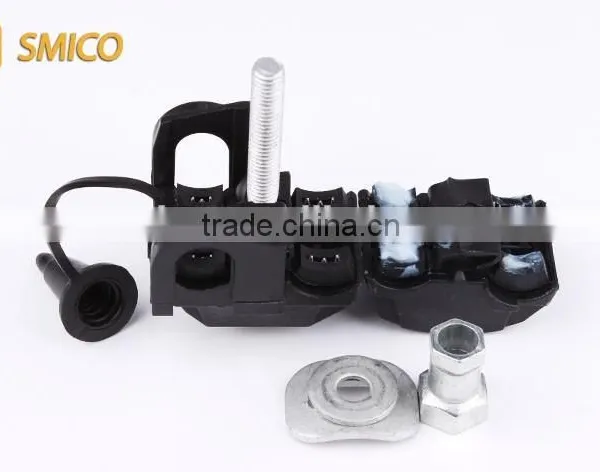

SM2-95 Insulation piercing connector1.Accord to IEC standard
2. Piercing depth: 1.5-2mm
3. Nominal current:157A
IPC-Insulation Piercing Connector is suitable for connecting main line leading the branch line among high and low voltage insulation circuits. According to the Copper or Aluminium cnductor, the IPC connector choose CU or AL mateial teeth. It has water-proof function .
Detail specification
Modle |
Main line section (mm2) |
Branch section (mm2) |
Nominal current (A) |
Outline size(mm) |
Weight (g) |
Piercing depth (mm) |
SM2-95 |
16-95 |
4-35(50) |
157 |
46*52*87 |
160 |
1.5-2 |
General of insulation piercing connector(IPC)
1.1Piercing connector,simple installation,need not strip the cable coat.
1.2Moment nut,piercing pressure is constant,keep good electric connection and make no damage to lead.
1.3Self-seam frame,wetproof,and anti-corrosion,extend the using life of insulated lead and connector.
1.4Adopted special connecting tablet,apply to joint of Cu(Al) and Cu(Al) or Cu and Al.
1.5Small electric connecting resistance,connecting resistance less than 1.1 times of the resistance of branch conductor with the same length.
1.6Special insulated case body,resistandce to illumination and environmental aging,the insulation strength can up to 12KV.
1.7Arc surface design, apply to connection with the same(different) diameter,wide connection scope(0.75mm²- 400mm²)
