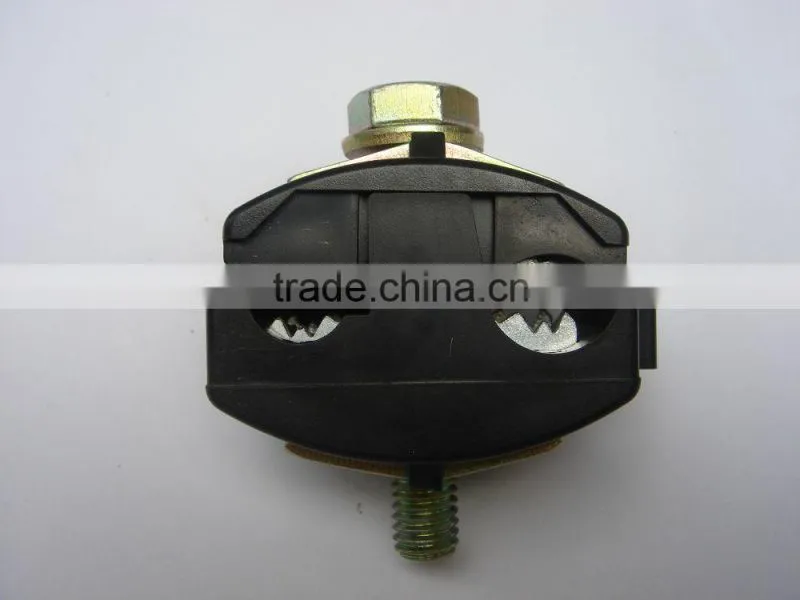

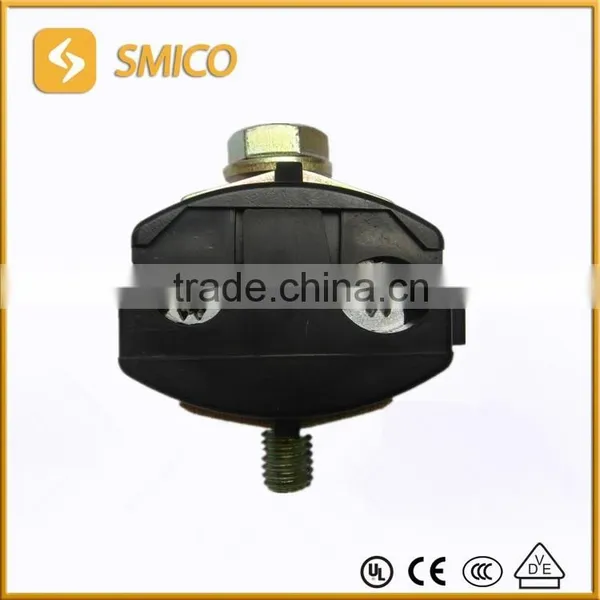

Help Center1KV Insulation Piercing Connector Wire Connector IPC Insulation Connector for ABC Cable
Related Products
-
SMICO Made In China Aerial Anchoring Insulation Strain ClampUS$ 0.9 - 9.99MOQ: 1 Piece -
SMICO Optic Cable Plastic Anchoring Clamp , Preformed Aerial Opgw Strain ClampUS$ 0.9 - 9.99MOQ: 1 Piece
-
SMICO Products Electric Cable Accessories Wedge Dead End Anchor ClampUS$ 0.9 - 9.99MOQ: 1 Piece
-
SMICO New Ideas Adjustable High Tension Electric Wire Conductor Anchor ClampUS$ 0.9 - 9.99MOQ: 1 Piece
-
SMICO New Invention Wedge Type Wire Rope Cable Tension Anchor ClampUS$ 0.9 - 9.99MOQ: 1 Piece
Specifications
1.Type:ABS2.Material: plastic+galvanized steel
3.Conductor range:main 25-70mm2/tap 6-35mm2
IPC-Insulation Piercing Connector
(1) IPC ( insulating piercing clamp) are suitable for connecting hign-low voltage insulating line which quote tap line from the main line, or connecting the jumping conductor between the two tension phase.
(2) Insulation connector/piercing connector/insulation piercing connector(IPC):With specially designed contact teeth and special insulation plastic cover.
(3)All components are connected with the flame of fire-retardant properties
(4)Using corrosion-resistant shell, Anti-climate change, high-intensity ultraviolet insulation materials.
Detail specification
Model |
Conductor range (mm2) |
|
Main line (AI/CU) |
Tap line (AI/CU) |
|
ABS |
25-70 |
6-35 |
Material
1.Body Material : UV-resistant plastic
2. Nut Material : Hot-dip galvanized steel
3. Teeth material: The piercing teeth could be copper or aluminium.
The reasons of choosing insulation piecring connector

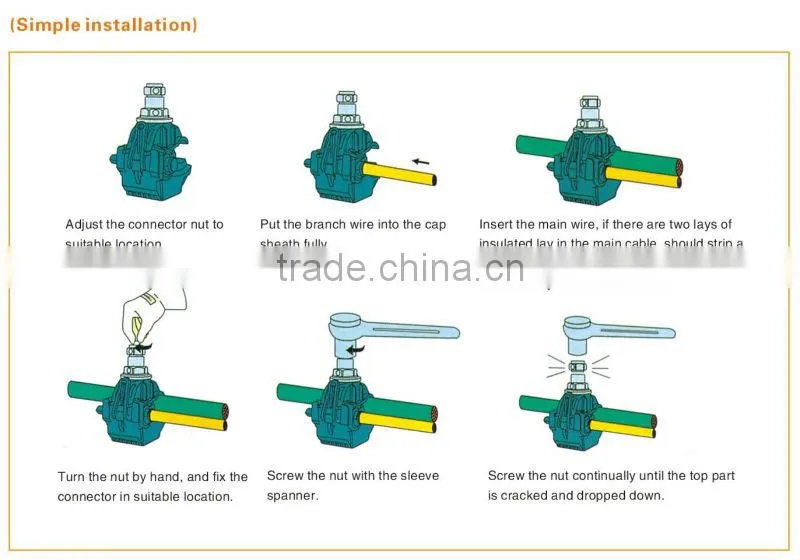

1. Simple installation
Con be branch of cable without striping the insulated coat and the joint is completely insulated. Make branch in the random location of cable without cutting off the main cable.Simple and reliable installatiom, just need sleeve spanner,can be installed with on live line.
2. Safe use
The joint has good resistance to distortion,quake,fire,wet,electrochemical corrosion and aging,need no maintenance.Has been used successfully for 30 years.
3. Economical Cost
Small installation space,save the cost of bridge and land construction.In structural application, there need no terminal box, junction box and return wire of cable,save cable cost.The cost of cables and clamps is lower than other power supply system.
