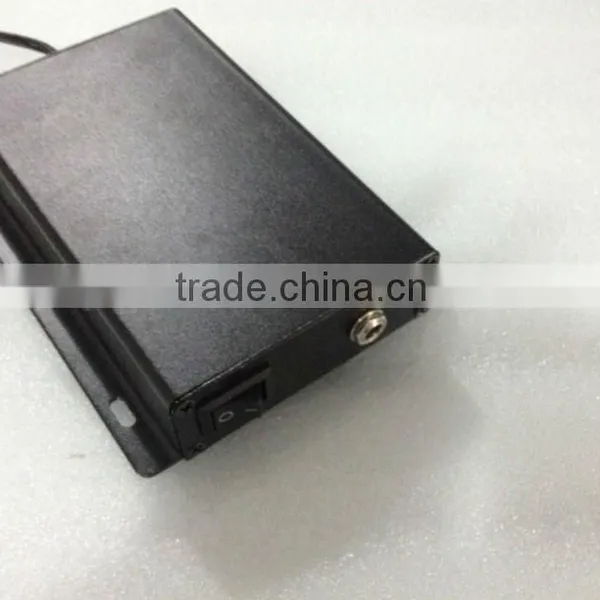

super thin and lightweight DC12V inverter for A2 el backlight/el advertising in aluminum box

Specifications

1. DC12V inverter for backlight or advertising
2. no noisy ,low power consumption
3.Super thin ,lightweight
4.CE/ROHS

1. DC12v Inverter for EL Backlight or EL advertisement

Each el panel should be powered by specific inverter ,EL inverter is used according to the lighting area of EL panel .









2.1. EL features :

EL panel	Standard size	A0/A1/A2//A3/A4/A5/A6 ,Also accept OEM customerized size and shapes
	Thickness :	0.3~0.5mm
	Max size :	100cm*200cm for 1 pcs ,larger sie can be joint by several panels ; Joint line gap is only 0.5mm non-lighting line
	High brightness:	100~150cd.m2
	Color	White on/pinkoff ,white on/white off ,blue/green/red/yellow/purple and etc any color
	Long lifespan	el sheet can continuously work for more than 10000hours depending on working environment and duty cycle .
	EL panel advantages	Thin ,lightweight ,flexibility ,can be bent and rolled ,low power consumption ,
	Green Product	no hazard ,no heat generated .
	Usage	For indoor & outdoor
EL Inverter	EL inverter input voltage	AC90V~AC240V / DC12V/ DC24V ,50~60HZ
	Function	ON/FLASH/OFF or customerized
	Output voltage	AC110V /800HZ
	Safety Certification	CE/ROHS.SGS/FC



2.2. EL technic paramters:

Speciality	Item	Paramter	Condition
EL inverter	Voltage input	AC90v~120V
	Frequency input	50~60HZ
	Current	0.25A
	Power	28W
EL Panel	Luminosity at start	85~150cd/m2
	Half life	8000hours	Keep irradiance
	Natural life	20000hours	keep irradiance
Circumstance	Working temperature	-50 °C~60 °C
	Deposited temperature	-65 °C~85 °C
	Strike of temperature	-30 °C/70 °C



3. EL Backlight standard size and  Inverters pictures:



EL backlight Standard Size
Size	Overall width (cm)	Overall length (cm)	Illuminated width (cm)	Illuminated length (cm)
A0	84.1	118.9	81.7	116.5
A1	59.4	84.1	57.3	82
A2	42	59.4	40.82	58.22
A3	29.7	42	28.36	40.66
A4	21	29.7	20	28.7
A5	14.8	21	14.04	20.24
A6	10.5	14.8	9.74	14.04







5. Irregular EL backlight  in differents types and shapes :



5.1. We can make customerized size at any size and shapes .

Max  size is 100cm*200cm lighting size in one piece without any joint . Larger size can be done by jointing several panels .









5. Angel Shine Advantages of EL

1. Any size and shapes ,can make size larger than 100*200cm for indoor & outdoor .

2. High quality with long lifespan

3. Professional technicaion to creat attractive animation modes

4. CE.ROHS.SGS.FCC certification

5. Short Leadtime ,quick delivery

6. Competitive price at top quality ,phosphor and silver material  are imported from Japan ,US .

7. Lightweight ,flexibility ,can be bent and rolled

8. 24hours long quality testing before delivery
