Help CenterLightweight and Small AC110VAC220V Inverter for A1 EL Panel With On/flash/off and Dimmer Function
Related Products
-
Popular DC12V Sound Active Inverter for el Car StickerUS$ 2.5 - 3.2MOQ: 1 Piece -
Thin 3V 2-AAA Battery Sound Active Inverter for EL T-shirtUS$ 1.12 - 1.5MOQ: 1 Piece
-
Lightweight Sound Active 3V 2-AAA Battery Inverter for EL T-shirtUS$ 1.12 - 1.5MOQ: 1 Piece
-
Hot-selling Sound Active DC6V 4-AAA Battery Inverter for EL T-shirtUS$ 1.3 - 1.7MOQ: 1 Piece
-
Best-selling Sound Active DC6V Inverter for EL T-shirtUS$ 1.3 - 1.7MOQ: 1 Piece
Specifications
1. AC110V/220V for backlight or advertising2. no noisy ,low power consumption
3.ON/Flash/Off and dimmer
4.CE/ROHS
1. AC110V/AC220V for EL Backlight or EL advertisement :Each el panel should be powered by specific inverter ,EL inverter is used according to the lighting area of EL panel .

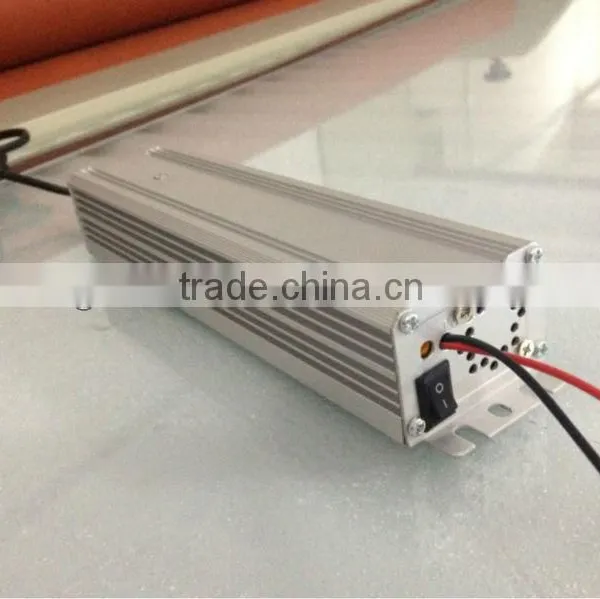

2. Technica for this A1 EL inverter
- Housing box Size :22*5*3.5cm
- Weight :0.36kg /pcs
- Drive for A1 EL Panel
- With on/flash/dimmer/off function
- Lightweight ,small valume,
- In aluminium box ,keep cool ,no heat
2.1. EL features :
| EL panel | Standard size | A0/A1/A2//A3/A4/A5/A6 ,Also accept OEM customerized size and shapes |
| Thickness : | 0.3~0.5mm | |
| Max size : |
100cm*200cm for 1 pcs ,larger sie can be joint by several panels ; Joint line gap is only 0.5mm non-lighting line |
|
| High brightness: | 100~150cd.m2 | |
| Color | White on/pinkoff ,white on/white off ,blue/green/red/yellow/purple and etc any color | |
| Long lifespan | el sheet can continuously work for more than 10000hours depending on working environment and duty cycle . | |
| EL panel advantages | Thin ,lightweight ,flexibility ,can be bent and rolled ,low power consumption , | |
| Green Product | no hazard ,no heat generated . | |
| Usage | For indoor & outdoor | |
| EL Inverter | EL inverter input voltage | AC90V~AC240V / DC12V/ DC24V ,50~60HZ |
| Function | ON/FLASH/OFF or customerized | |
| Output voltage | AC110V /800HZ | |
| Safety Certification | CE/ROHS.SGS/FC |
2.2. EL technic paramters:
| Speciality | Item | Paramter | Condition |
| EL inverter | Voltage input | AC90v~120V | |
| Frequency input | 50~60HZ | ||
| Current | 0.25A | ||
| Power | 28W | ||
| EL Panel | Luminosity at start | 85~150cd/m2 | |
| Half life | 8000hours | Keep irradiance | |
| Natural life | 20000hours | keep irradiance | |
| Circumstance | Working temperature | -50 °C~60 °C | |
| Deposited temperature | -65 °C~85 °C | ||
| Strike of temperature | -30 °C/70 °C |
3. EL Backlight standard size and Inverters pictures:
| EL backlight Standard Size | ||||
| Size | Overall width (cm) | Overall length (cm) | Illuminated width (cm) | Illuminated length (cm) |
A0 |
84.1 | 118.9 | 81.7 | 116.5 |
| A1 | 59.4 | 84.1 | 57.3 | 82 |
| A2 | 42 | 59.4 | 40.82 | 58.22 |
| A3 | 29.7 | 42 | 28.36 | 40.66 |
| A4 | 21 | 29.7 | 20 | 28.7 |
| A5 | 14.8 | 21 | 14.04 | 20.24 |
| A6 | 10.5 | 14.8 | 9.74 | 14.04 |
5. Irregular EL backlight in differents types and shapes :
5.1. We can make customerized size at any size and shapes .
Max size is 100cm*200cm lighting size in one piece without any joint . Larger size can be done by jointing several panels .
5. Angel Shine Advantages of EL
- Any size and shapes ,can make size larger than 100*200cm for indoor & outdoor .
High quality with long lifespan
Professional technicaion to creat attractive animation modes
CE.ROHS.SGS.FCC certification
Short Leadtime ,quick delivery
Competitive price at top quality ,phosphor and silver material are imported from Japan ,US .
Lightweight ,flexibility ,can be bent and rolled
24hours long quality testing before delivery
