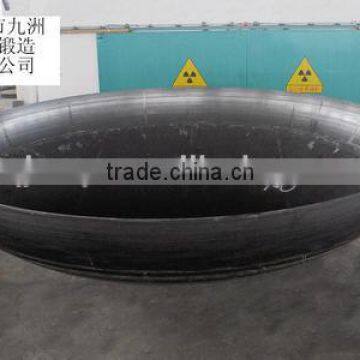

High Quality Steel Ellipsoidal Head for Sale
US$ 20 - 1,000
/ Piece
10 Pieces(Min. Order)
- Qingdao
- T/T
You May Like
Product Details
| Material | Carbon Steel | Technics | Forged | |
| Type | Flange | Place of Origin | Shandong, China | |
| Model Number | LQR000 | Brand Name | Luqiang | |
| Connection | Welding | Shape | Other | |
| Head Code | Other, round |
Product Description
.1.We own Asian unique production line which can make diameter of 12m heads and can supply OEM service .Besides we manufacture A3 head with high quality and competitive prices.
2.Standard:ISO9001:2008;GB/T25198-2010
3.Testing : non-destructive(UT,RT,MT,PT)
carbon sulphur analysis instrument
non-contact type temperature measuring apparatus
WE-60type omnipotent testing machine
examine the thickness appearance
4.Forming method:cold pressing,cold spinning,hot formed,punching
5.License:Manufacture License of Special Equipment People's Republic of China(A3 Head)
6.Application:Our different material and specification heads can be used in many fileds,such as petroleum,chemical industry,boiler,pressure vessels,railway transportation,metal structure,water supply facilities and aerospace engineering,etc.
7.Head's gradient as follows:
DN | Straight edge | gradient | Tolerance of total depth(height) |
| DN≤2000mm | h=25mm | outer:1.5mm inner:1.0mm | (-0.2~+0.6)%DN |
| DN≥2000mm | h=40mm | outer:2.5mm inner:1.5mm | (-0.2~+0.6)%DN |
| others | outer:6%h&≤5 inner:4%h&≤3 | (-0.2~+0.6)%DN |
8.Tolerance of groove angle and groove dimension ,groove surface roughness as follows:
| Items | Tolerance |
| groove angle | ±2.5° |
| groove dimension | ±1mm |
| groove surface roughness | no cracks,delamination,inclusions and other defects |
