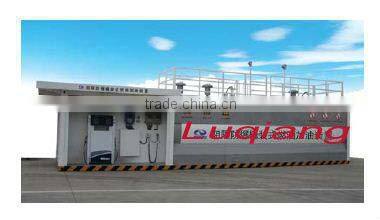

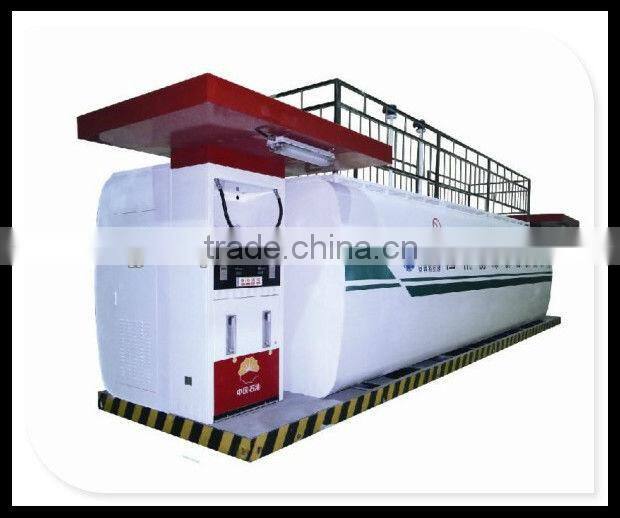

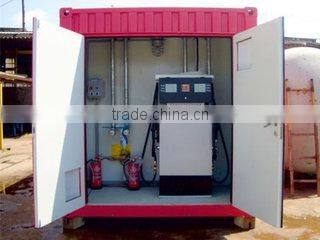

ISO Tank Containers Price for Diesel, Petrol and Gasoline

Name: ISO Tank Containers Price for Diesel, Petrol and Gasoline
Brand: LUQIANG-1
SKU: 129058917
Availability: InStock

US$ 1,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Capacity:

1000L--45000L

Place of Origin:

Shandong, China

Luqiang Energy Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Capacity 1000L--45000L

Place of Origin Shandong, China

Brand Name LUQIANG-1

Model Number LQRQ-ST

Dimension(L*W*H) as need

Weight as need

Certification ISO9001-2008

Warranty one year for free lifelong service

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Our products get ISO certification,We have high quality and rational price,our factory has trong technical force

Product Description

Model: YP1000/50-250;
Type: P Type, horizontal, double action, reciprocating piston;
Theoretical capacity: 1000Nm3/h;
Media: Desulfurized natural gas (main composition CH4);
Ambient work temperature: -15~+45°C;
Compression stage: 2 stages;
Suction status: 5MPa at temperature 0~35°C;
Outlet discharge pressure: 25Mpa at temperature ≤45°C or less than ambient temperature 15°C(afer cooling);
Piston reciprocating times: 11~13 times/minute;
Main oil pump type and constant power rate: bent axis axial variable pump(L7V117LV2.0RP00)
Constant power output: 28KW;
Constant power input: ≤35KW;
Oil pumpconstant power minimum adjustable pressure: 10.2MPa;
Hydraulic system maximum work pressure: 16.0MPa;
Oil pump maximum oil supply: 164L/min.;
Oil pump maximum oil supply: 127L/min.;
Driving mode: electric motor, direct coupling, by oil pump;
Electric motor model No.: Explosion-proof motor No. YB2-225M-4B35, 37KW, 1480rpm, Diibt4;
Oil lubrication mode: Oil free in cylinder and packing assembly;
Power rate for air cooler: cooling air 1.5KW, cooling hydraulic oil 2.2KW;
Control mode: PLC + Touch Screen+Soft Starter;
Cooling mode: Natural cooling for cylinder, air cooling for gas;
Installation mode: outdoor, skid mounted fixation;
Total weight of skid mounted unit: 7150KG;
Overall sizes of skid mounted container (LxWxH): 3350×2330×2700mm
