Home > Products > Chemical equipment > 20feet And 40feet Iso Tank Container Made in China

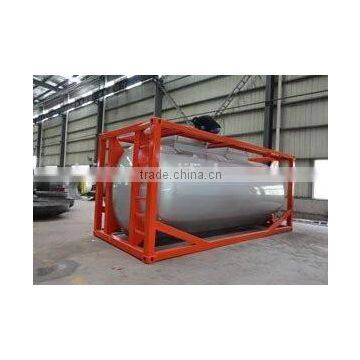

20feet And 40feet Iso Tank Container Made in China

FOB Price

US$ 9,000 - 12,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Capacity	10000L--50000L
Place of Origin	Shandong, China	Brand Name	Luqiang
Model Number	LQR201	Dimension(LWH)	Customerized
Weight	Vary	Certification	ISO9001:2008, BV
Warranty	5 Years	After-sales Service Provided	No overseas service provided

Product Description

NO.	CONTAINER DIMENTIONS	OIL TANK CAPACITY	OIL TANK DIMENSIONS(mm)	OIL TANK LAYERS	chamber/ oil type	THICKNESS
1·	20feet	15000L	φ2200*4200	single wall	single chamber	5mm
					double chambers	5mm
			φ2270*4270	double wall	single chamber	inside6,outside5
					double chambers	inside6,outside5
2·	40feet	30000L	φ2200*8300	single wall	single chamber	5mm
					double chambers	5mm
			φ2270*8370	double wall	single chamber	inside6,outside5
					double chambers	inside6,outside5
3. The container including:

Note: Customized to suit customer requirements .

Standard Specification

Model	Total volume (Liter)	Container inner dimension(mm)	Inside tank dimension(mm)	Total weight(ton)
20feet mobile fuel station	10,000	5895x2350x2390	4500x1500x1500	4.23
	15000	5895x2350x2390	4300x2200x2200	4.55
	16000	5895x2350x2390	4500x2200x2200	4.74
	20,000	5895x2350x2390	4500x2150x2150	4.93
40feet mobile fuel station	30,000	12029x2350x2390	6800x2250x2000	6.95
	36,000	12029x2350x2390	8150x2250x2000	7.25
	40,000	12029x2350x2390	8800x2280x2000	7.75
	50,000	12029x2350x2697	10500x2250x2150	8.39
	55000	12029x2350x2697	10500x2280x2300	9.35

(1.) Accessories details included:

1. 6 mm and 4mm steel inner tank (double wall tank)

2. Two fuel dispensers, oil guns, rotary joint and oil pipes.

3. Bottom loading system:

fast unloading connector with cover

detachable filter

Overflow proof valve

Drainage system

4. Support and tank anti-skid system

5. Emergency ventilation system (each compartment)

6. Vacuum pressure valve and the pipeline

7. Emergency cut-off valve

8. Siphon preventing valve

9. Adjustable pressure pump

10. Oil cavity

11. Fuel dispenser installed base

12. Explosion-proof hose and wiring

13. Spill-proof alarm

14. Tank manhole covers

15. The lifting rings (according to request)

16. Tank high solid base coating

17. Tank high quality finishing paint

18. Tank customized logos or labels

19. Liquid inlets and outlets

20.Leakage indicator

21.Control panel

22.Thermal insulating materials

23.Sight glass

24.Thermometer

25. CIP universal cleaning device

26.Static pressure transmitte

27. Liquid level meter
