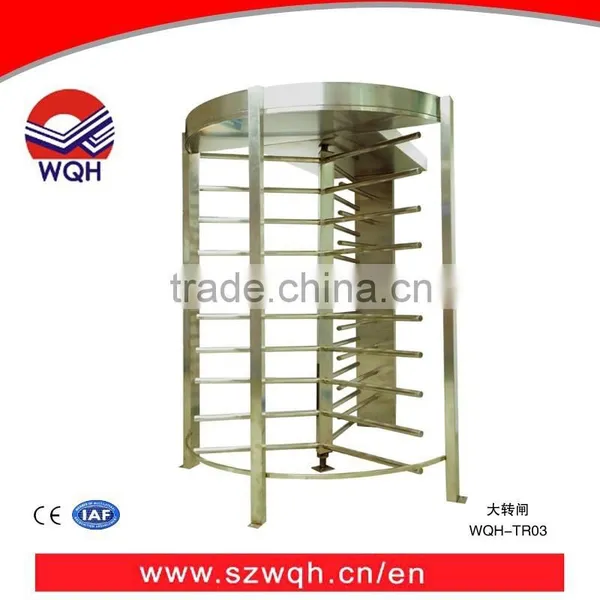

Intelligent full height turnstile
Technical data:
Name | Full Height Turnstile | Model | WQ-DZZ01 |
Housing Size | 1630x1500x2300mm | Passing speed | 30 persons/min |
Housing Material | 304 grade stainless steel | Working Voltage | AC220V±10V,50HZ |
Net Weight | 200kg | Motor voltage | 220V |
Gross Weight | 215kg | Rated Power | 80W |
Control type | IC/ID/Barcode control | Transmission | Sine Linkage |
Boom length | ≤700mm | Frequency | 50~60Hz |
Logic voltage | 12v | Working temperature | -45°C--+80°C |
Working mode | one directional or | Operating humidity | ≤90% non-condensing |
Communication Interface | RS485 | Operation life | ≥5 million times |
Product features
1 , Self-test and alarm system function, user-friendly maintenance and use, through the master board built-in button, the device can be set up, with all kinds of IC, ID cards, Barcode, magnetic cards
2, Can be extended to small trading system to achieve charging function
3 ,With a count function, at any time to control the number
4 ,Can be set to normally open, normally closed mode of operation to meet the regulatory requirements
5, Using infrared sensors, with illegal entry alarm, followed by the police, the normal people by preventing the clip
6 ,Having a uniform standard external electrical interface with other control devices mounted, easy integration, and through remote control and management of computer
7 ,With other smart card equipment composition Card
8 ,Supporting for direct access to the display channel current state of the pedestrians, guiding the proper and efficient pedestrian movement
9,Supporting the blackout floodgates in order to meet regulatory requirements
Application:
Full height turnstile mainly applied in airport, bus station, office building, parks, attractions, exhibition hall doors, residential, prisonetc.
