WTL Crane Monitoring Alarm System

Specifications

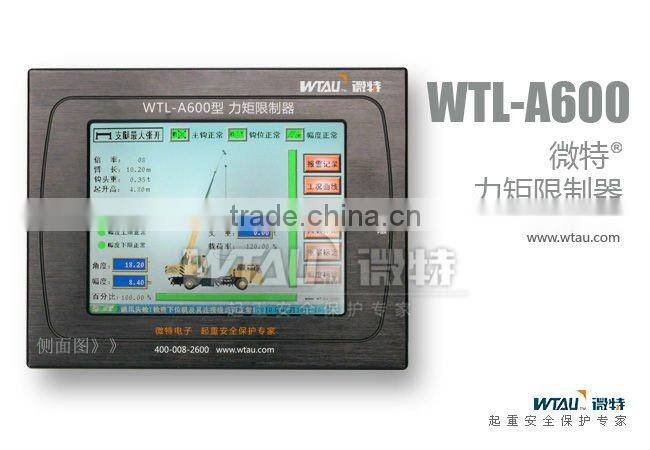

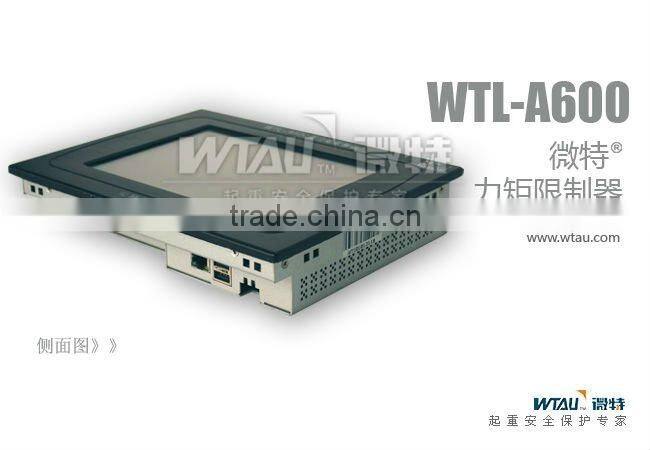

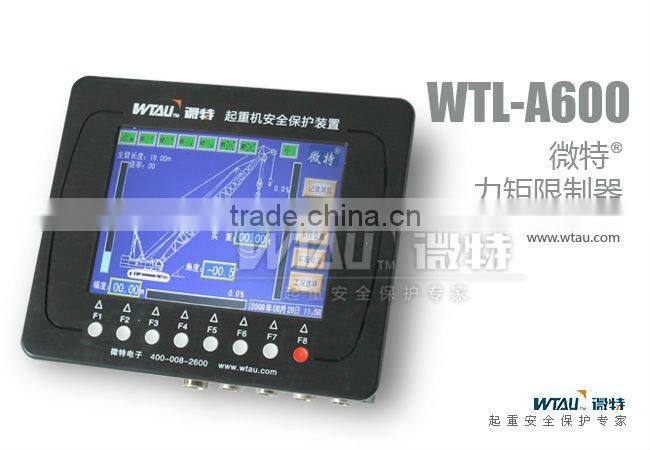

   WTL crane monitoring alarm system

WTL crane monitoring alarm system is applied in protecting the safety of hoisting machinery. Yichang WTAU electronic equipment co.,ltd. summarizes the experience of domestic and foreign crane torque limiter and adopts new techniques, the new devices to produce WTLcrane monitoring alarm system .

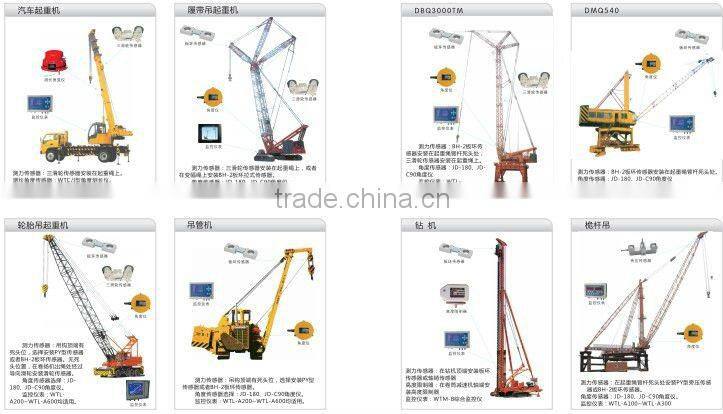

WTL crane monitoring alarm system is composed of display meter (including processor), signal box, angle meter or angle length meter(mainly for the changeable boom),pressure sensor, wind speed sensor and direction sensor, etc.

2.Main technical data for WTL crane monitoring alarm system

1.Working temperature: - 20 °C ~60 °C
2.Environment humidity : 95% (25 °C)
3.Work pattern: continuous
4.Vibration: acceleration≤5g(g: acceleration of gravity)

5.System integrated error: <5%

6.Power dissipation: <30W

7.Alarm volume: >60db
8.Action error: ≤3%
9.Protective level: IP65

3.Main functions for WTL crane monitoring alarm system

1.multilevel password protection function

2.Memory function at power-off moment, long continuous service

3.It has watchdog appliance and strong antijamming capability

4.Easy installation and debugging

5.High universality, applicable to different conditions.

WTL crane monitoring alarm system produced by Yichang WTAU electronic equipment co.,ltd.

achieves national advanced level and it is recognized for major scientific and technological achievements in Hubei province. Otherwise, it obtains Hubei scientific and technological achievements certificate.

WTL crane monitoring alarm system

Yichang WTAU Electronic Equipment Co. Ltd is a national high-tech enterprise which located in the “Hydropower capital”— Yichang. WTAU is committed to researching , developing and producing safety devices for crane cranes , automatic monitoring control systems , etc. WTAU puts the principle “make sure the lifting equipments are operated safely and reliably” as our duty and takes the high-tech as the core. WTAU has awarded many patents and major achievements of science and technology. The load moment indicator , lload indicator , Anemometer ,etc. which are researched independently  are widely used in electrical, chemical, steel, metallurgy, construction, ports, shipping and other industries.
