WTAU WTL crane lmi system for Kato crane

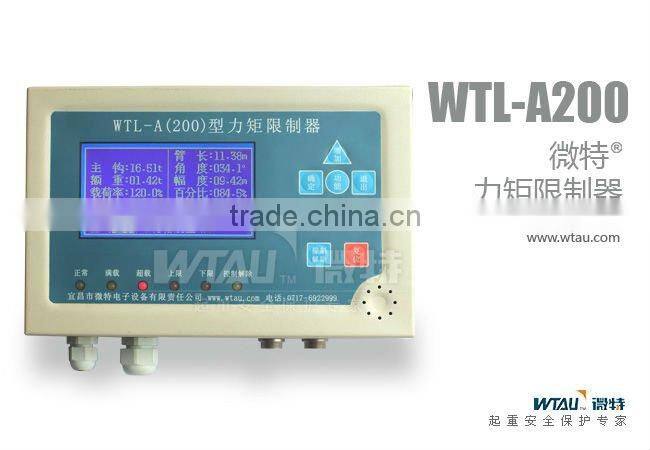

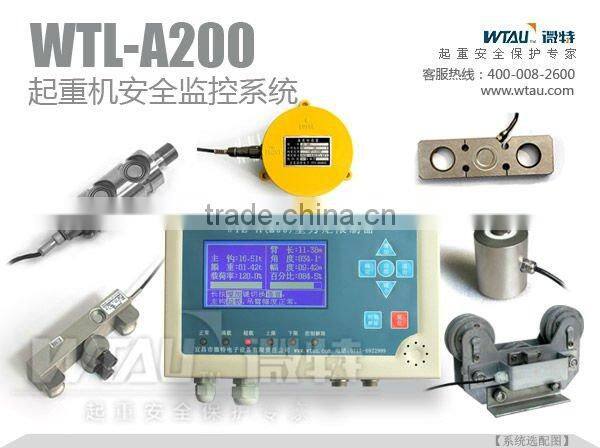

WTAU WTL crane lmi system for Kato crane is composed of sensor, operational amplifier, control actuator and overload indicator, etc. It integrate three functions into one, which are display, control and warning .When the crane lifting a load, the sensor is occurring deformation. In the meantime, convert weight of load into electrical signal, after operation and amplification, indicate the value of weight. When the load reaches 90% of rating, it gives an alarm; When value of weight surpass the rating, the power will be turn off at once.

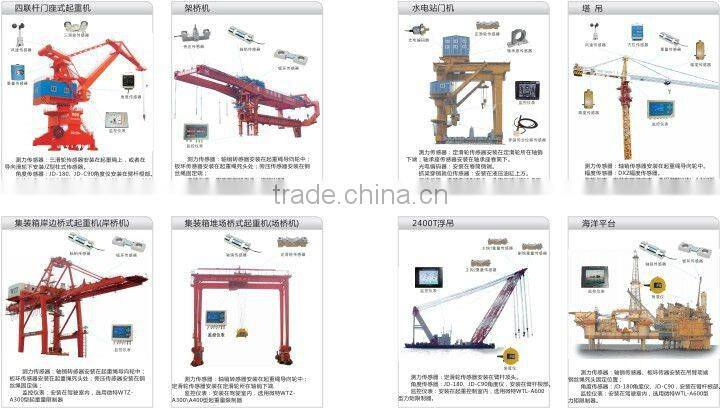

WTAU WTL crane lmi system for Kato crane is widely used in over head travelling crane, elevator and portal/tower crane.

Our company designs the crane lmi system for various types of cranes.

WTAU WTL crane lmi system for Kato crane has excellent characteristics, such as the high reliability, the strong antijamming ability, the quick survey speed, the measuring accuracy, the simple circuit, the low cost, easy to install and operate and so on.

Technical Data;

Weight Measurement Range: 0T~400T

Resolving Ability: 0.1T

Synthetic Errors: ≤5%F.S.;

Working Condition: -20°C~60°C

Relative Moisture under Working Condition: 90%RH(20°C)

Working Voltage: AC 220V ±25%

IP Grade: weight sensor with IP68; Monitor with IP65

  WTAU WTL crane lmi system for Kato crane

           WTAU WTL crane lmi system for Kato crane
