WTF-B100 vessel wind monitor1.Stable system
2.Easy to operate
3.Long service life
4.1 year quality
WTF-B100 vessel wind monitor
WTF-B100 vessel wind monitor are used in the meteorological observatory (station), chemical industry, power station, Industrial and mining establishment to record the wind's traveling schedule and observe instantaneous wind speed installment. The indicator can realize the equipment wind speed instruction digitally and automatically.

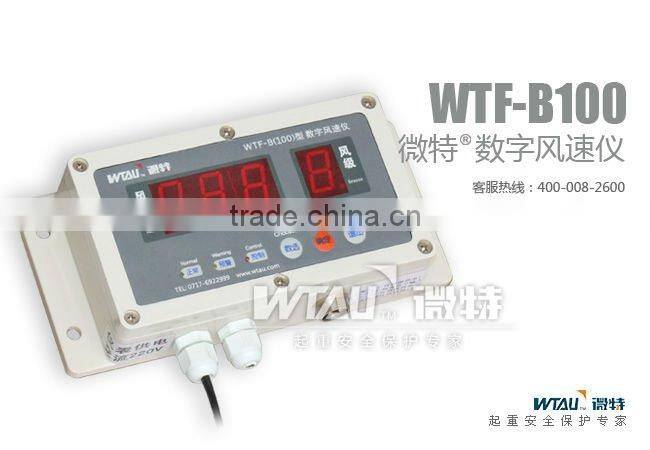

And it is essential sophisticated equipment for some modern equipment. Micro-anemometer is composed with STC12C2052 single-chip and its related periphery line, the display screen adopts two windows high brightness eight nixie tubes which can display currently actual wind speed and wind scale separately.
WTF-B100 vessel wind monitor

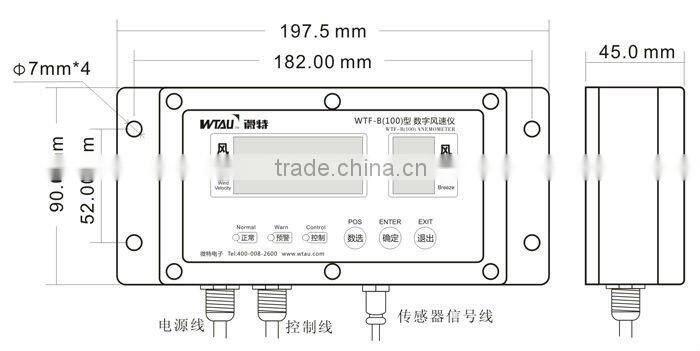

Profile size |
197.5mm x 90mm x 45mm |
Work Power Supply |
AC220V or DC24V |

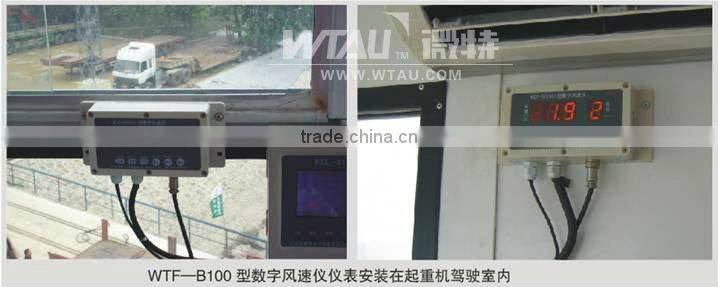

Installation way |
Wall-mounted |
Signal input |
TTL voltage impulse |

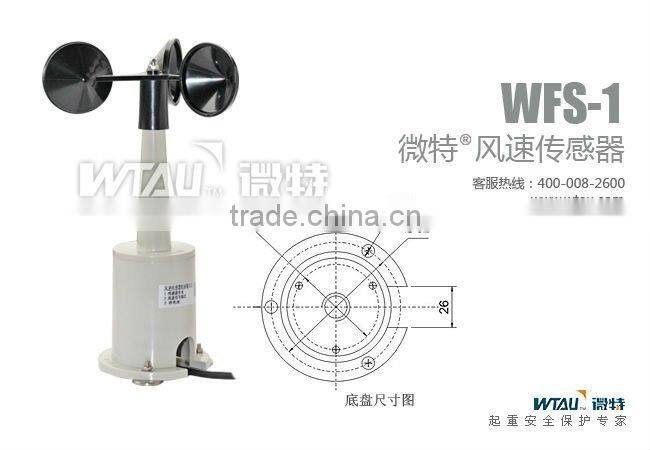

WFS-1 type speed sensor’s parameter
Work power supply |
DC12V |
DC24V |
Signal output |
30 impulse per loop |
4~20mA |
Measure range |
0~60m/s |
|
Resolution rate |
0.1m/s |
|
Starting wind speed |
<0.8m/s |
|
Measure error |
±(0.5+0.05v)m/s V= wind measure value |
|
Work condition |
-30°C~+60°C |
|

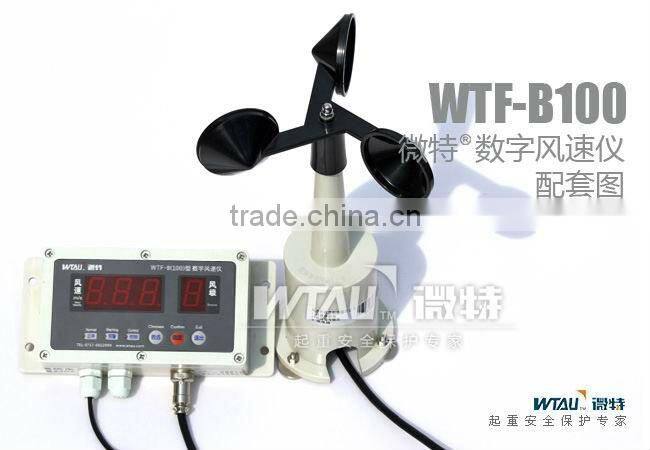

One whole set of WTF-B100 vessel wind monitor listed as follows;
- WTF Intelligent Display

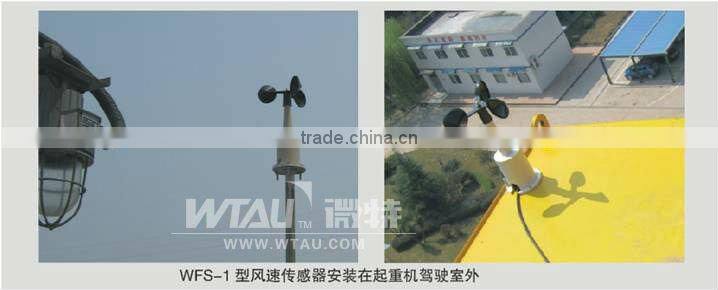

- WFS-1 Wind Sensor
- cable (the length depends on your requests)
Yichang WTAU Electronic Equipment Co. Ltd is a national high-tech enterprise which located in the “Hydropower capital”— Yichang. WTAU is committed to researching , developing and producing safety devices for crane cranes , automatic monitoring control systems , etc. WTAU puts the principle “make sure the lifting equipments are operated safely and reliably” as our duty and takes the high-tech as the core. WTAU has awarded many patents and major achievements of science and technology. The load moment indicator, Anemometer ,etc. which are researched independently are widely used in electrical, chemical, steel, metallurgy, construction, ports, shipping and other industries.
ANY INQUIRY ,PLEASE FEEL FREE TO CONTACT US.^_^
