Crane A2B Anti-two Block Limit Switch

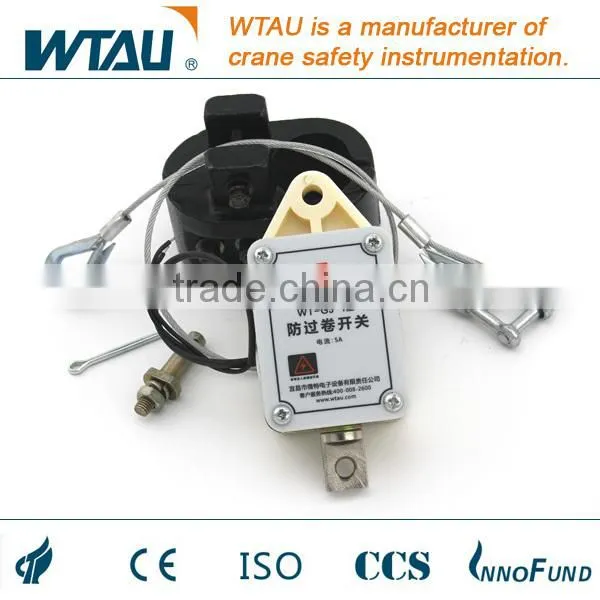

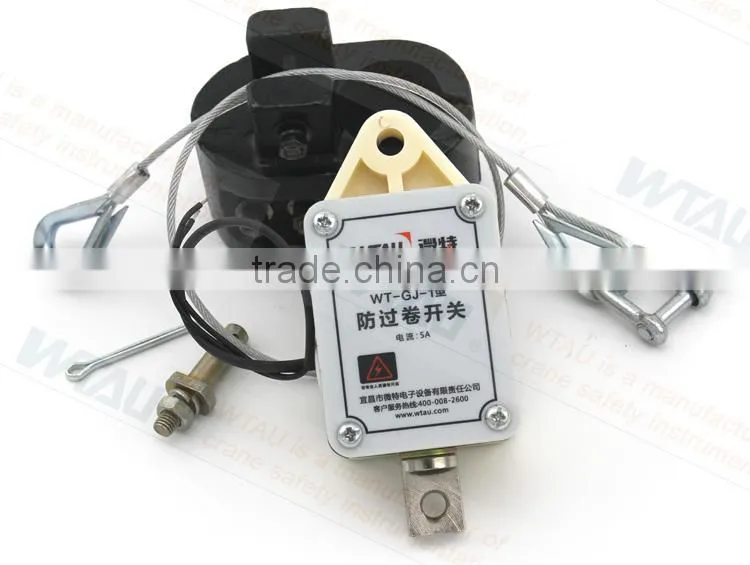

Crane A2B Anti-two Block Limit Switch photo-1

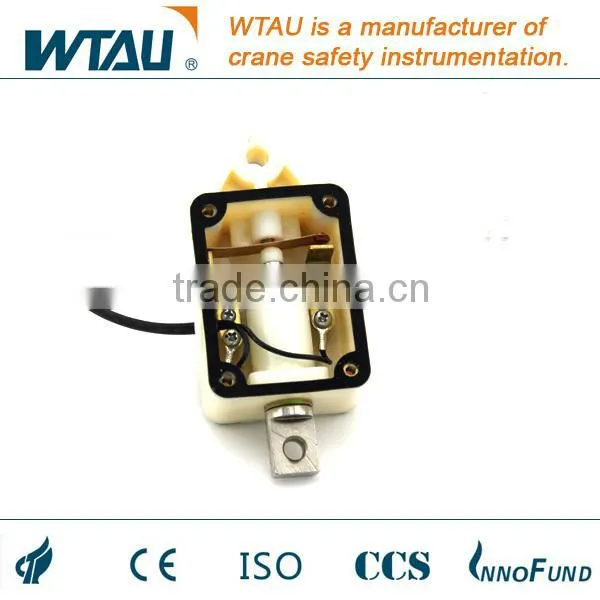

Crane A2B Anti-two Block Limit Switch photo-2

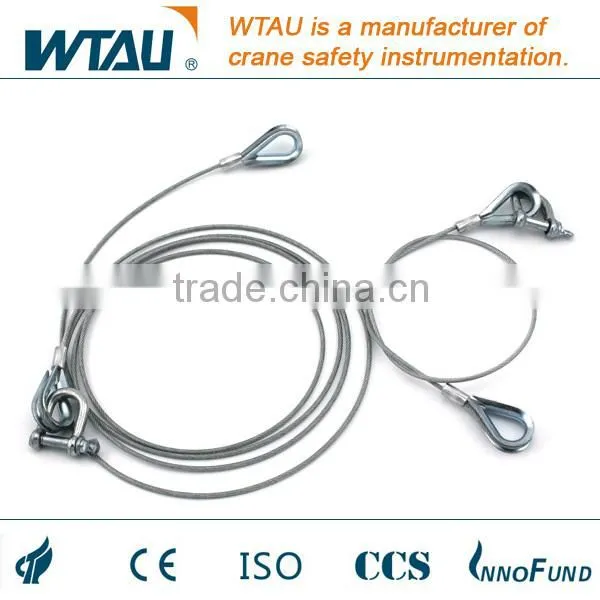

Crane A2B Anti-two Block Limit Switch photo-3

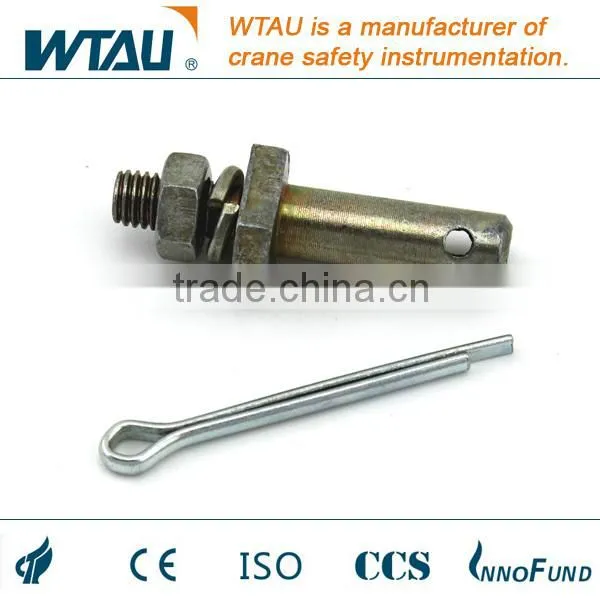

Crane A2B Anti-two Block Limit Switch photo-4

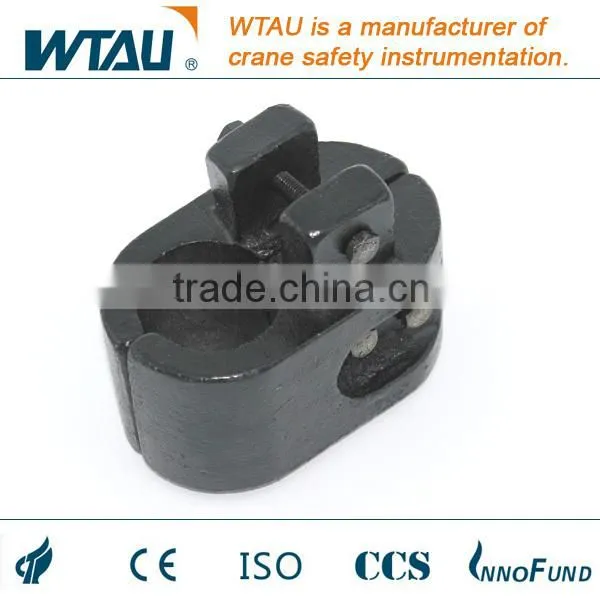

Crane A2B Anti-two Block Limit Switch photo-5
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
WTAU
Model Number:
GJ
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hubei, China
Brand Name WTAU
Model Number GJ

Crane A2B anti-two block limit switch





Description

GJ anti-two block switch(A2B switch) is used for lifting wire rope anti-volume limit an electrical automatic protection switch. It is an appropriate weight of the hammer supporting the use of hook up and down movement to hold up or disconnect or turn-on switch, put down the hammer to achieve the purpose of automatically cut off the hoist power supply connected braking system to limit rope over volume, and reach hook in the purpose of a certain height within the lift.



GJ anti-two block switch(A2B switch) , please take a look at the following main models:
GJ-1 :to reach the peak normally open (ie, hook across the boom, loop disconnect)

GJ-3 :to reach the peak normally closed (hook met crane, closed loop)


 GJ anti-two block switch(A2B switch) Technical Parameters;

1, applies to DC and AC voltage 12 ~ 380V; Rated current: 5A.
2, rated current: 10A

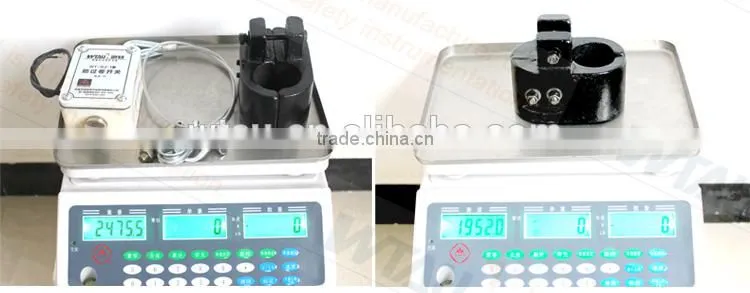

3, supporting the external hammer weight: ≥ 1.7kg.
