Multi Purpose Gardenning Machine DY620

Taian Dongyue Carrying Machinery Co., Ltd.
Multi Purpose Gardenning Machine DY620 thumbnail-1
Multi Purpose Gardenning Machine DY620 photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TAIAN
Model Number:
DY620
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name TAIAN
Model Number DY620
Place of Origin Shandong, China
Type Mini Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 2195x980x2200mm
Rated Load 500kg
Certification CE
Warranty one year or 1000 working hours whichever comes first
After-sales Service Provided Engineers available to service machinery overseas

multi purpose gardenning machine DY620

Features -- TAIAN Wheel Loader DY620

Our DY620 is a multifunctional machine.  It adopts european standard quick coupling system,

which enable the customer use hundreds of different attachments.



It is hydrostatic four wheel drive machine, has four independent hydraulic wheel motor.



Compared with other same size machines, its telescopic boom which can reach 2750mm widely

increase its working scope.



Special articulated structure with seat in front position helps it gain a much smaller turning radius

than other same size machine.

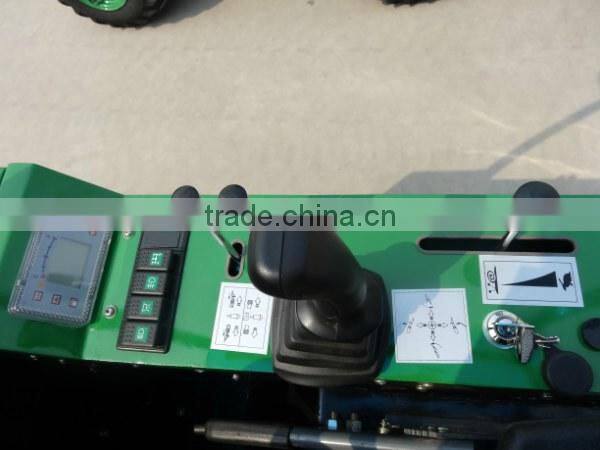

It's control is very simple by levels and buttons. The pressure testing connector on chassis, and all

relative warning lights and sounds also greatly simplified the maintenance.

Detailed specifications as below. Welcome to visit our factory to test it yourself, we are confident that you'll fall in love with it!



Parameter -- TAIAN Wheel Loader DY620

Model

DY620

Max. length

2195 mm

Max. width

980 mm

Max. height

2320 mm

Max. reach(boom extended)

3000mm

Max. reach(boom retracted)

2480mm

Bucket capacity

300L

Rated loading capacity

500kg

Tipping load

800kg

Min. turning radius

1980mm

Turning angle

400

Speed

10 km/h

Weight

1100 kg

Standard tire

23X8.5-12

Tire pressure

2.8 bar

Oil tank capacity

35L

Pressure

190bar

Working oil flow

16.5L/min x 2

Tracking oil flow

50L/min

Oil model(mineral oil)

L-HL46

Engine brand

Perkins 403D-07

Number of cylinder

4

Cooling system

Water cooling

Rated power

12.5Kw

Rotation speed

2800 r/min

Fuel tank capacity

18L

Battery capacity

55Ah

Voltage

12v

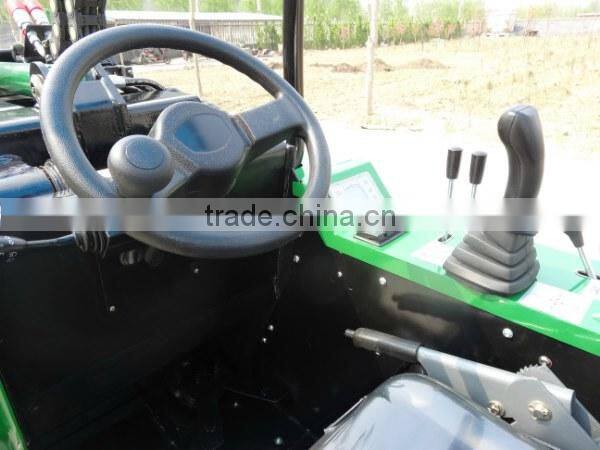

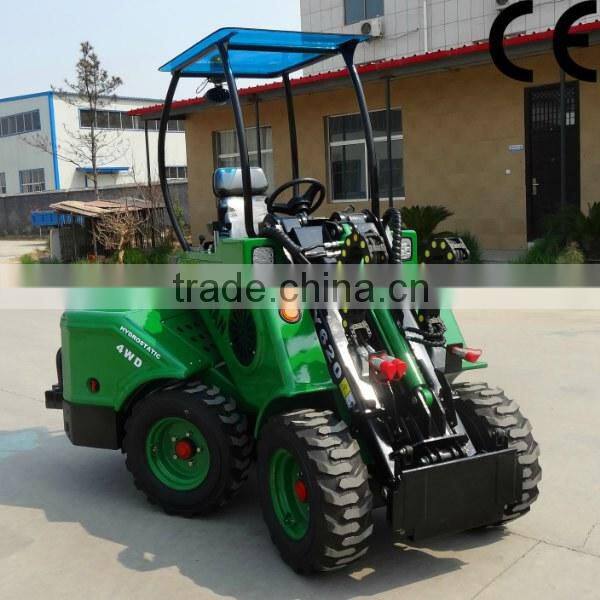

Photos -- TAIAN Wheel Loader DY620

   multi purpose gardenning machine DY620multi purpose gardenning machine DY620multi purpose gardenning machine DY620



Any questions about the machinery ,Pls feel free to contact with me.It will be

always at your service.
