Specifications
farming telescopic loader dy8401.Hydrostatic four wheel drive,
2.four independent hydraulic wheel motor.
3.World famous Per

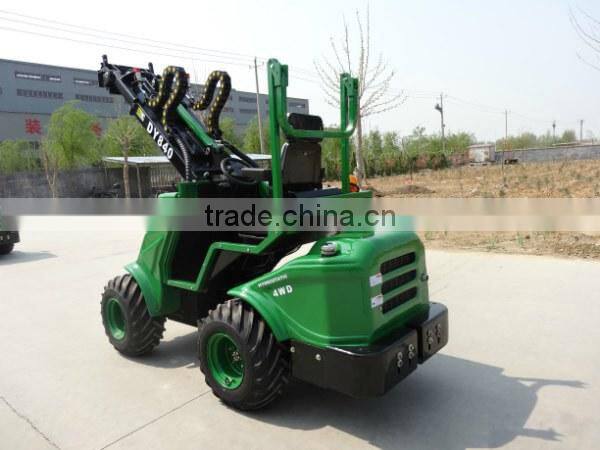

farming telescopic loader dy840
Product description
Safety
ROPS Cabin or canopy can protect the driver in any case if there’s a tilt danger.
Top rotating warning light give an eye-catching signals to people around.
Warning signals for maintenance and operating protect the machine from over-use.
Reversing beeper and lights, traffic lights, rear and front working lights well protects
people around and also the operator.
Power
All models have separately four hydraulic wheel motor, they are real four wheel drive
hydrostatic dive.
All machines adopts world famous Kubota/Perkins which guarantees the quality and
meanwhile more powerful.
Maintenance
Thanks to the pressure test connector on the chassis of our machine, it saves a lot
of trouble in any case there’s a problem happen on the machine.

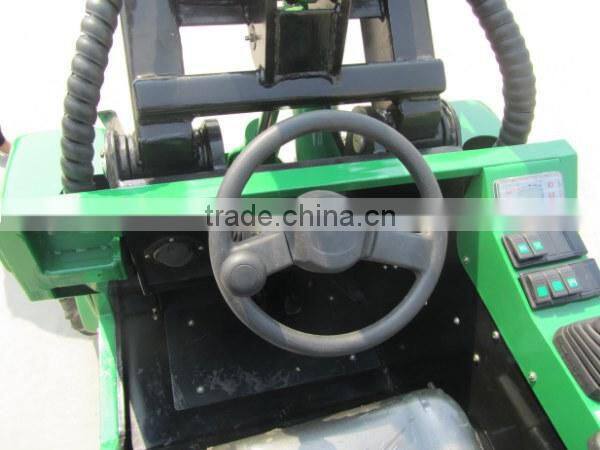

The display board indicates the working hours, engine speed, and whenever there’s
over heating, lack of oil, etc. Happens, the relative lights will be on to remind the operator.
The operator can know the machine’s condition just by a glance.
Advantage:
It is a machine designed for the maintenance of gardens and lawn care. Purposely
developed for people who want to be completely independent and efficient.
Usage
The compact size and the telescopic boon widely increase its usage.
Front and optional rear hydraulic output together with the quick coupling system makes
it the transformers of machinery.
With all the above features, our loaders can be used wherever needs a machine, farming,
landscaping, construction, estate and property maintenance, etc.
Model | DY840 |
Max. length | 2600mm |
Max. width mm | 1240mm |
| Max. height | 2330mm |
| Rated loading capacity | 850kg |
| Max. loading capacity | 1250kg |
Bucket capacity | 0.45cbm |
Turning angle | 450 |
Speed km/h | 12 |
Weight without counterweight kg | 1600 |
Standard tire | 26X12-12 |
Tire pressure bar | 2.8 |
Oil tank capacity L | 40 |
Pressure bar | 190 |
Oil model(mineral oil) | L-HL46 |
Number of cylinder | 4 |
Cooling systerm | Water cooling |
Rated power Kw | 24.5 |
Rotation speed r/min | 2800 |
Fuel tank capacity L | 23 |
Battery capacity Ah | 60 |
Voltage V | 12 |
