Steel Factory Din 1.2713 5crNIMo Tin Free Steel

Name: Steel Factory Din 1.2713 5crNIMo Tin Free Steel
Brand: RENTAI
SKU: 129043787
Availability: InStock

US$ 490 - 800 MOQ: 25 Metric Tons

Key Specifications

Standard:

AISI, ASTM, BS, DIN, GB, JIS

Grade:

Width:

800-1050mm

Qian'an Rentai Metal Products Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Standard AISI, ASTM, BS, DIN, GB, JIS

Grade MR

Width 800-1050mm

Thickness 0.15-0.5mm

Hardness T3

Place of Origin Hebei, China

Brand Name RENTAI

Model Number KRX3006

Type Tinplate Coil

Application Food box

Product Description

Kunry steel Tinplate

1.Reference standard:GB2520-2000,JISG3303-2002and DINEN10202-2001

2.Material:MR,SPCC

3.Thickness:available:0.15mmto0.50mm

4.Width:available:600mmto1010mm

5.Temper grade:T1-T5,DR8-DR10,BAandCAboth.

6. Tin coating: ordinary 2.8g/2.8g, 5.6g/5.6g, We also can produce according to customers' requests

7. Coil diameter: ID 420/ 508mm, OD from 1,000 to 1,250m

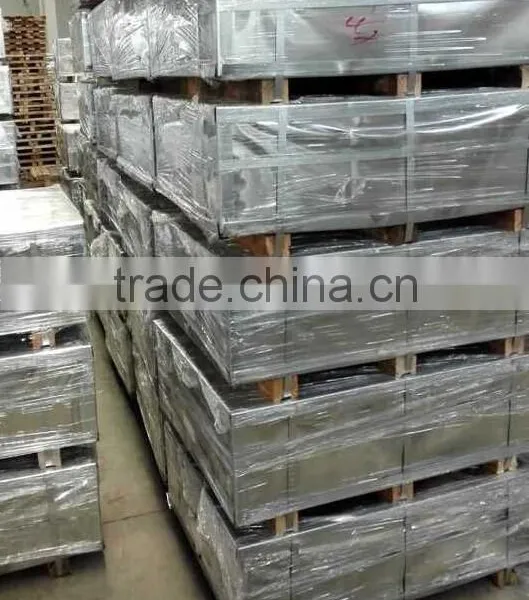

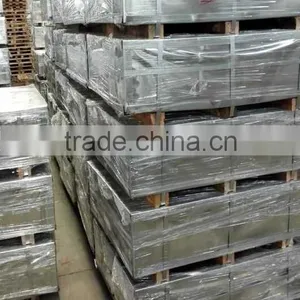

8. Package: Seaworthy Standard with wooden pallet

Hardness Of Tinplate

Hardness level	Target thickness	Use
T-1	49±3	Cans, nozzles, spouts and other applications involving deep drawing that requires large flexibility
T-2	53±3	Rings and plugs ,shallow drawn, items that require moderate draw ability and some stiffness
T-2.5	55±3	Battery can bodies, items that require the draw ability of T-2 in combination with the stiffness of T-3 for general use
T-3	57±3	Can ends and bodies, proper stiffness is imported to prevent buckling for general uses
T-4	61±3	Crown caps and small screw closures that require comparatively large stiffness
T-5	65±3	Can ends, bodies for non corrosive products and other applications that require excellent buckling resistance
DR-8	73	Applicable to the requirements of certain rigidity strength beer ,carbonated beverage tank body and the tank

Surface Finish

Code	Classification	Specific Finishes
B	Bright Finish	A luster surface provided by a flow-brightened tin coating on a smoothly grindstone finished steel base.
R	Stone Finish	A luster surface provided by a flow-brightened tin coating on a steel base characterized by a directional grindstone pattern.
S	Silver Finish	A luster surface provided by a flow-brightened tin coating on a coarse dull finish steel base.
M	Matte Finish	A dull surface provided by an unmelted coating generally on dull finished steel base.
