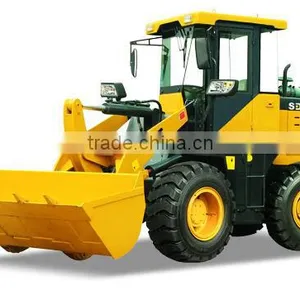

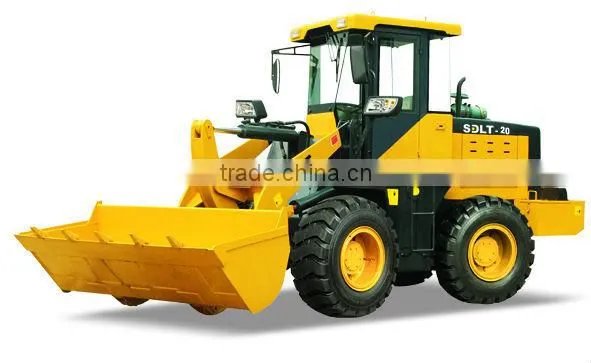

Articulated wheel loader ZL20:
Articulated loader ZL20 Main Features
-Can choose different brands engine: YUCHAI brand, CUMMINS brand, PERKINS brand and so on;
-Fully hydrostatic transmission technology, simple structure, reliable performance, easy operation and maintenance;
-Skew axis plunger piston variable
-displacement motor
-compound transducer and prior steering technology, saves lots of energy;
- Hydraulic oil radiator, controls the heat balance of hydraulic system, guarantees regular work;
-Engineering axle with the hub reduction gear, has powerful diving force, Good performance on brake system.
-Bucket articulated points take sealed, lubricated, dust
-proof layers, which owns good durability;
-Luxury cabin, widening horizon; adjust independent panel, adjustable seat, radio, can choose the heater, aircondition and so on
-Joystick control and hydraulic quick hitch for choice
| Model | ZL20 |
| Engine model Motor | 4BTA3.9-C100 |
| Engine power | 75 KW |
| capacity of bucket | 1.2 m³ |
| Rated loader | 2000 kg |
| Lifting time | ≤ 4.8 s |
| Time of three motions | ≤ 9.8 s |
| Running speed | 0 ~22 km/h |
| Braking speed | ≤ 5000mm |
| Min. turning radius | 4200 mm |
| Max. dumping height | 3000 mm |
| Min.dumping distance | 1100 mm |
| Working weight | 5600 kg |
| Wheelbase | 1450mm |
| Size(LxWxH ) | 6200 x 2000 x 2800 mm |
| Tyre specification | 16/70-20 |
| Type of power shift |
Hydrostatic or torque |
if you are interested in this product, please contact Steven.
