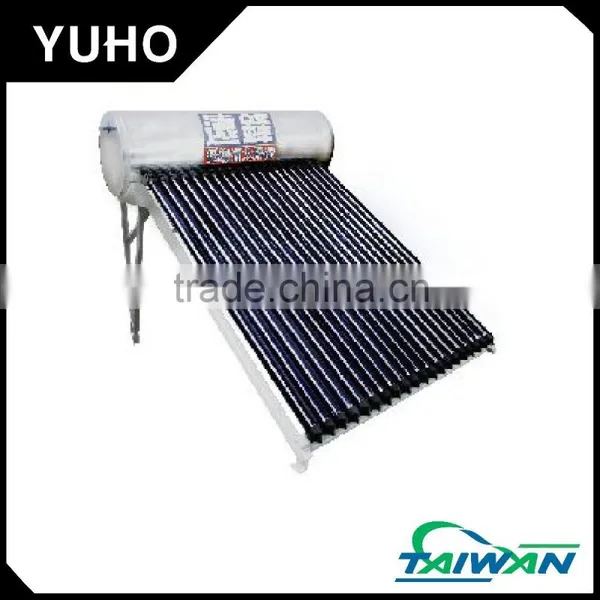

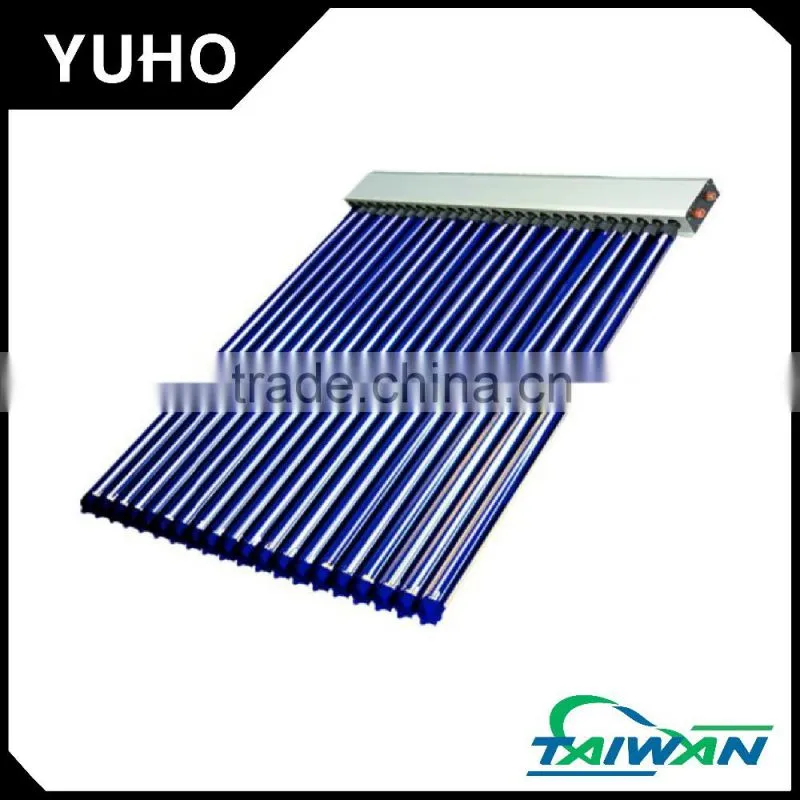

Heat pipe vacuum tube solar water heater
1) Aluminum alloy manifold and mounting frame
2) Heat pipe vacuum tube high efficiency transfer
3) Pressurized design, Max. Operation pressure 5kg
4) Made in Taiwan
Heat pipe vacuum tube solar water heater specification
| Vacuum tube | 30 pcs |
| Thermal collector | |
| Absorber | heat pipe vacuum tube |
| Absorption | ≥0.86% |
| Emission | ≤0.08% |
| Coating | AL/AL-ALN; CU/SS-ALN |
| Manifold | |
| Material | Copper |
| Casing | Aluminum |
| Connection | 3/4" |
| Pressure Resistance | 7 kg |
| Evacuated tube | |
| Diameter | Ø58 mm |
| Length | 1700mm |
| Material | High Boron Silicon Glass 3.3 |
| Thickness | 1.6~2.0mm |
| Dimension | 2160 X 1950 X 135 mm |
| Antifreeze: |
Antifreeze liquid refers to the local relevant standard. Leng |
Heat pipe vacuum tube solar thermal collector
YUHO is a Taiwan solar water heater manufacturer produces and distributes high quality MADE IN TAIWAN products all over the world. All of our products are pressurized and can be used both domestically and industrially. With our advanced R&D ability and 15 years service experiences, we are the only manufacturer in Taiwan who can provide the large commercial solar water heater system solution. Additionally, our products have already past all tests, and get the solar keymark ( Europe ) and the SRCC ( U.S.A.) certificate.

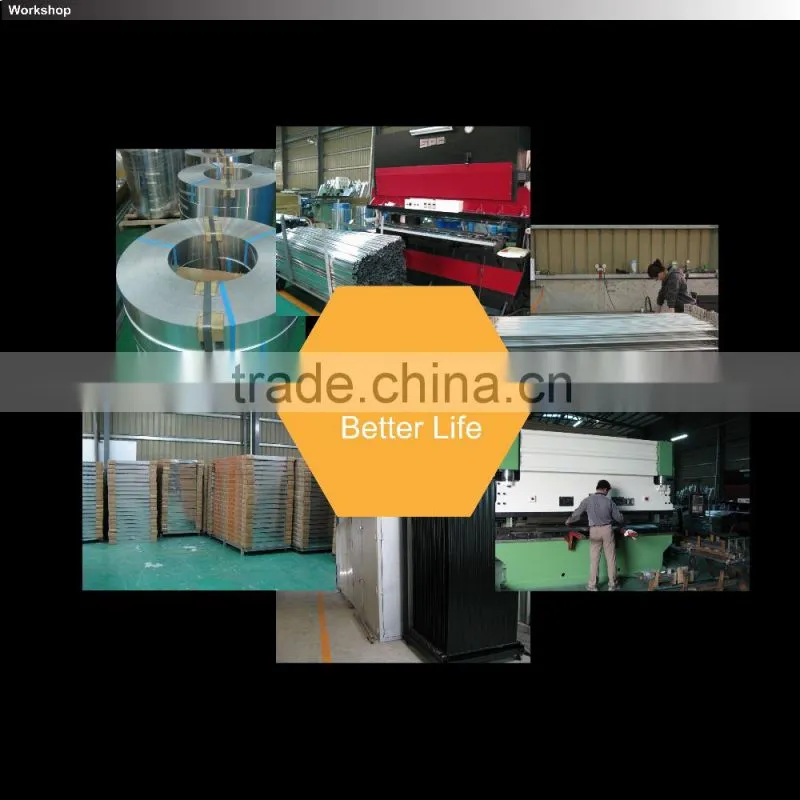

YUHO has two production lines.

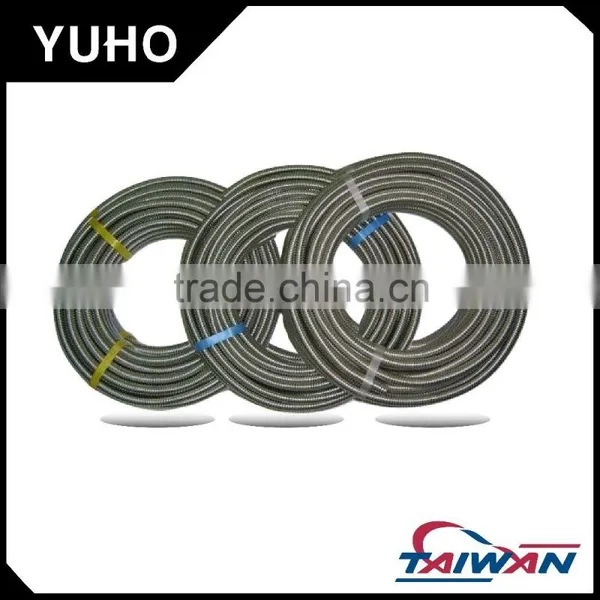

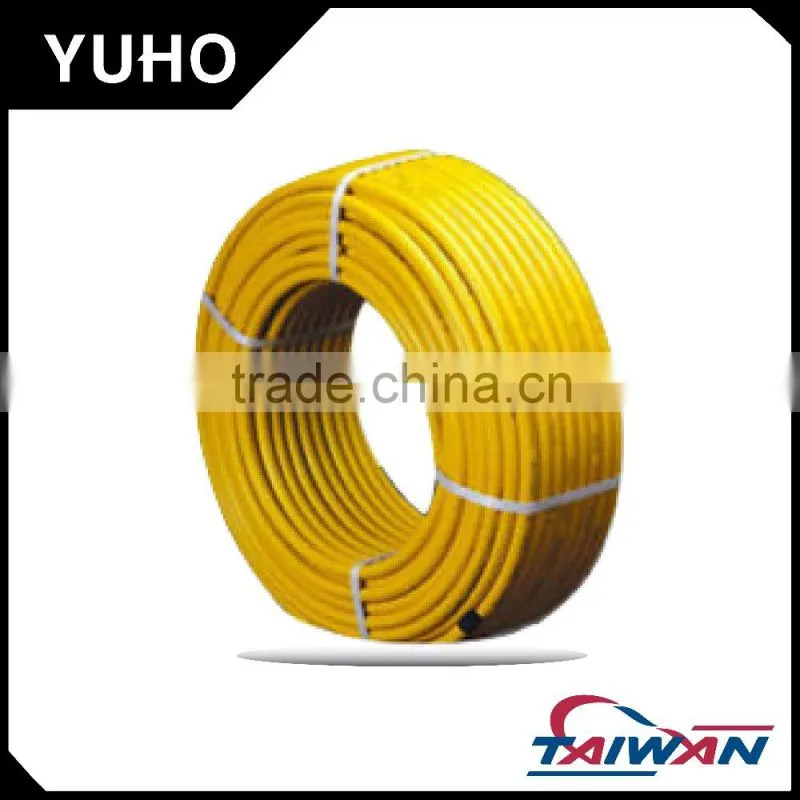

One is [solar water heater], the other is [corrugated flexible metal hose and pipe].

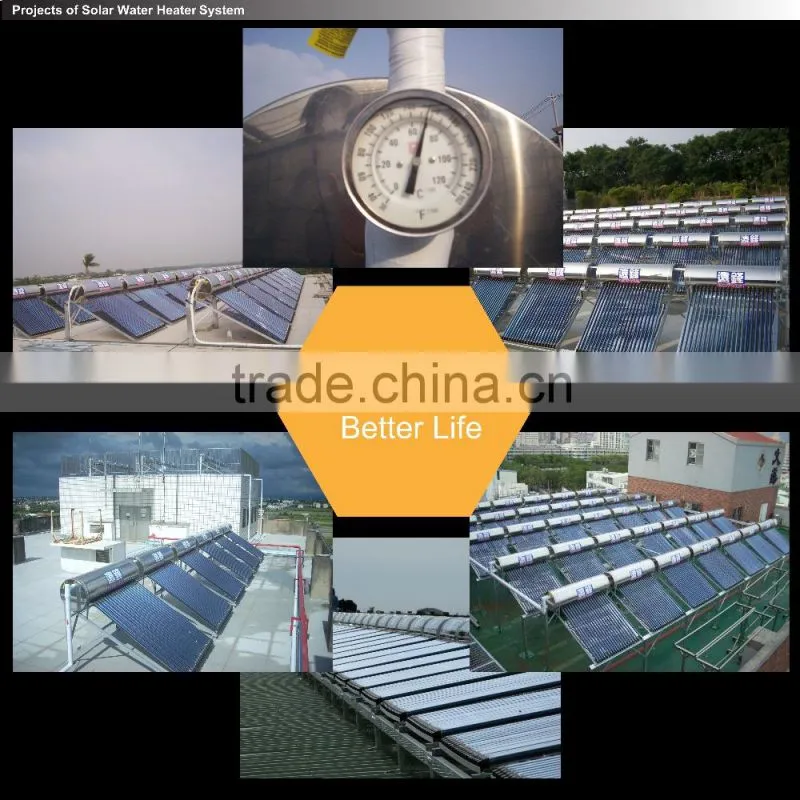

Projects of solar water heater system

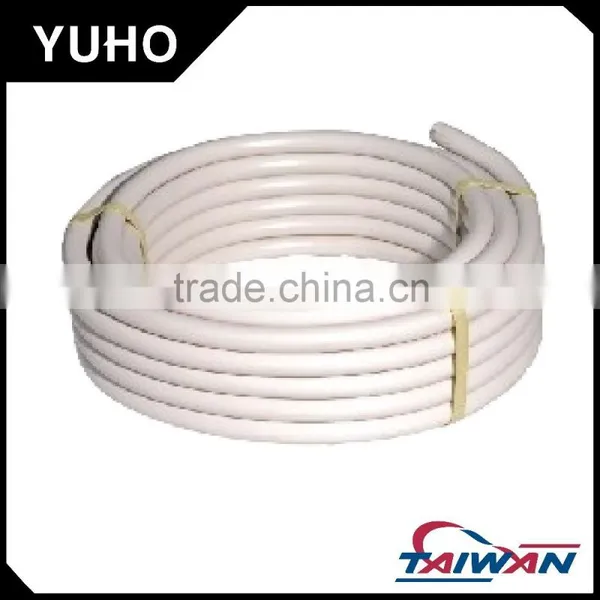

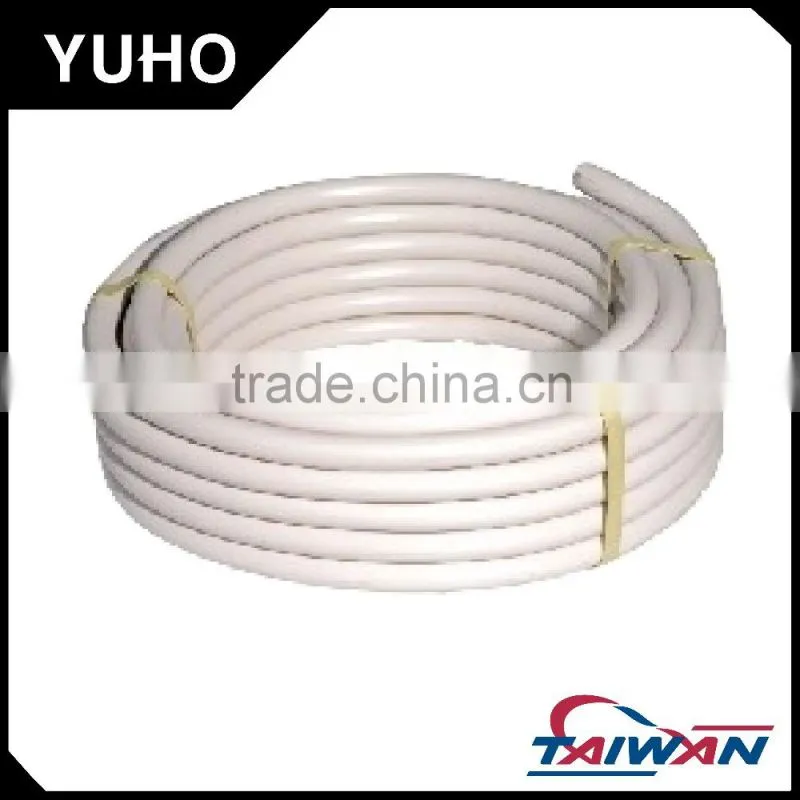

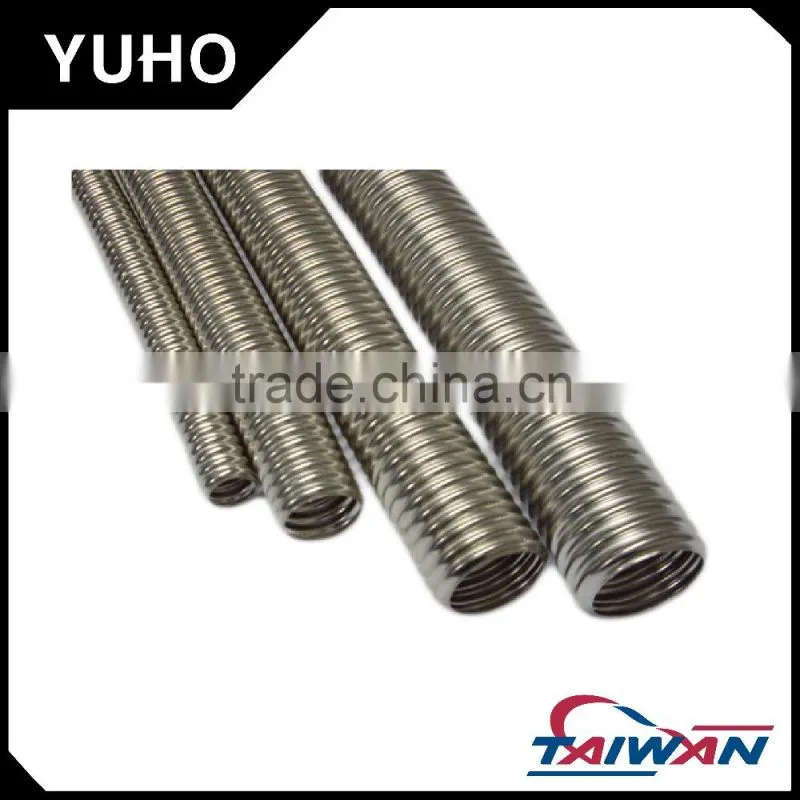

YOUR HOME TECH., LTD is professional Corrugated Stainless Steel Tube, Flex Metal hose, Insulated Solar Hose,
Water Connection Hose, Fan Coil Connection Hose, Gas Extensible Flexible Metal Hose, Pipe Gas, Sprinkler Hose
and Connection Set, Spiral Hose, soalr water heater and solar thermal collector in Taiwan Since 2000.
| Q : Are youmanufactuer or trader ? |
| A : YUHO is a professional manufacturer for more than 10 years in Taiwan. |
| Q : Is it made in Taiwan ? |
| A : yes, 100% made in Taiwan with high quality control process. |
| Q: How can I get to your factory ? |
| A : The factory is located in the middle of Taiwan. High speed train from Taipei to our city takes around one hour. We will pick you up from the chaiyi station. Websit of high speed rail .tw/en/ |
| Q : Do you have office in Taipei ? |
| A : NO, We are manufacturer and wellcome to visit our factory. |
| Q : Can I get a sample ? |
| A : yes, we provide 30cm pipe sample for you to check the quality. |
| Q : Can I order customized tube? |
| A : yes, we do customized. We will need detail drawing, photo and sample from you. |
