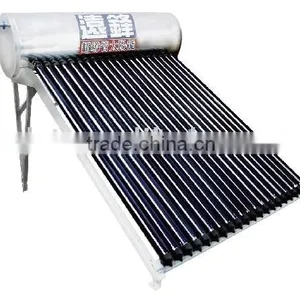

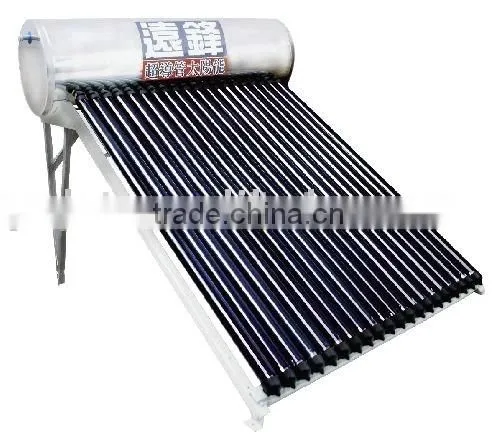

Help CenterYUHO Hot Sale Heat Pipe Solar Water Heater Tube
Related Products
-
Mini Split Balcony Pressurized Heat Pipe Solar Water HeaterUS$ 300 - 800MOQ: 100 Sets -
Solar Water Heater PartUS$ 100 - 500MOQ: 100 Sets
-
Heat Pipe Solar Water HeaterUS$ 500 - 1,000MOQ: 100 Sets
-
Vacuum Tube Solar Water HeaterUS$ 500 - 800MOQ: 100 Sets
-
20 Vacuum Tubes Solar Water HeaterNegotiableMOQ: 100 Sets
Solar tube
| Vacuum tube | 15 pcs |
| Thermal collector | |
| Absorber | heat pipe vacuum tube |
| Absorption | ≥0.86% |
| Emission | ≤0.08% |
| Coating | AL/AL-ALN; CU/SS-ALN |
| Tank | |
| Volume | 120 Liter |
| Inner |
Stainless Steel 304 thickness 1.2mm |
| Outer | Stainless Steel 304 |
| Insulation | 50mm PU foam |
| Connection | 3/4" |
| Pressure resistance | 7kg |
| Evacuated tube | |
| Diameter | Ø58 mm |
| Length | 1700mm |
| Material | High Boron Silicon Glass 3.3 |
| Thickness | 1.6~2.0mm |
| Frame | Galvanized steel |
YUHO is a Taiwan solar water heater manufacturer produces and distributes high quality MADE IN TAIWAN products all over the world. All of our products are pressurized and can be used both domestically and industrially. With our advanced R&D ability and 15 years service experiences, we are the only manufacturer in Taiwan who can provide the large commercial solar water heater system solution. Additionally, our products have already past all tests, and get the solar keymark ( Europe ) and the SRCC ( U.S.A.) certificate.
- Material : Stainless steel 304 / 316L
- Outer diamter : 16.1 / 18 / 20 / 25.6 / 31.7 / 38.5 mm
- Wall thicknes : 0.22~0.25mm
- Length : 20 ~50 M (customized)
- Heat treatment (optional)
- Packing : plastic bags or carton
- Application : water / gas

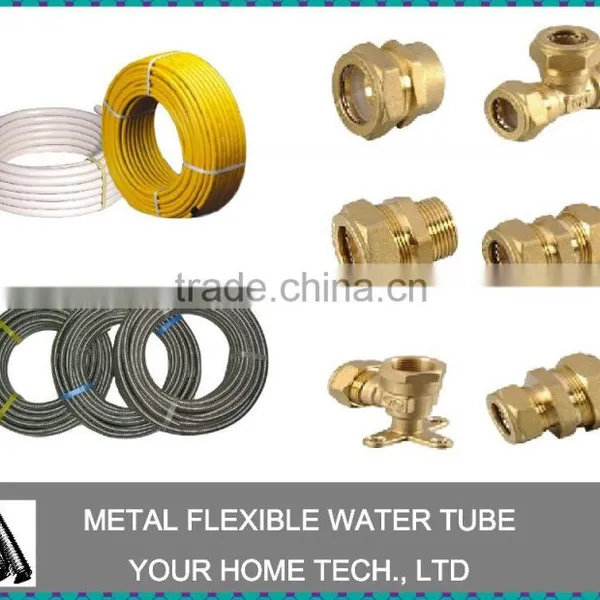

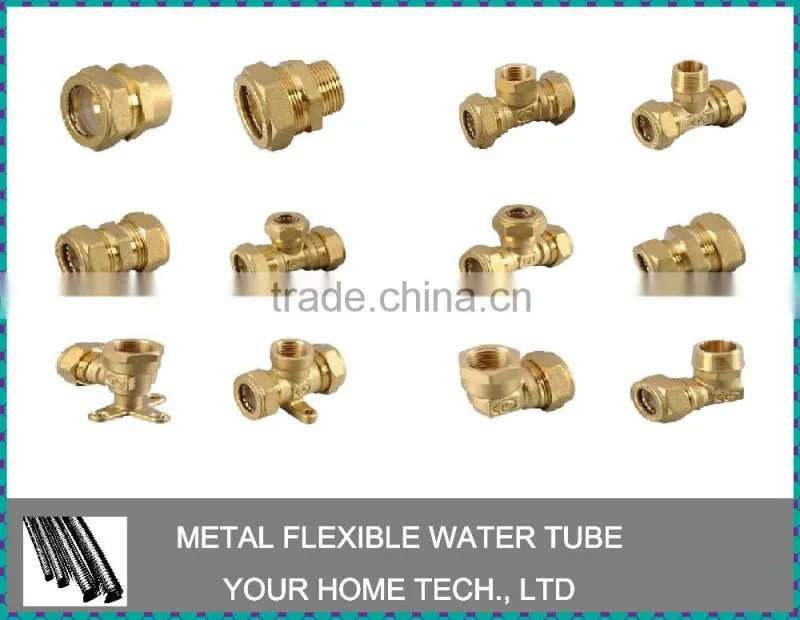

Brass fitting parts for stainless steel 304 corrugated pipe
- Grade C3771 / 58-1 / 59-1 / C3064
- Size : 15A / 20A / 25A / 32A
- Thread : 1/2" / 3/4" / 1" ( Internal & External )
YUHO is a professional manufactuer as below;
1) Heat pipe vacuum tube solar water heater ( 150 / 200 / 300 Liter )

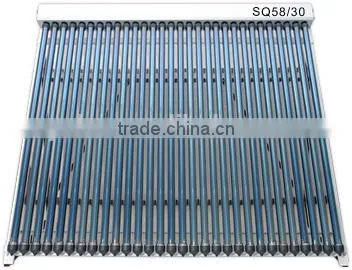

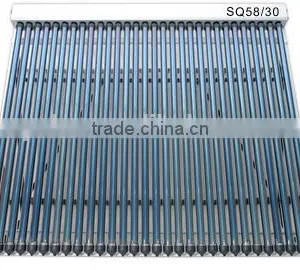

2) Heat pipe vacuum tube solar collector
3) Flat plate solar water heater ( 150 / 200 / 300 / 400 / 500 Liter )
4) Flat plate solar collector ( Solar keymark and SRCC approved )
5) Stainless steel 304 / 316L corrugated pipe
6) Brass fitting parts of SS corrugated pipe

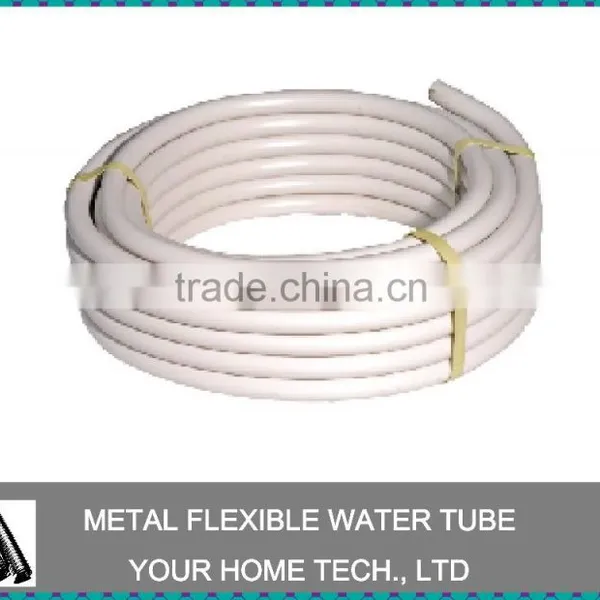

7) Yellow / white color PE coating corrugated pipe
