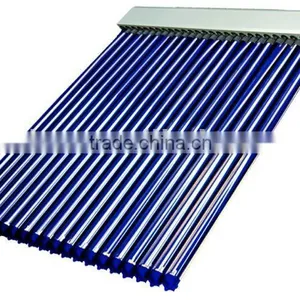

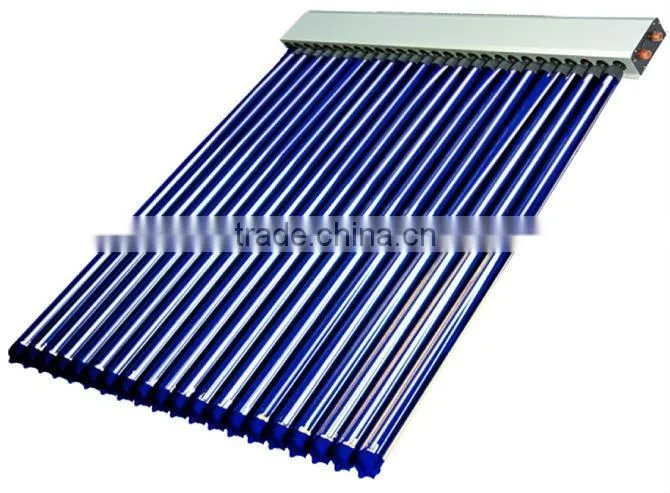

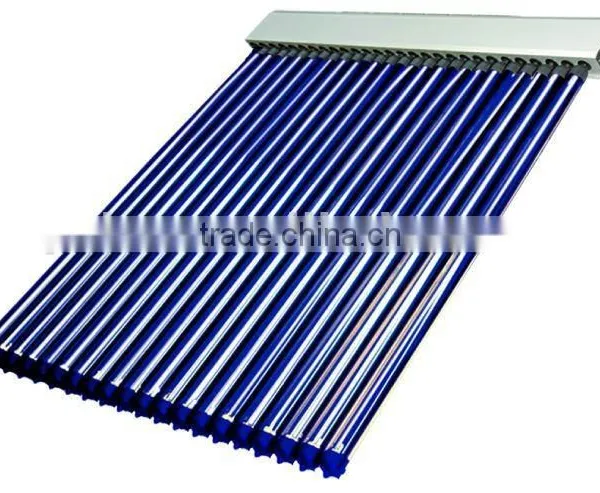

Vacuum heater

Specifications

Vacuum heater
1.Vacuum tube: 30 pcs
2.Aluminum manifold
3.Aluminum frame
4.Pressure resistance 7 kg

Vacuum heater

Vacuum tube	30 pcs
Thermal collector
Absorber	heat pipe vacuum tube
Absorption	≥0.86%
Emission	≤0.08%
Coating	AL/AL-ALN; CU/SS-ALN
Manifold
Material	Copper
Casing	Aluminum
Connection	3/4"
Pressure Resistance	7 kg
Evacuated tube
Diameter	Ø58 mm
Length	1700mm
Material	High Boron Silicon Glass 3.3
Thickness	1.6~2.0mm
Dimension	2160 X 1950 X 135 mm
Antifreeze:	Antifreeze liquid refers to the local relevant standard.  Leng



The heat pipe of vacuum tube thermal collector can absorb the radiation and then to store

the energy in the manifold. The circulating pump is pumping the water or liquid from the manifold to the water storage tank. The whole system pushes the hot water down to the storage tank as well as pushing the cold water up into the manifold and then to absorb the solar radiation in the meanwhile. But the work station can get the different temperature of water between the storage tank and manifold, and then to control the circulation pump ON or OFF. Therefore,  it is easy to retrofit the whole system as it can Increase or decrease the numbers of thermal collectors when it is required to do so.



Application: Residential, condo, resort, apartment, hotel, motel, tour van and industries.
