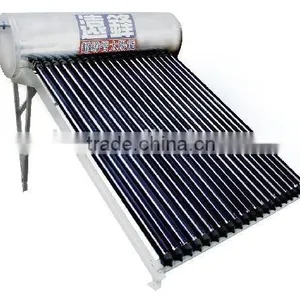

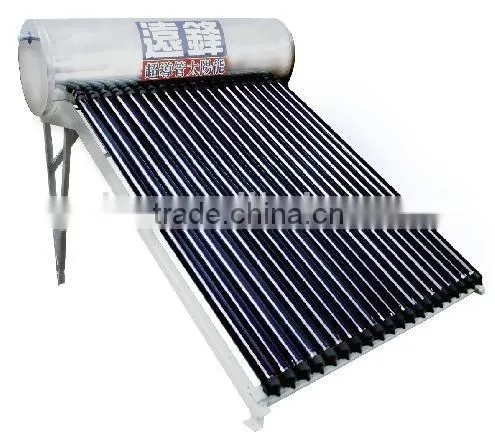

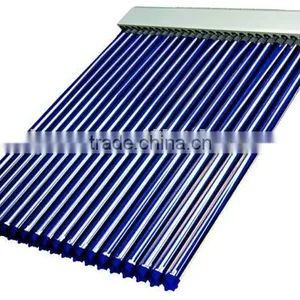

solar water heater system
| Vacuum tube | 30 pcs |
| Thermal collector | |
| Absorber | heat pipe vacuum tube |
| Absorption | ≥0.86% |
| Emission | ≤0.08% |
| Coating | AL/AL-ALN; CU/SS-ALN |
| Manifold | |
| Material | Copper |
| Casing | Aluminum |
| Connection | 3/4" |
| Pressure Resistance | 7 kg |
| Evacuated tube | |
| Diameter | Ø58 mm |
| Length | 1700mm |
| Material | High Boron Silicon Glass 3.3 |
| Thickness | 1.6~2.0mm |
| Dimension | 2160 X 1950 X 135 mm |
| Antifreeze: | Antifreeze liquid refers to the local relevant standard. Leng |
The heat pipe of vacuum tube thermal collector can absorb the radiation and then to store
the energy in the manifold. The circulating pump is pumping the water or liquid from the manifold to the water storage tank. The whole system pushes the hot water down to the storage tank as well as pushing the cold water up into the manifold and then to absorb the solar radiation in the meanwhile. But the work station can get the different temperature of water between the storage tank and manifold, and then to control the circulation pump ON or OFF. Therefore, it is easy to retrofit the whole system as it can Increase or decrease the numbers of thermal collectors when it is required to do so.
Application: Residential, condo, resort, apartment, hotel, motel, tour van and industries.
YUHO is a Taiwan solar water heater manufacturer produces and distributes high quality MADE IN TAIWAN products all over the world. All of our products are pressurized and can be used both domestically and industrially. With our advanced R&D ability and 15 years service experiences, we are the only manufacturer in Taiwan who can provide the large commercial solar water heater system solution. Additionally, our products have already past all tests, and get the solar keymark ( Europe ) and the SRCC ( U.S.A.) certificate.
YUHO is a professional manufactuer as below;
1) Heat pipe vacuum tube solar water heater ( 150 / 200 / 300 Liter )
2) Heat pipe vacuum tube solar collector
3) Flat plate solar water heater ( 150 / 200 / 300 / 400 / 500 Liter )
4) Flat plate solar collector ( Solar keymark and SRCC approved )

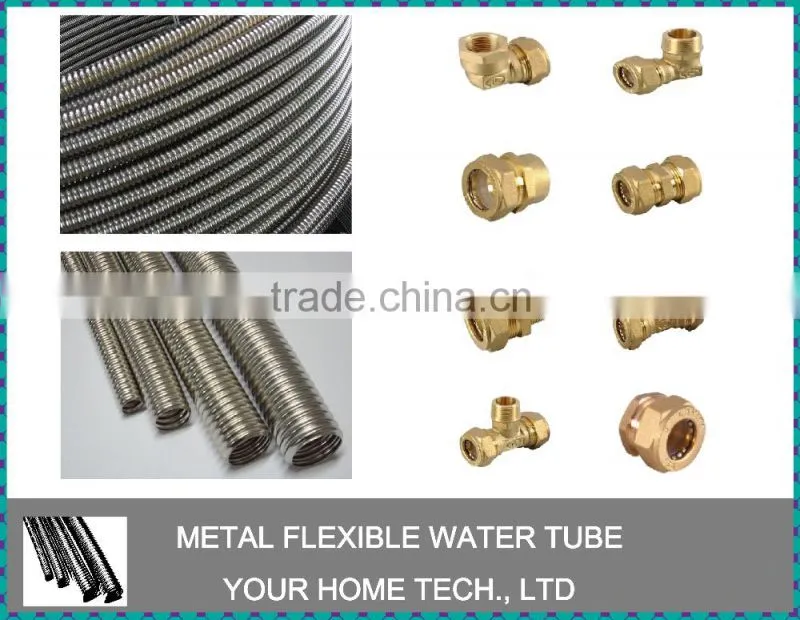

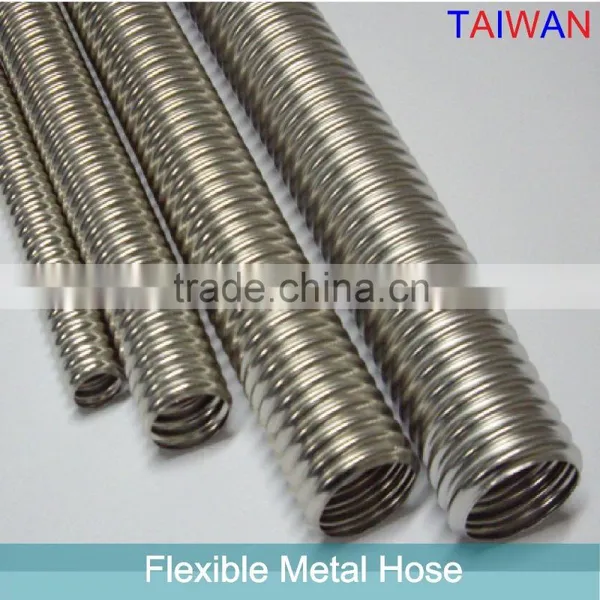

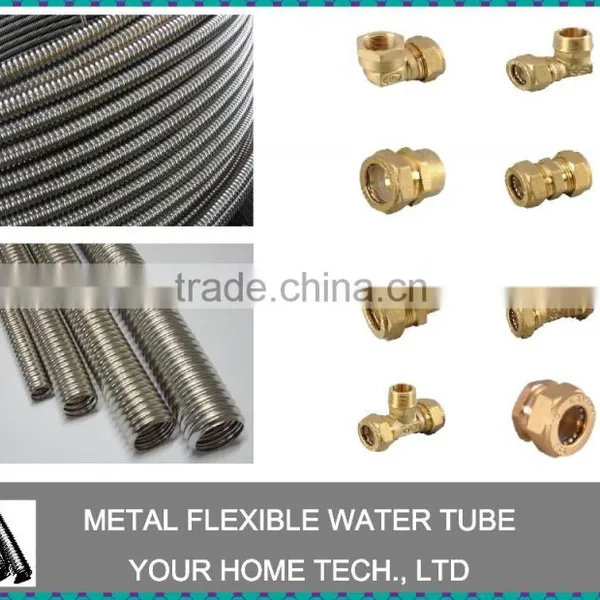

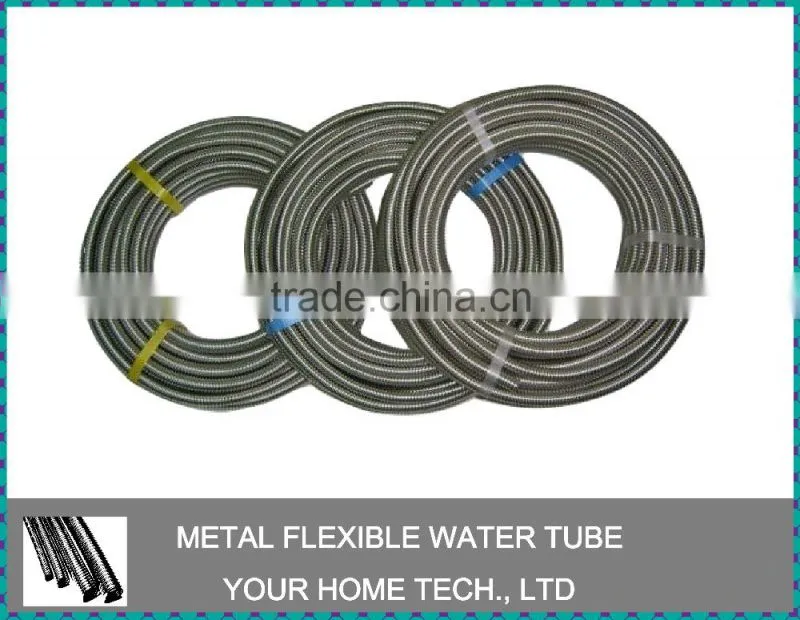

5) Stainless steel 304 / 316L corrugated pipe

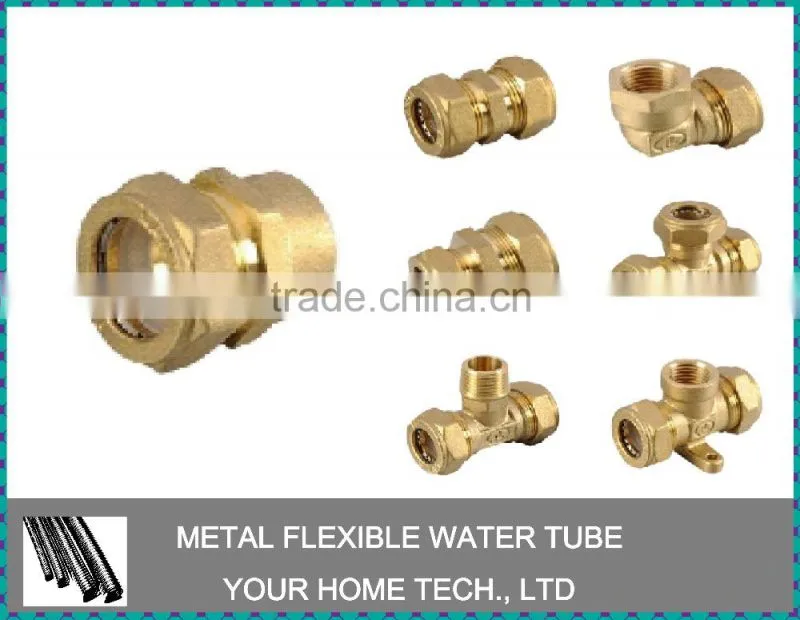

6) Brass fitting parts of SS corrugated pipe

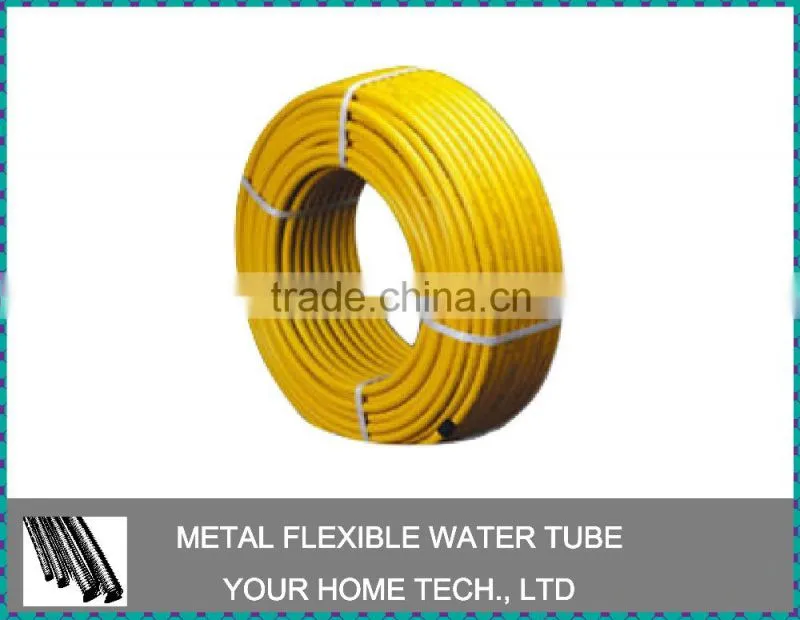

7) Yellow / white color PE coating corrugated pipe
-
Material Stainless steel 304 / 316L Outer Diameter 16.1 / 18 / 20 / 26.5 / 31.7 / 38.5 mm Wall Thckness 0.22~0.25mm Heat treatment Optional Packing Plastic bags or carton Application Water or Gas Coating optional ( white / black / yellow )
Q : Are you manufactuer or trader ?
A : YUHO is a professional manufacturer for more than 10 years in Taiwan.
Q : Is it made in Taiwan ?
A : yes, 100% made in Taiwan with high quality control process.
Q: How can I get to your factory ?
A : The factory is located in the middle of Taiwan. High speed train from Taipei to our city takes around one hour. We will pick you up from the chaiyi station. Websit of high speed rail .tw/en/
Q : Do you have office in Taipei ?
A : NO, We are manufacturer and wellcome to visit our factory.
Q : Can I get a sample ?
A : yes, we provide 30cm pipe free sample for you to check the quality.
Q : Can I order customized tube?
A : yes, we do customized. We will need detail drawing, photo and sample from you.
