4WD By wheel tractors DY840 front 4x4 mini tractor with CE EPA
General Introduction:
DY series telescopic loaders have three models, DY620, DY840 and DY1150, width from 980mm to 1500mm offered best solution to narrow space works, and front articulated design makes the turning radius much smaller which also helps a lot. Telescopic boom offers wider usage.
Safety
ROPS Cabin or canopy can protect the driver in any case if there’s a tilt danger.
Top rotating warning light give an eye-catching signals to people around.
Warning signals for maintenance and operating protect the machine from over-use.
Reversing beeper and lights, traffic lights, rear and front working lights well protects people around and also the operator.
Cylinder protection can prevent any possible damage caused by the boom falling down.
Thanks to the front articulated design, it greatly reduce the tilt possibility.
Power
All models have separately four hydraulic wheel motor, they are real four wheel drive hydrostatic dive.
All machines adopts world famous Kubota/Perkins which guarantees the quality and meanwhile more powerful.
All the actions of the machine can be achieved by only joystick/levels, buttons and switches, reasonable arrangements of all the controls makes the operating biggest comfortable.
Thanks to the quick coupling system, you can change into different attachments in just one minute, which is very simple and convenient.
We always take customers’ any possible needs into consideration, there’s cigar-lights on each machine.
We equipped window hook for the closed cabin so that the window can be opened a bit and offer better ventilation
Standard specifications as below. But if you have any special requirement, please feel free to brin up, our company has more than 10 years experience with all kinds of loaders, and is the first one who start manufacturer compact telescopic loaders, our engineers has rich experience with customers' special requirements, we'll try our best to satisfy you.
Model |
DY840 |
Dimension (LxWxH) |
2600 X1240 X 2100mm |
Max. reach(boom extended) |
3000mm |
Max. reach(boom retracted) |
2480mm |
Bucket capacity |
450L |
Rated loading capacity |
850kg |
Tipping load |
1300kg |
Min. turning radius |
2065mm |
Turning angle |
450 |
Speed |
0-12 km/h |
Weight |
1600 kg |
Standard tire |
26X12-12 |
Tire pressure |
2.8 bar |
Oil tank capacity |
40L |
Pressure |
190bar |
Working oil flow |
33.5L/minx2 |
Tracking oil flow |
78L/min |
Oil model(mineral oil) |
L-HL46 |
Engine brand |
Perkins 404D-15/ Kubota V1505-E3B |
|
Engine type
|
4 cylinder, water cooling |
Rated power/speed |
24.5 Kw/2800 r/min |
Fuel tank capacity |
23L |
Battery |
60Ah, 12V |
4WD By wheel tractors DY840 front 4x4 mini tractor with CE EPA ----Details photos shown
4WD By wheel tractors DY840 front 4x4 mini tractor with CE EPA ----Rear hydraulic output and 3 point hitch
4WD By wheel tractors DY840 front 4x4 mini tractor with CE EPA----telescopic boom
4WD By wheel tractors DY840 front 4x4 mini tractor with CE EPA ----frameless cabin

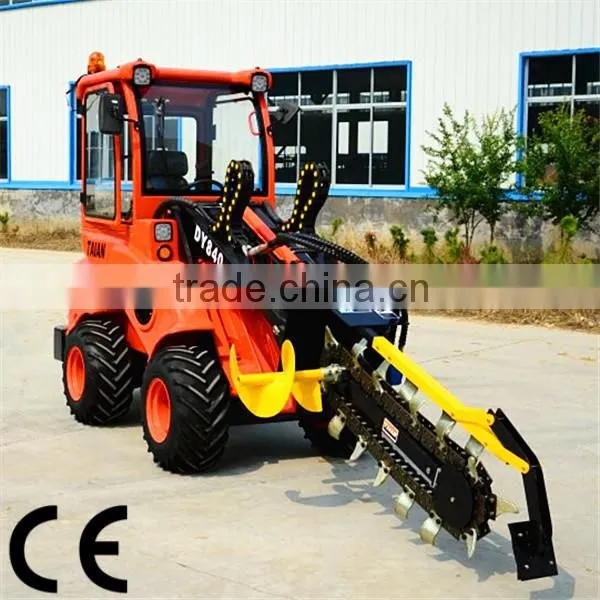

4WD By wheel tractors DY840 front 4x4 mini tractor with CE EPA --------trencher
4WD By wheel tractors DY840 front 4x4 mini tractor with CE EPA -----closed sweeper with side sweeper

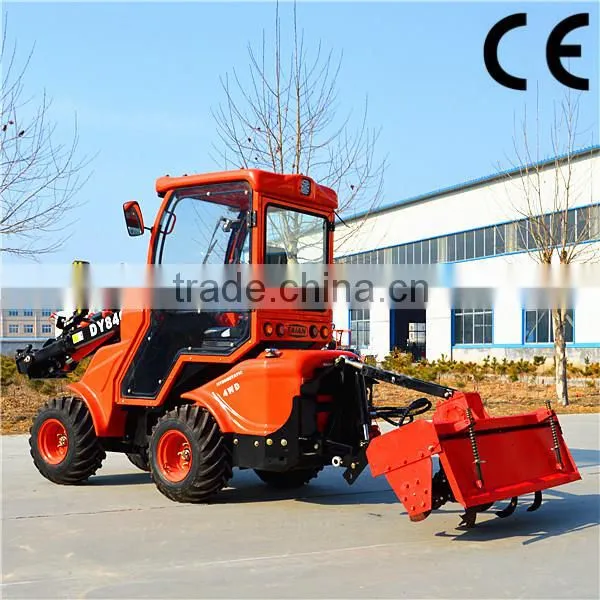

4WD By wheel tractors DY840 front 4x4 mini tractor with CE EPA -----backhoe tiller
4WD By wheel tractors DY840 front 4x4 mini tractor with CE EPA -----fork
4WD By wheel tractors DY840 front 4x4 mini tractor with CE EPA -----hydraulic breaker
4WD By wheel tractors DY840 front 4x4 mini tractor with CE EPA----bale clamps
4WD By wheel tractors DY840 front 4x4 mini tractor with CE EPA -----harley rake
4WD By wheel tractors DY840 front 4x4 mini tractor with CE EPA ----log splitter
We are professional manufacturer for wheel loader,and we have enough experience for business and service.
welcome to visit us.
| Angelia Peng |
| Taian Tengyu Heavy Industrial Co., Ltd. |
| T: 0086 538 6713130 | | M: 15215381757 |
| Mobile:+86 15215381757 |
| Email:angelia at |
| Skype:pyongwen |
| QQ:2983074732 |
|
|
