mini front loader DY1150
- 25 Unit / Units per Month
- Qingdao China
- T/T
Product Details
Condition: | New | Brand Name: | TAIAN | Model Number: | DY1150 |
Place of Origin: | Shandong, China | Type: | Front Loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 3400*1500*2330mm | Rated Load: | 1600kgs | Certification: | CE, FOPS ROPS, EPA |
Warranty: | 1000 Working Hours or one year | After-sales Service Provided: | Overseas third-party support available |
Product Description

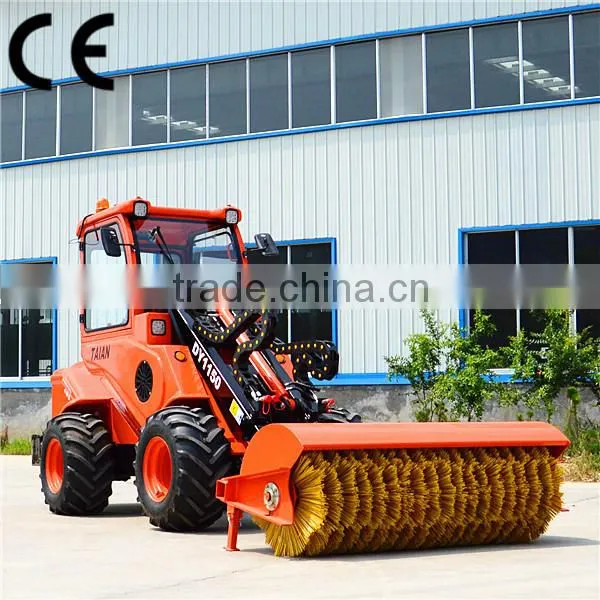

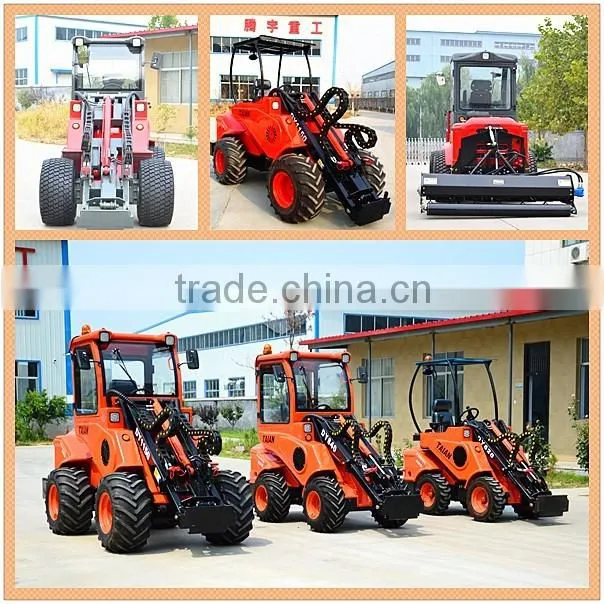

mini front loader DY1150
mini front loader

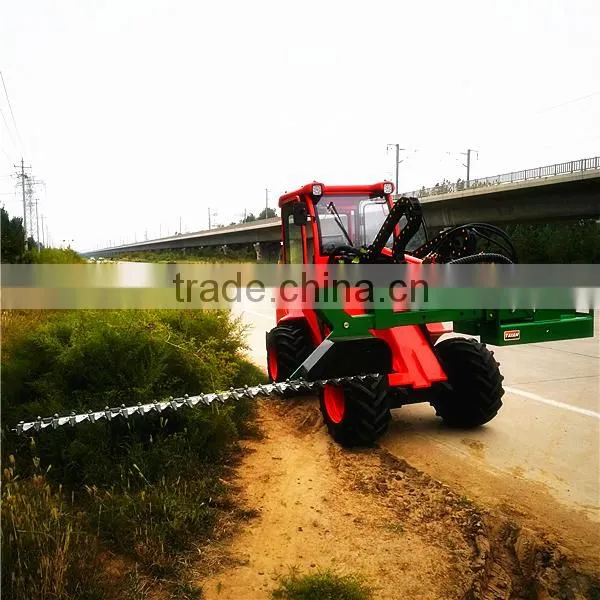

Front and optional rear hydraulic output together with the quick coupling system makes it the transformers of machinery. Our loaders can be used wherever needs a machine, farming, landscaping, construction, estate and property maintenance, etc.
mini front loader

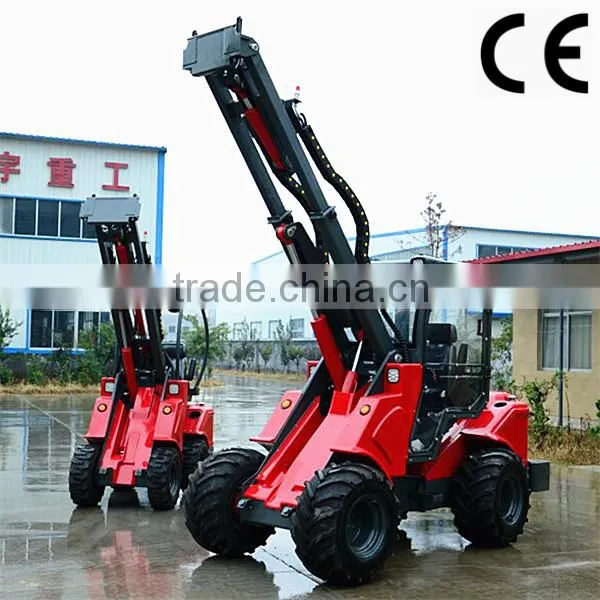

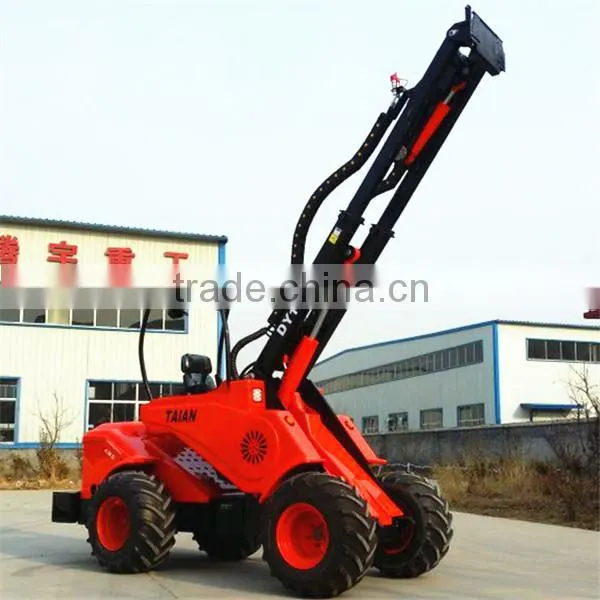

1.Unique telescopic design, widely increase its usage, and also this new design bring something fresh to the loader business, big advantage for re-sell also.
2.Quick coupling system and compatible attachments enable the loaders can do many different kind of work. you can find all what you need here in our factory.
3.Many options enable you to make the ideal machine in your mind, and also offer much choices about the cost.

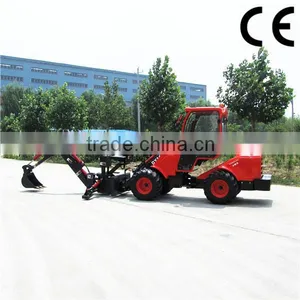

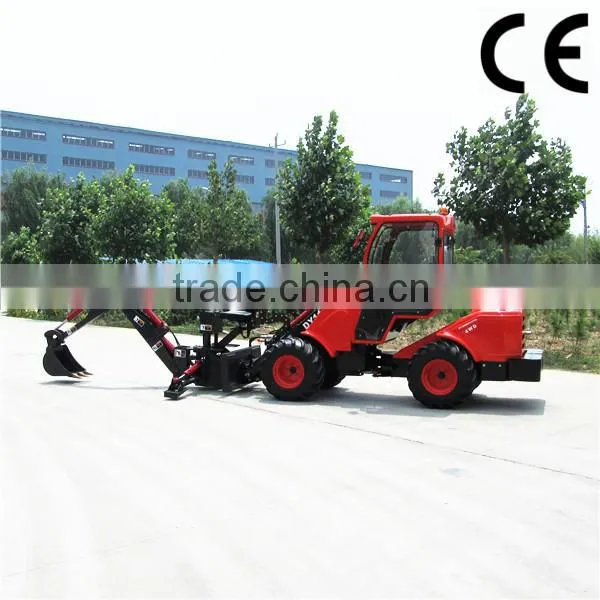

4.Another big advantage compared with other normal loaders, ours can be equipped with rear hydraulic output & 3 point hitch, which makes it can turn into a tractor. So you spent the money for a loader and get both loader and tractor.
Model | DY1150 |
Max. length | 3410 mm |
Max. width | 1500 mm |
Max. height | 2350 mm |
Max. reach(boom extended) | 3540mm |
Max. reach(boom retracted) | 2910mm |
Bucket capacity | 600L |
Rated loading capacity | 1600kg |
Tipping load | 2600kg |
Min. turning radius | 2818mm |
Ground clearance | 330mm |
Turning angle | 450 |
Speed | 16.5 km/h |
Weight | 2010 kg |
Standard tire | 31X15.5-15 |
Tire pressure | 2.8 bar |
Oil tank capacity | 70L |
Pressure | 200bar |
Working oil flow | 82L/min |
Tracking oil flow | 117L/min |
Oil model(mineral oil) | L-HL46 |
Engine brand | Perkins 404D-22 |
Number of cylinder | 4 |
Cooling system | Water cooling |
Rated power | 36.5 Kw |
Rotation speed | 2600 r/min |
Fuel tank capacity | 32L |
Battery capacity | 70Ah |
Voltage | 12v |
1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
3.The repairation or replacement for the parts should not exceed the warranty period.
4.The warranty is valid on the condition of all the terms listed in the contract was observed.
If you are interested in this machine and need a quotation, Please contact with: Steven.
