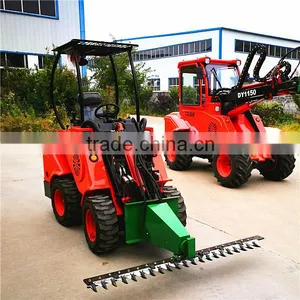

DY1150 Agriculture Wheel Loader With Hedge Trimmer Cutter MachineNegotiableMOQ: 1 Set

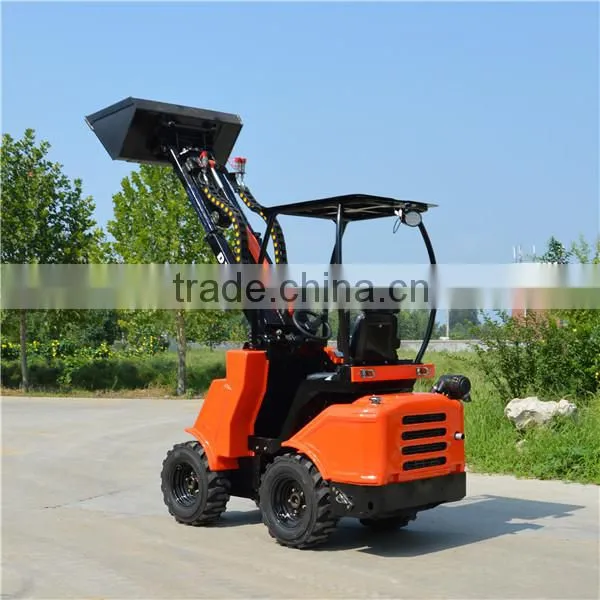

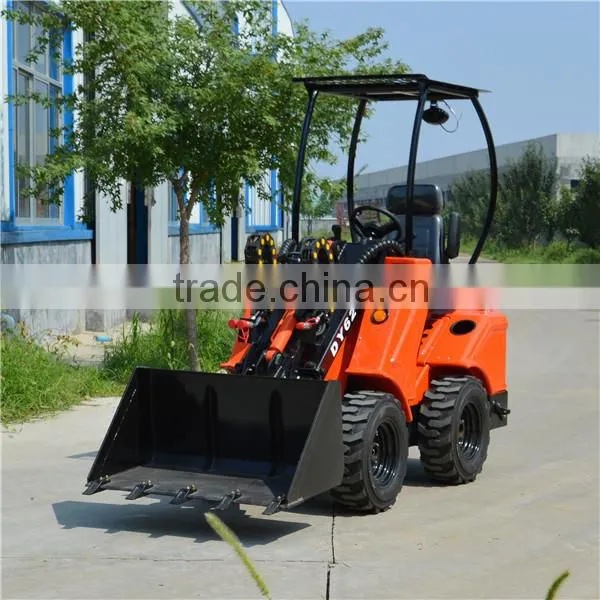

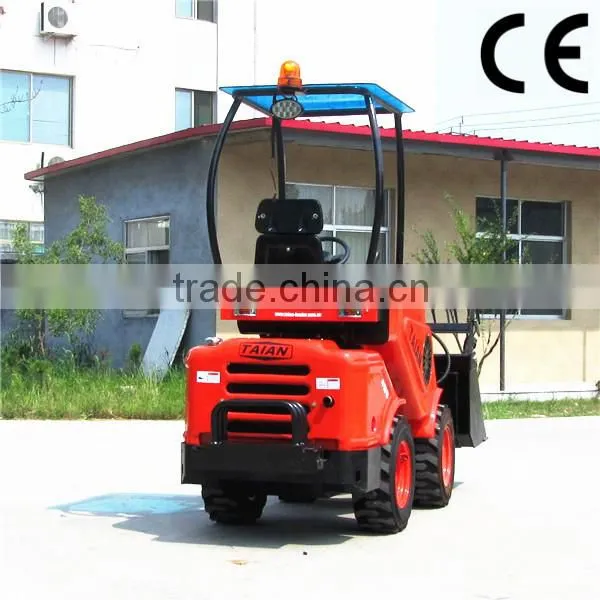

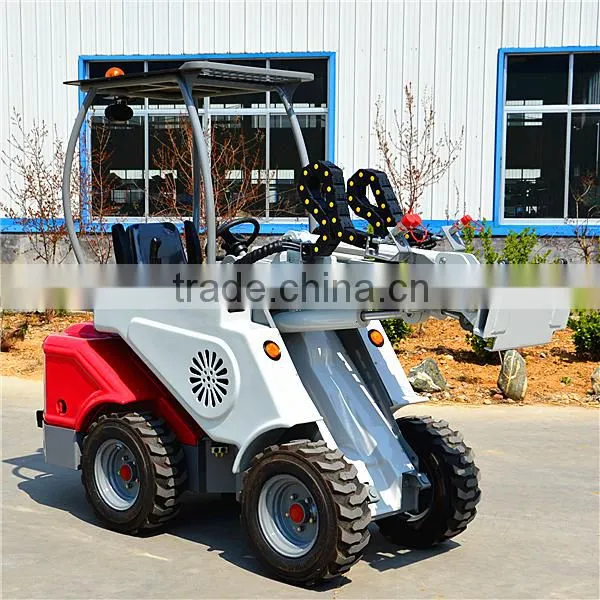

Mini 4-wheel-drive loader, small wheel loader on sale
small wheel loader
1.Unique telescopic design, widely increase its usage, and also this new design bring something fresh to the loader business, big advantage for re-sell also.
2.Quick coupling system and compatible attachments enable the loaders can do many different kind of work. you can find all what you need here in our factory.
3.Many options enable you to make the ideal machine in your mind, and also offer much choices about the cost.
4.Another big advantage compared with other normal loaders, ours can be equipped with rear hydraulic output & 3 point hitch, which makes it can turn into a tractor. So you spent the money for a loader and get both loader and tractor.
small wheel loader
Front and optional rear hydraulic output together with the quick coupling system makes it the transformers of machinery. Our loaders can be used wherever needs a machine, farming, landscaping, construction, estate and property maintenance, etc.
small wheel loader
1. The engine cover can be opened easily
2. Oil level check hole on the rear cover,.
3. Rotating warning light on top.
4. Sound alarm system
5. Convenient Cigar lighter.
6. Pressure testing connector on the chassis
Model |
DY620 |
Dimension (LxWxH) |
2195 mm*980 mm*2150 mm |
Max. reach(boom extended) |
2750mm |
Max. reach(boom retracted) |
2480mm |
Bucket capacity |
300L |
Rated loading capacity |
500kg-800kg |
Min. turning radius |
1980mm |
Turning angle |
400 |
Speed |
10 km/h |
Weight |
1100 kg |
Standard tire |
23X8.5-12 |
Tire pressure |
2.8 bar |
Oil tank capacity |
35L |
Pressure |
190bar |
Working oil flow |
33L/min |
Tracking oil flow |
50L/min |
Oil model(mineral oil) |
L-HL46 |
Fuel tank capacity |
18L |
Battery capacity |
55Ah |
Voltage |
12v |
Engine brand |
Chinese Changchai 3M78 |
Engine type |
3 cylinders, water cooling |
Rated power/speed |
16kw / 2800r/min |
OPTIONS OF ENGINE | |
Engine brand |
Yanmar 3TNV382A |
Engine type |
3 cylinders, water cooling |
Rated power/speed |
22.2KW / 3000r/min |
1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
3.The repairation or replacement for the parts should not exceed the warranty period.
4.The warranty is valid on the condition of all the terms listed in the contract was observed.
If you are interested in this machine and need a quotation, Please contact with: Steven.
