Hot Sale Mini Wheel Loader, Small Loading Machine With CE

Hot Sale Mini Wheel Loader, Small Loading Machine With CE photo-1

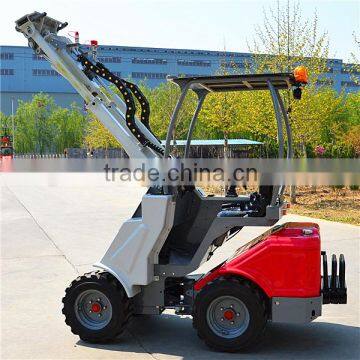

Hot Sale Mini Wheel Loader, Small Loading Machine With CE photo-2

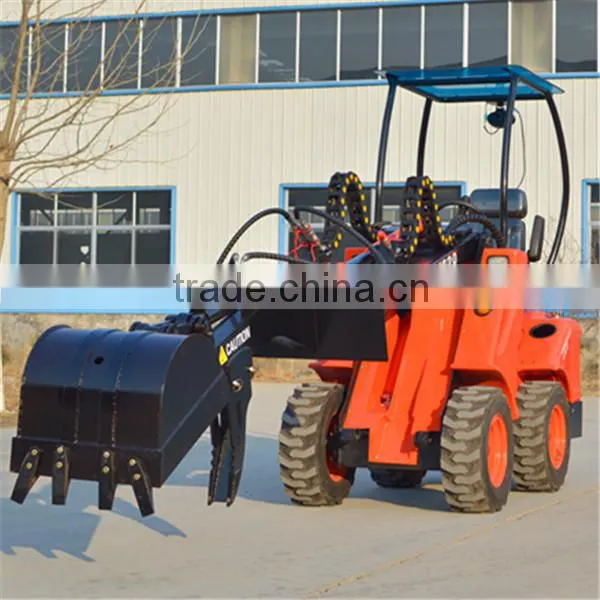

Hot Sale Mini Wheel Loader, Small Loading Machine With CE photo-3

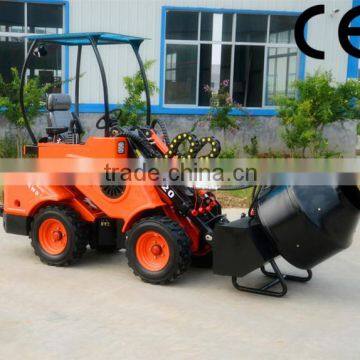

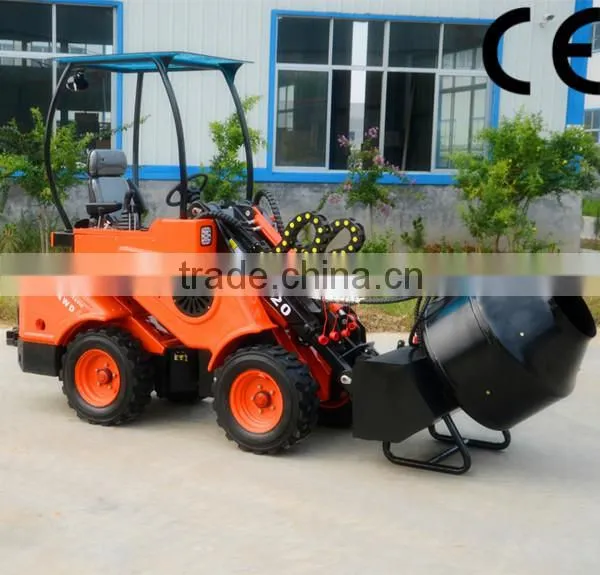

Hot Sale Mini Wheel Loader, Small Loading Machine With CE photo-4
Hot Sale Mini Wheel Loader, Small Loading Machine With CE photo-5
Hot Sale Mini Wheel Loader, Small Loading Machine With CE photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TAIAN
Model Number:
DY620
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Brand Name TAIAN
Model Number DY620
Place of Origin Shandong, China
Type Mini Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 2195x980x2100mm
Rated Load 500~800kg
Certification CE
Warranty one year or 1000 working hours whichever comes first
After-sales Service Provided Overseas third-party support available

Hot sale mini wheel loader, small loading machine with CE



We will extend Bauma China fair in Nov. 2016, welcome to contact us and visit our booth for face to face meeting by then.

Technical data

Model

DY620 mini wheel loader

Dimension(L x W x H)

2195x980x2200 mm

Max. reach(boom extended)

2750mm

Max. reach(boom retracted)

2480mm

Bucket capacity

300L

Rated loading capacity

500~800kg

Min. turning radius

1980mm

Turning angle

400

Speed

10 km/h

Weight

1100 kg

Standard tire

23X8.5-12

Tire pressure

2.8 bar

Oil tank capacity

35L

Pressure

190bar

Working oil flow

33L/min

Tracking oil flow

50L/min

Oil model(mineral oil)

L-HL46

Fuel tank capacity

18L

Battery capacity

55Ah

Voltage

12v

Engine option 1:

Engine option 2:

Perkins 403D-07

Yanmar 3TNV382A

12.5kw/19hp, 2800rpm

22.2kw/30hp, 3000rpm

Diesel, water cooling

Diesel, water cooling

Engine option 3:

Engine option 4:

Chinese Changhchai 3M78

Yanmar 3TNV74F, EPA Tier 4

16kw/22hp,2800rpm

14.6kw/20hp,3000rpm

Diesel, water cooling

Diesel, water cooling

FAQ

1.Q:Why choose us?

A:First of all, we are the first one in China who start to produce telescopic loaders, thus we have rich experiences with such kind of loaders.

Second, we are real manufacturer, compared with other trading companies, the quality, delivery time and after service can be well guaranteed. We warmly welcome you to visit our factory to check everything.

Third, professional sales, engineering and service team makes your purchasing pleasant and convenient.

2.Q:What’s the warranty of the products?

A:For all our loaders, we offer one year or 1000 working hours warranty whichever comes first. And most important, within warranty, we’ll offer relative parts for free by airway or express post, customers can receive the parts within 4~6 days.

Advantage

mini loader 4x4 mini tractor

1.Unique telescopic design, widely increase its usage, and also this new design bring something fresh to the loader business, big advantage for re-sell also.

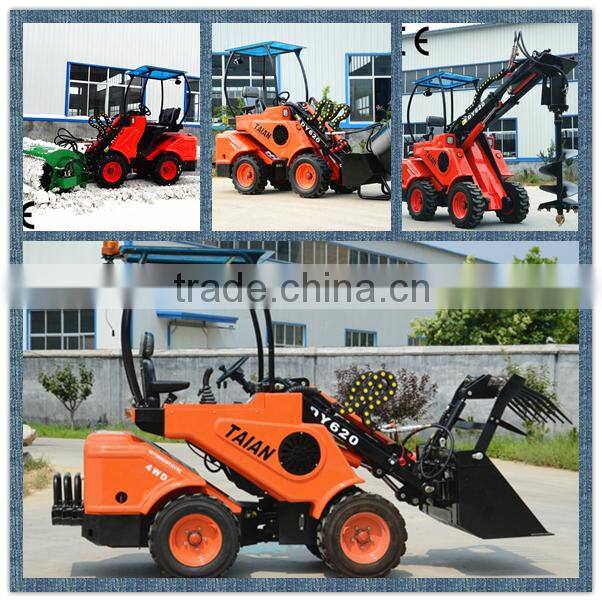

2.Quick coupling system and compatible attachments enable the loaders can do many different kind of work. you can find all what you need here in our factory.

3.Many options enable you to make the ideal machine in your mind, and also offer much choices about the cost.

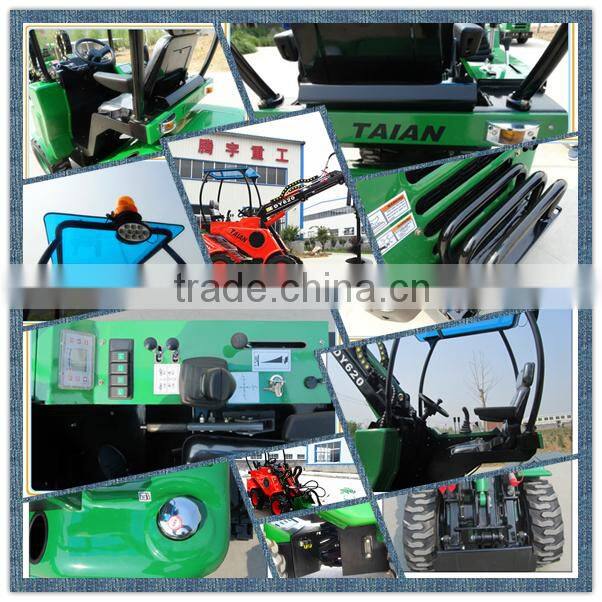

Details

mini loader 4x4 mini tractor



Hot sale mini wheel loader, small loading machine with CEHot sale mini wheel loader, small loading machine with CE

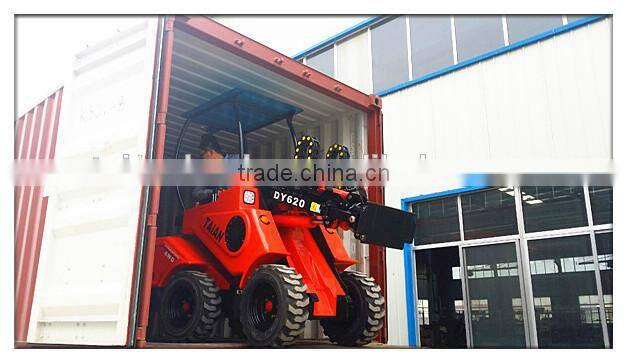

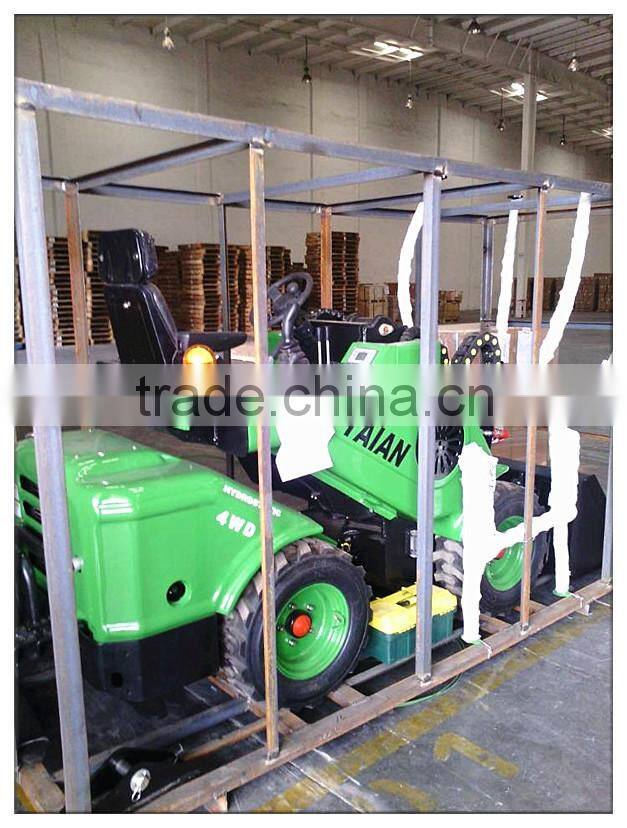

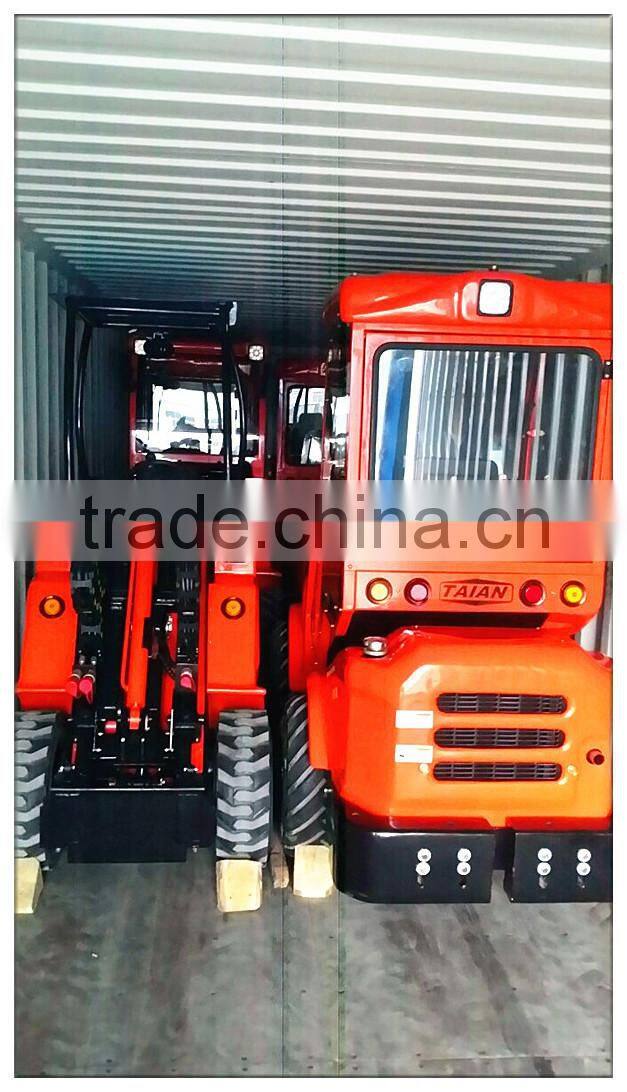

Packaging & Shipping

 Hot sale mini wheel loader, small loading machine with CEHot sale mini wheel loader, small loading machine with CE

  Hot sale mini wheel loader, small loading machine with CE
