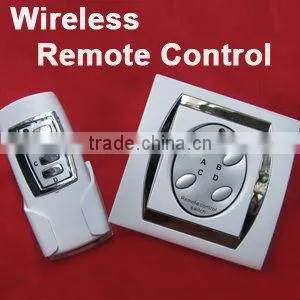

2012 ON/OFF Digital Wireless Home Remote Power light switch

Specifications

1 x 4 Ports ON/OFF Digital Wireless Remote Power Switch
1 x Remote
1 x 12 V 23A Battery



Features of Wireless remote control switch:

Rated voltage	AC125V-AC250V 50HZ/60HZ	Static power	≤0.05W/h
Principle of work	superregenerative reception	Rated load	Each way≤500W
Dimension	86*86*35mm	Load range	Various
Ambient temp	-20°C—+80°C	Sensitivity	-105dB
Frequency	315MHz,Special frequency can be customized	remote  distance	60-100m

     This product uses pairing coding, ultra high frequency encryption eliminates environmental interference. Remote control range is up to 50 meters, not obstructed by walls, capable of connecting any loads. Remote controller and switch can be used simultaneously for ease and flexibility.



Description of Wireless remote control switch:

• Four switch
• Material:plastic
• RF remote control fuction.
• You can touch or use remote or use remote control to open/close.
• Long working life
• Widely used for incandescent lamp,halogen lamp,fluorescent lamp.enery samving lamp.
• It has brought great conveniences to our life.
• This Remote Control Switch uses pairing coding, ultra high frequency encryption eliminates environmental interference
• Remote control switch range is up to 50 meters, not obstructed by wall, capable of connecting any loads
• Remote controller and switch can be used simultaneously fore ease and flexibility
• Just take a Wireless Remote Control Switch and you can easily control all electrical appliances at home
• Digital Remote Control Switch easy installation and use conveniently





Installation instructions:
Open the outer casing of the remote control switch(see the figure), connect the live wire and public neutral wire to mains supply, connect the two wires of electrical appliance to public neutral wire and corresponding binding post A,B,C,D. After wiring is finished, put the wires in order and reset.

Operation instructions:
Press any one of the buttons A,B,C and D on remote controller of switch, the corresponding light or socket is powered, another press will cut it off. Each channel can be used individually.

Note:
Do not fix this switch in an outdoor position exposed to rain and sunshine. Please install it with power cut off. After using for a certain period of time, if remote control range shortens of remote controller dimmed, please change battery of remote controller in time. This product comes with 3-year warranty. If any quality problem arises, please contact your dealer for exchange or repair. Do not open or repair by yourself.
