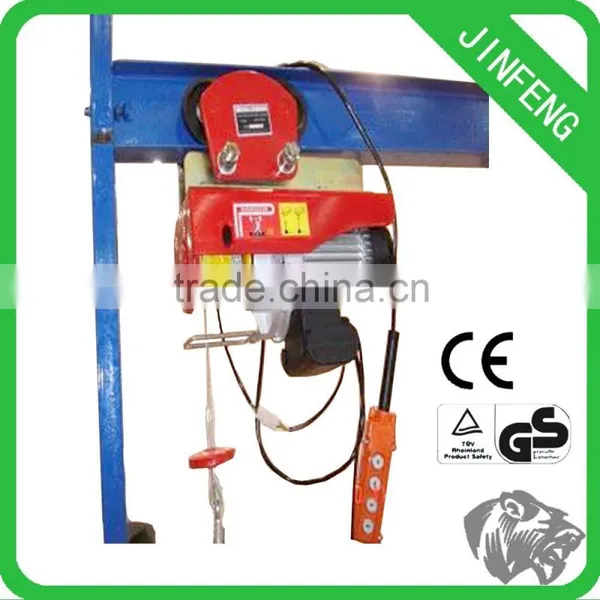

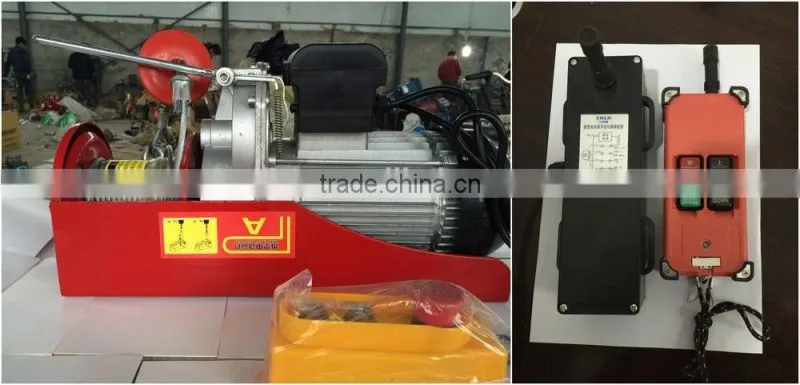

Demag Quality Electric Hoist 100kg with Trolley
PA mini wire rope electric hoist we produce can be used in factories,mines,agriculture,electric power,construction building site,dock and warehouse for installation of the machine, lifting cargoes, loading and unloading the trucks.
Details:
1)The emergency stop switch
2)Upper limit function
3)Thermal protection terminal
4)Protection class IP54
5)Insulation class B
6)Group of mechanisms M1
7)Work Duty: S3-25%-10min
8)Rated Volt: 220/230V ~ 50Hz
9)Rated Current: 2.0A
10)Input Power: 550W
11)Lifting Weight: 100kg (Single-line), 200kg (Double-line)
12) Lifting Height: 12m (Single-line), 6m (Double-line)
13)Lifting Speed: 10m/min (Single-line), 5 m/min (Double-line)
14)Diameter of wire rope: 3.0mm
15)Tensile strength of wire rope ≥ 1870N/mm2
Parameters:
Pictures
Hebei Jukai Lifting Machinery Manufacturing Co., Ltd is specialized in producing high quality lifting equipments with competitive price. Our main items are manual chain hoist, lever hoist and electric hoists and so on. Our brand is Jinfeng and OEM is also accepted by us.
We have established complete quality control system, and have got ISO 9001, CE and GS certificates. For each order, strict inspection will be carried out by the QC department before shipping.
Q: What is our factory product range?
A: Mini electric wire rope hoist, electric wire rope hoist, wire rope lever hoist, electric chain hoist, hand chain block, lever chain hoist, etc.
Q: What information should I provide if I want to order the products?
A:
1) Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color and packing requirements),
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/air port.
4) Forwarder's contact details if there is any in China.
Q: How about your payment terms?
A: 30% deposit, with the balance before delivery, we accept T/T, Western Union and L/C at sight
Q: Can I use our own logo?
A:Yes, we can produce by using your own logo if you need.
Q: What’s the sample policy?
A: We can send you 1pc of sample for your test, but you need to pay for the sample fee and delivery expenses, as it's our company's rule. Pls contact us for the sample details.
