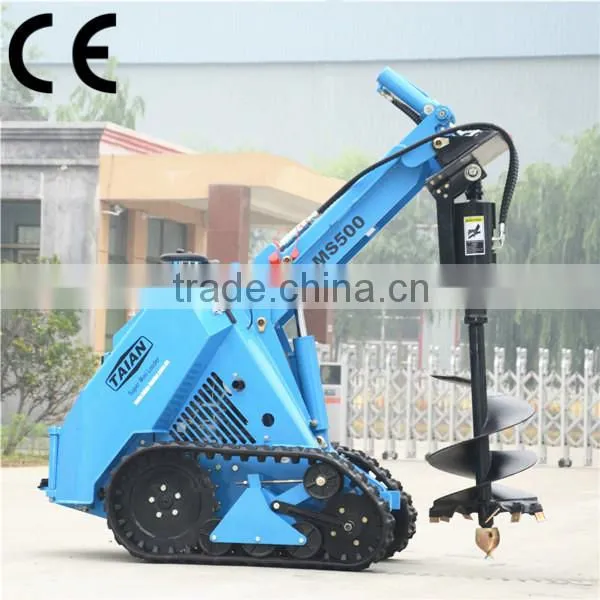

Earth Moving Machinery Small Garden Loader Mini Loader MS500 for Horticulture

Name: Earth Moving Machinery Small Garden Loader Mini Loader MS500 for Horticulture
Brand: TAIAN
SKU: 129030315

Negotiable MOQ: 2 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

TAIAN

Model Number:

MS400

Taian Dongyue Carrying Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TAIAN

Model Number MS400

Place of Origin Shandong, China

Type Skid Steer Loader

Moving Type Crawler Loader

Dimension(Long * Breadth * High) 1780x1100x1300mm

Rated Load 500kg

earth moving machinery small garden loader mini loader MS500 for horticulture :

1. With CE certificate.

2. American water cooled gasoline engine.

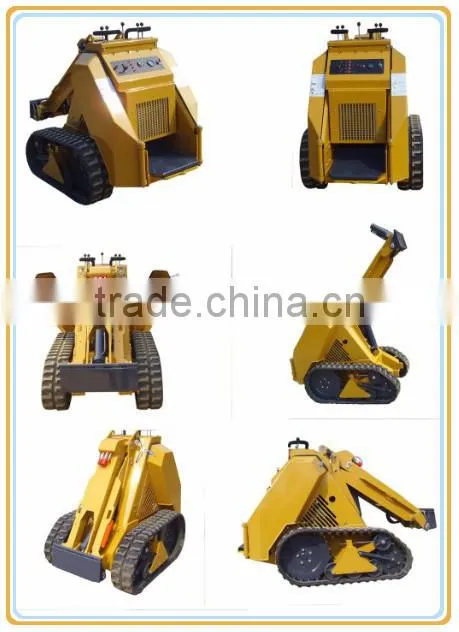

3. Extremely compact design, light weight, easy to transport and smart in narrow working environment.

4. Self levering.

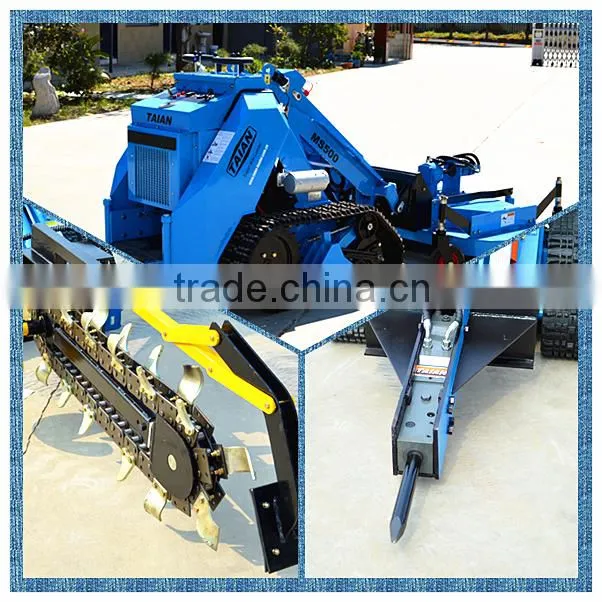

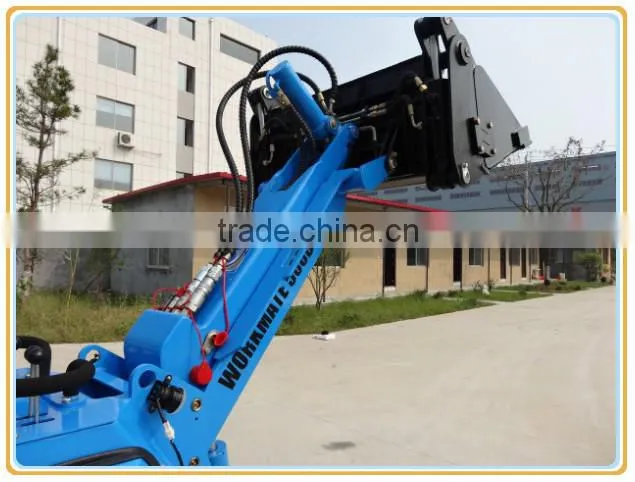

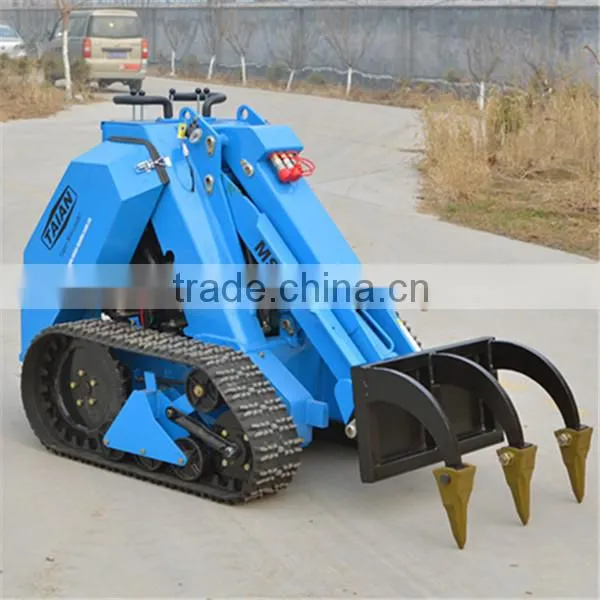

5. Standard quick coupling system can use hundreds of different attachments.

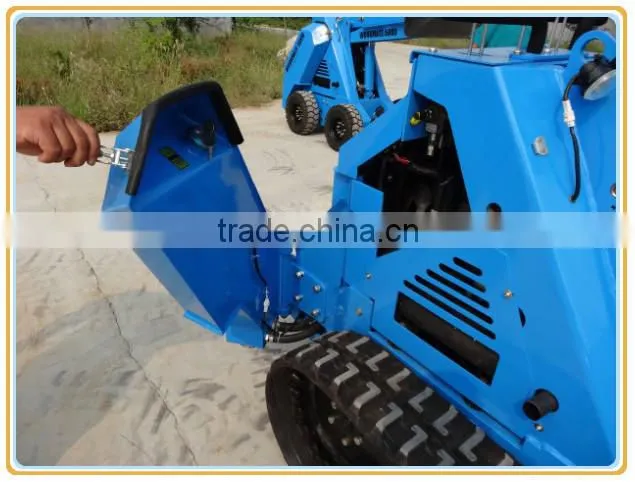

6. Unique swing design of the oil tank greatly simplified the everyday maintenance

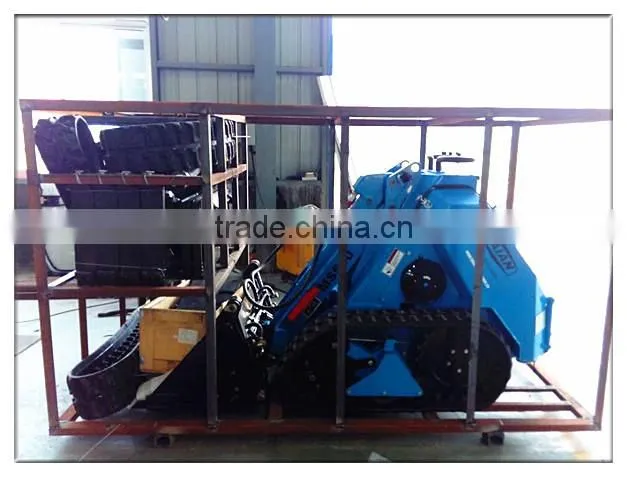

7. Hook holes on the frames make the transport easy and safe.

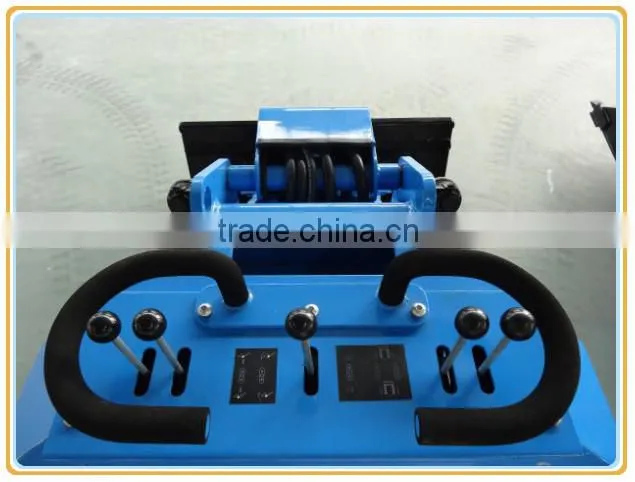

8. Reasonable arrangement of the control levers and the hand hooking bar, makes the operation simple and safe with your hands.

9. All the greasing points were arranged outside of the machine, this arrangement makes the greasing work very simple on such compact machines.

10. The main hydraulic components were famous oversea products which guarantee that it is a powerful and reliable machine.

Model	MS500
Moving type	Crawler or Wheel
Max. Length (without bucket)	1760 mm
Max. width	1100 mm
Max. height	1295 mm
Speed	5km/h
Rated loading capacity	520kg (including attachment)
Tipping load	1040kg
Max. reach	1800mm
Pushing power	8.2KN
Weight (without attachment)	1200kg
Hydraulic oil flow	31L/min
Track oil flow	46L/min
Oil tank capacity	38L
Oil mode	L-HL46
Gasoline oil capacity	28L/min
Battery capacity	45Ah
Voltage	12v
Engine	Kohler CH752, 27HP(20.1kw)
Engine type	Gasoline, Four-cycle, V-twin cylinder, Air- cooled
Rotation speed	3000r/min
Optional Chinese Diesel Engine 1
Engine model	Changchai 3M78, 21.76HP
Engine type	Diesel, 3 cylinders, water cooled
Engine speed	3000r/min
Machine Size(LxWxH/mm) without bucket	1910mmx1150mmx1345mm
Weight (without attachment)	1240KG
Optional Imported Diesel Engine 2
Engine model	Yanmar 3TNV76F
Engine Power	25HP
Rotation speed	2800r/min
Engine type	Diesel, 3 cylinders, water cooled
