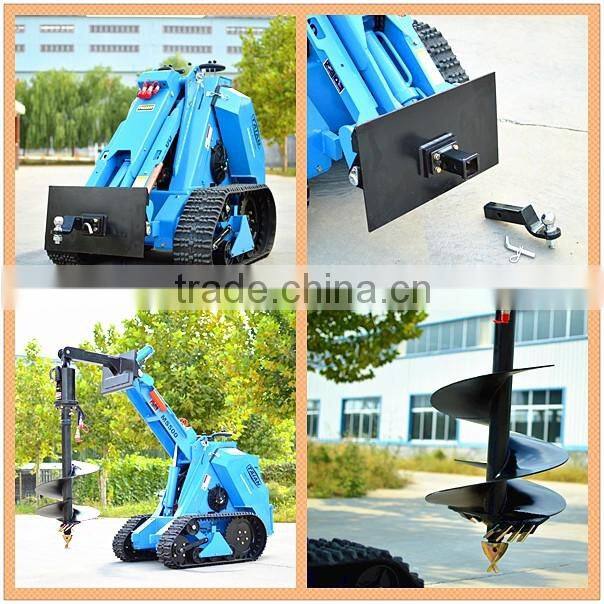

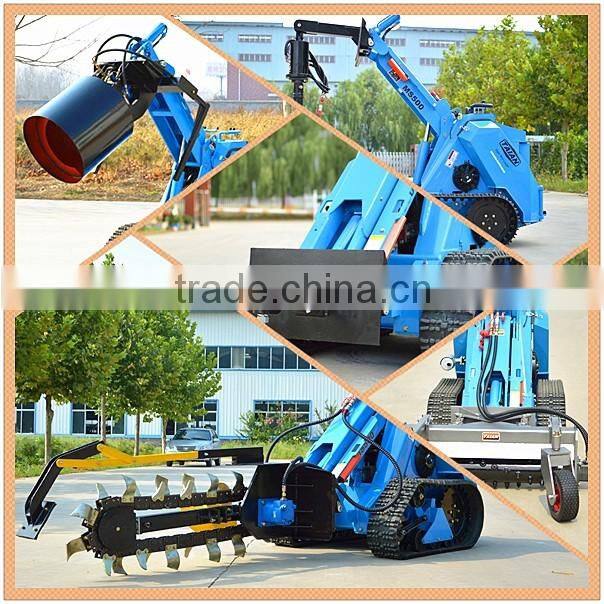

mini skid steer loader for sale
1.Extremely compact design, light weight, easy to transport and smart in narrow working environment.
2.Self levering.

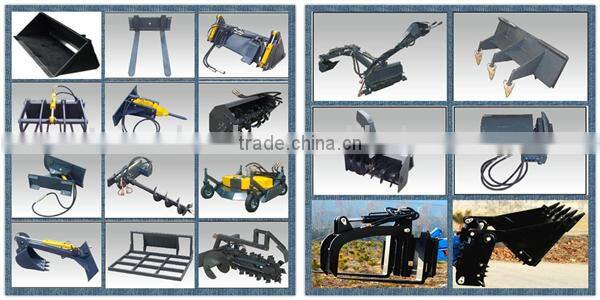

3.Standard quick coupling system can use hundreds of different attachments.
4.Unique swing design of the oil tank greatly simplified the everyday maintenance.
5.Hook holes on the frames make the transport easy and safe.
6.Reasonable arrangement of the control levers and the hand hooking bar, makes the operation simple and safe with your hands.
7.All the greasing points were arranged outside of the machine, this arrangement makes the greasing work very simple on such compact machines.
8.The pressure testing connector greatly simplify the procedure of testing system pressure.
skid loader
1. The engine cover can be opened by your hands
2. Rotating warning light on top.
3. Sound alarm system
4. Pressure testing connector on the chassis
Model | MS500 |
Moving type | Track or Wheel |
Max. Length (without bucket) | 1760mm |
Max. width | 1100mm |
Max. height | 1295mm |
Speed | 5km/h |
Rated loading capacity | 520kg (including attachment) |
Tipping load | 1040kg |
Max. reach | 1800mm |
Tyre | 6.50-10 |
Tyre pressure | 790Mpa |
Pushing power | 8.2KN |
Weight (without attachment) | 900kg (Wheel type) |
1005kgs (Track type) | |
Hydraulic oil flow | 30L/min |
Track oil flow | 46L/min |
Oil tank capacity | 38L |
Oil mode | L-HL46 |
Gasoline oil capacity | 28L/min |
Battery capacity | 45Ah |
Voltage | 12v |
Engine | Kohler CH752, 27HP |
Engine type | Gasoline, 2 cylinder, Air cooling |
Rotation speed | 3600r/min |
Optional Chinese Diesel Engine | |
Engine model | Changchai 3M78,21.76HP |
Engine type | Diesel, 3 cylinders, water cooled |
Engine speed | 3000r/min |
Machine Size(LxWxH/mm) without bucket | 1910mmx1150mmx1345mm |
Weight (without attachment) | 1240KG |
1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
3.The repairation or replacement for the parts should not exceed the warranty period.
4.The warranty is valid on the condition of all the terms listed in the contract was observed.
If you are interested in this machine and need a quotation, Please contact with: Steven.
