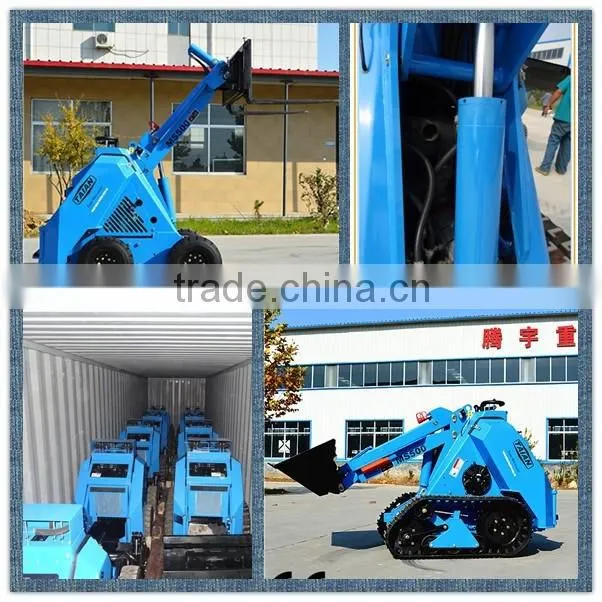

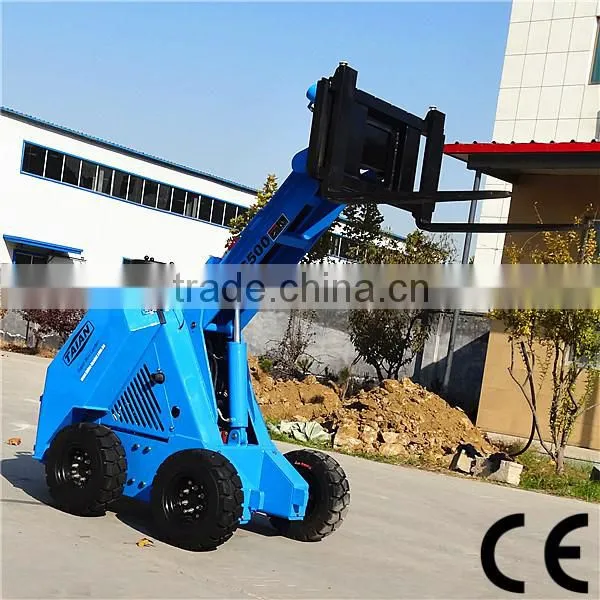

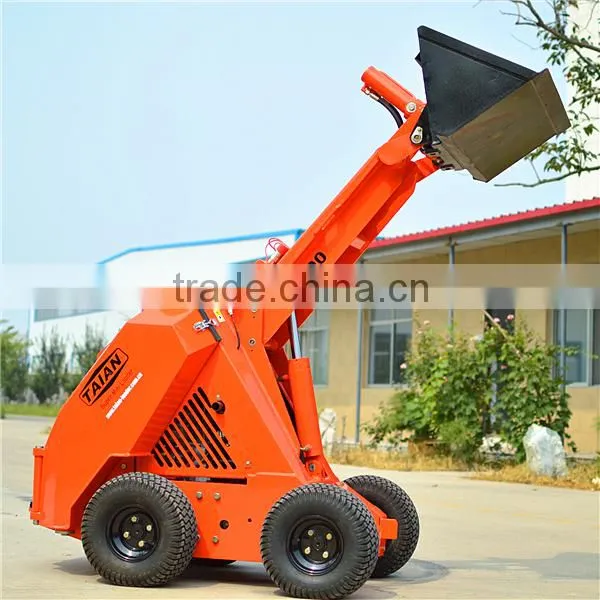

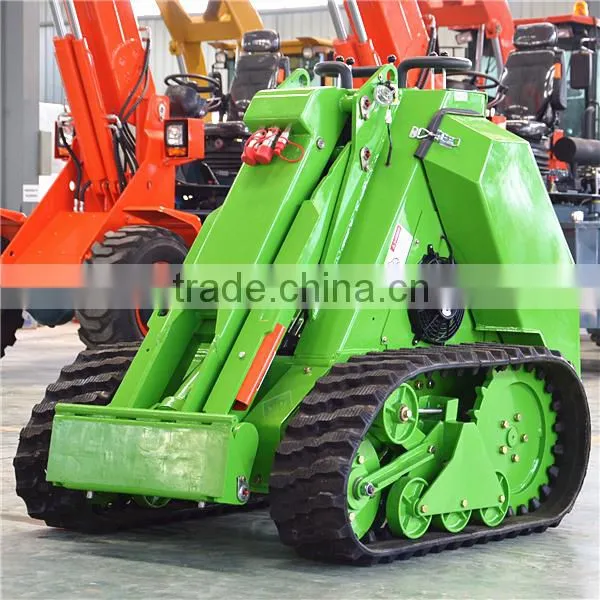

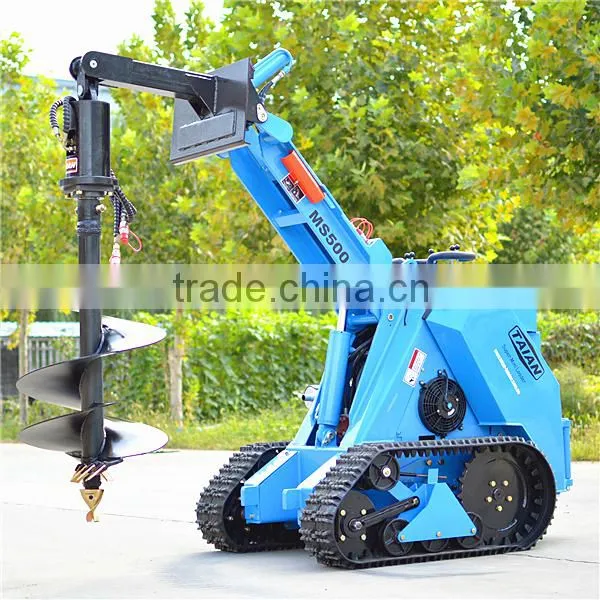

farm machinery equipment MS500 skid loader with digger
skid loader:
TAIAN MS500 Mini Track Loader gives you the power to tackle big jobs in close quarters with impressive traction and lifting abilities. It turns quickly in its tracks, and treads lightly over soft ground and lawns. With a big range of attachments, it gives you endless work-saving opportunities. Used by itself or in combination with bigger loaders, this mini track loader is a maxi work-saver.
skid loader:
The skid steer MS500 series turns on the spot and is therefore very useful in tight situations where space is limited. Thanks to the robust and uncomplicated design MS500 is a very strong machine and also an economical choice for jobs where a skid steer loader is at its best: on hard surfaces. For soft grounds and paved areas the articulated MS500 models are a better choice.
Also for MS500 series there is a wide range of options available. For instance the telescopic boom is a very useful option which gives more lift height and outreach – that means more flexibility for load handling.
MS500 series is especially popular among farmers. Silage distribution, manure removal and sweeping are the most common jobs on the farm. On construction sites MS500 is an excellent machine for various refurbishing works inside buildings. It is very efficient with the MS500 hydraulic breaker. Also the compact dimensions and low unladen weight of MS500 series are benefits when working inside old buildings.
Steering of MS500 series is very precise. It takes some time to learn to drive a skid steer machine, but once you have learned it driving goes as smoothly as driving a bicycle.
Model |
MS500 |
Moving type |
Track or Wheel |
Max. Length (without bucket) |
1760 mm |
Max. width |
1100 mm |
Max. height |
1295 mm |
Speed |
5km/h |
Rated loading capacity |
520kg (including attachment) |
Tipping load |
1040kg |
Max. reach |
1800mm |
Tyre |
6.50-10 |
Tyre pressure |
790Mpa |
Pushing power |
8.2KN |
Weight (without attachment) |
900kg (Wheel type) |
1005kgs (Track type) | |
Hydraulic oil flow |
30L/min |
Track oil flow |
46L/min |
Oil tank capacity |
38L |
Oil mode |
L-HL46 |
Gasoline oil capacity |
28L/min |
Battery capacity |
45Ah |
Voltage |
12v |
Engine |
Kohler CH752, 27HP |
Engine type |
Gasoline, 2 cylinder, Air cooling |
Rotation speed |
3600r/min |
Optional Chinese Diesel Engine | |
Engine model |
Changchai 3M78, 21.76HP |
Engine type |
Diesel, 3 cylinders, water cooled |
Engine speed |
3000r/min |
Machine Size(LxWxH/mm) without bucket |
1910mmx1150mmx1345mm |
Weight (without attachment) |
1240KG |
1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
3.The repairation or replacement for the parts should not exceed the warranty period.
4.The warranty is valid on the condition of all the terms listed in the contract was observed.
If you are interested in this machine and need a quotation, Please contact with: Steven.
