Agricultural Machinery Mini Skid Steer Loader MS500

Agricultural Machinery Mini Skid Steer Loader MS500 photo-1
Agricultural Machinery Mini Skid Steer Loader MS500 photo-2

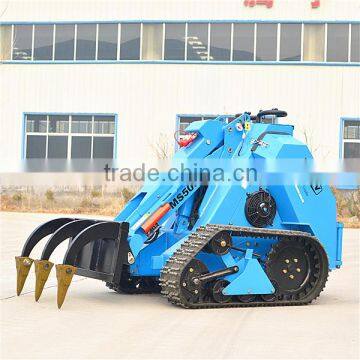

Agricultural Machinery Mini Skid Steer Loader MS500 photo-3
Agricultural Machinery Mini Skid Steer Loader MS500 photo-4

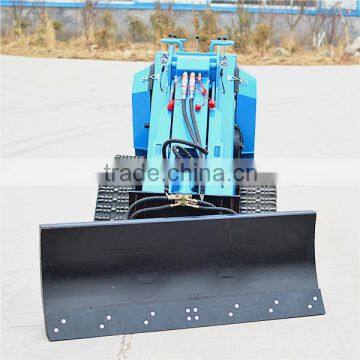

Agricultural Machinery Mini Skid Steer Loader MS500 photo-5

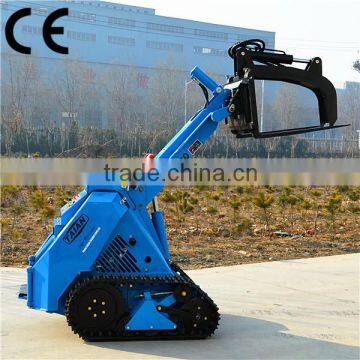

Agricultural Machinery Mini Skid Steer Loader MS500 photo-6
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Farm Equipment
Use:
Agriculture
Certification:
CE, EPA
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Type Farm Equipment
Use Agriculture
Certification CE, EPA
Brand Name TAIAN
Model Number MS500
Condition New
After-sales Service Provided Overseas third-party support available

agricultural machinery mini skid steer loader MS500

Product Description

agricultural machinery MS500

TAIAN MS500 Mini Track Loader gives you the power to tackle big jobs in close quarters with impressive traction and lifting abilities. It turns quickly in its tracks, and treads lightly over soft ground and lawns. With a big range of attachments, it gives you endless work-saving opportunities. Used by itself or in combination with bigger loaders, this mini track loader is a maxi work-saver.

Color and Brand

agricultural machinery MS500

Standard color is orange, but just with a reference color code, we can make it ideal appearance as you excepted.

Our brand name is "TAIAN", but OEM is acceptable and welcomed.

Technical data

Model

MS500

Moving type

Track or Wheel

Max. Length (without bucket)

1760mm

Max. width

1100mm

Max. height

1295mm

Speed

5km/h

Rated loading capacity

520kg (including attachment)

Tipping load

1040kg

Max. reach

1800mm

Tyre

6.50-10

Tyre pressure

790Mpa

Pushing power

8.2KN

Weight (without attachment)

900kg (Wheel type)

1005kgs (Track type)

Hydraulic oil flow

30L/min

Track oil flow

46L/min

Oil tank capacity

38L

Oil mode

L-HL46

Gasoline oil capacity

28L/min

Battery capacity

45Ah

Voltage

12v

Engine

Kohler CH75227HP

Engine type

Gasoline, 2 cylinder, Air cooling

Rotation speed

3600r/min

Optional Chinese Diesel Engine

Engine model

Changchai 3M78,  21.76HP

Engine type

Diesel, 3 cylinders, water cooled

Engine speed

3000r/min

Machine Size(LxWxH/mm) without bucket

1910mmx1150mmx1345mm

Weight (without attachment)

1240KG

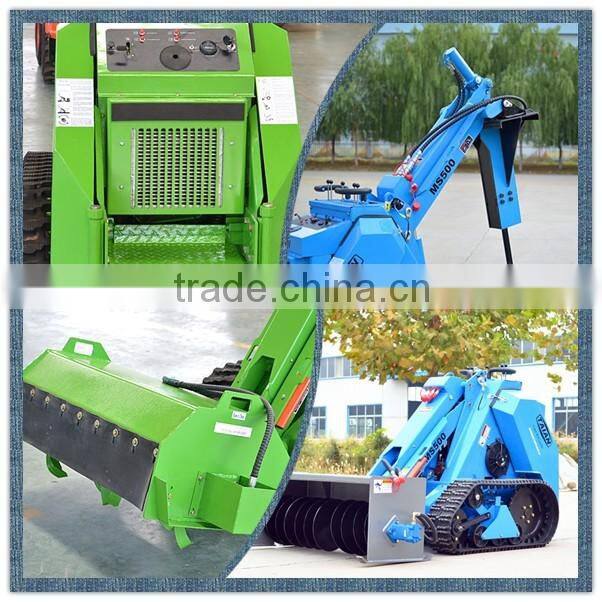

Detailed Images

 agricultural machinery mini skid steer loader MS500agricultural machinery mini skid steer loader MS500

Our Services

1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).

2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.

3.The repairation or replacement for the parts should not exceed the warranty period.

4.The warranty is valid on the condition of all the terms listed in the contract was observed.
