vibratory hammer pile driver, pile drilling machine, drilling rigs for sale
- 600 Unit / Units per Month
- Qingdao China
- T/T D/P D/A PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | TAIAN | Model Number | PD4000 rotary pile driver | |
| Weight | 4560kgs | Dimension(L*W*H) | 4370mm*1850mm*3450mm | |
| Certification | ISO | After-sales Service Provided | Overseas service center available |
Product Description
Hot and New!!! Drilling depth from 2M to 4M, two drilling type, screw and hammer type can switch freely by just two pins.
vibratory hammer pile driver, pile drilling machine, drilling rigs for sale
The most advanced pile drilling equipment

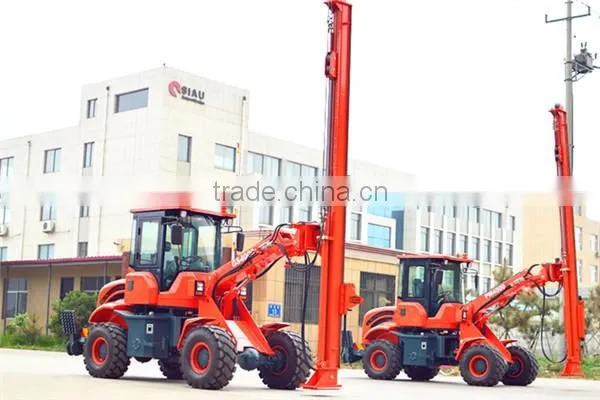

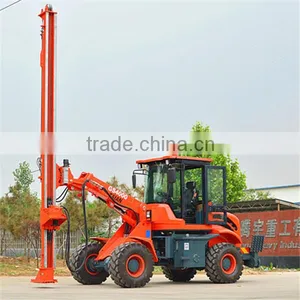

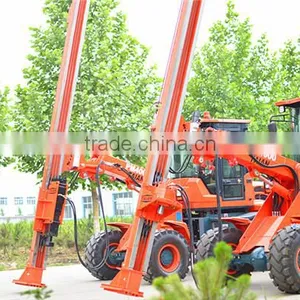

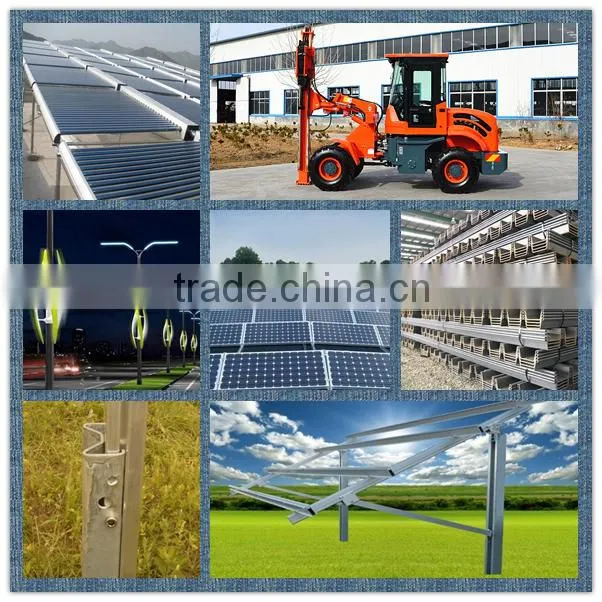

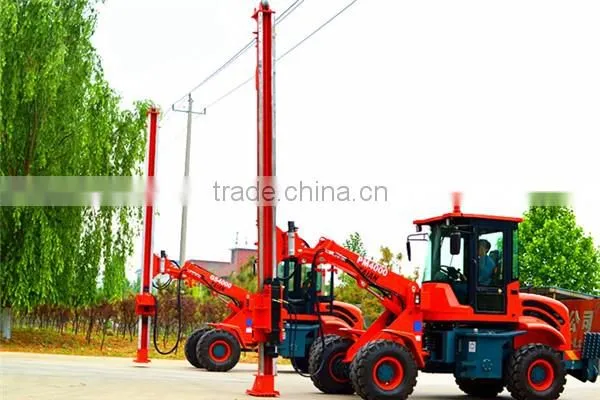

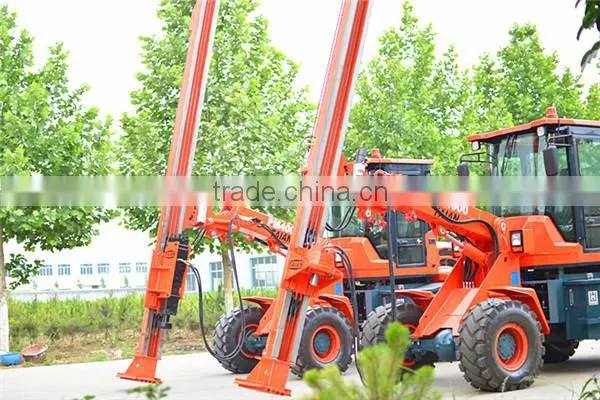

PD Series of spiral pile drilling rig is a new self-innovation spiral pile drilling equipment, widely used in solar power plant constructions, fences, isolation fences, and other pile drilling works for simple houses building, etc.
Excellent Performance
Large torque motor,with strong power and strong adaptability;
Rotary and moving accurate match with the ground conditions, easy adjusting, high piling efficiency;
Matches with pile guiding device, which can ensure the verticality and the accuracy of piles.
Flexible and convenient, good adaptability
*Hydraulic walking system, four-wheel drive, high torque output, strong adaptability;
*Can match with different driving unit with different piles structural dimensions, flexible and efficient for pile installing;
*Quick replacement between rotary and ramming driving unit;
*The drill mast and boom can be quickly disassembled for easy transportation;
Model | PD4000 vibratory hammer diver | |
Overall length | 5100mm | |
Overall width | 1900mm | |
Overall height | 2700mm (to top of the cabin) | |
Weight | 4650kg | |
Engine | Chinese Yunnei 4102, 80hp, diesel engine | |
Walking speed | 18km/h | |
Wheelbase | 1520mm | |
Standard tire | 20.5-16 | |
Hydraulic oil flow | 96L/min for working | |
48L/min for supporting leg | ||
Fuel tank capacity | 100L | |
Working pressure | 18Mpa | |
Torque of Motor (When 25Mpa) | 5000N.m | |
Max. Rod Diameter | 250mm | |
Mast adjustable range | Front & Rear | ±10 Degree |
Left & Right | ±8 Degree | |
Impact rate (Hammer mode) | 500-900bpm | |
