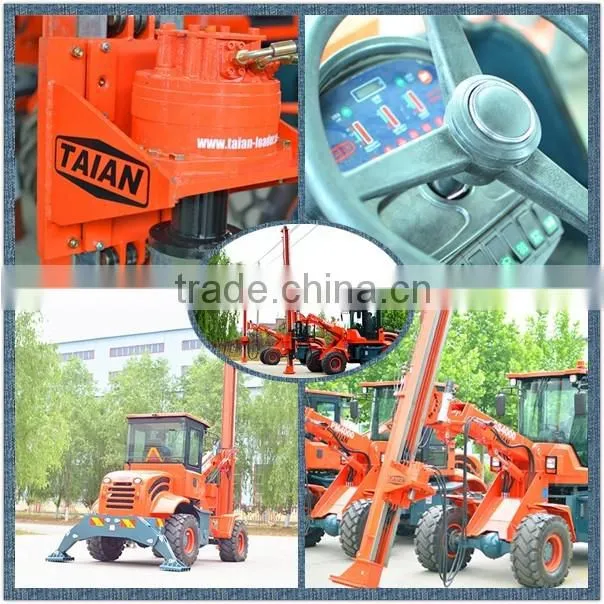

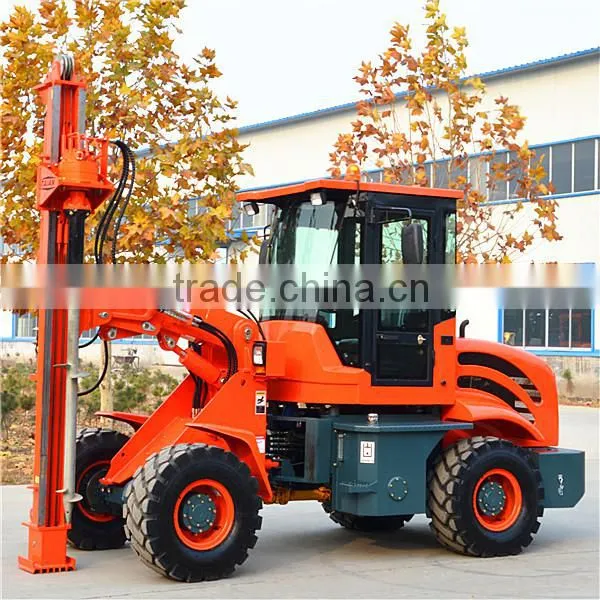

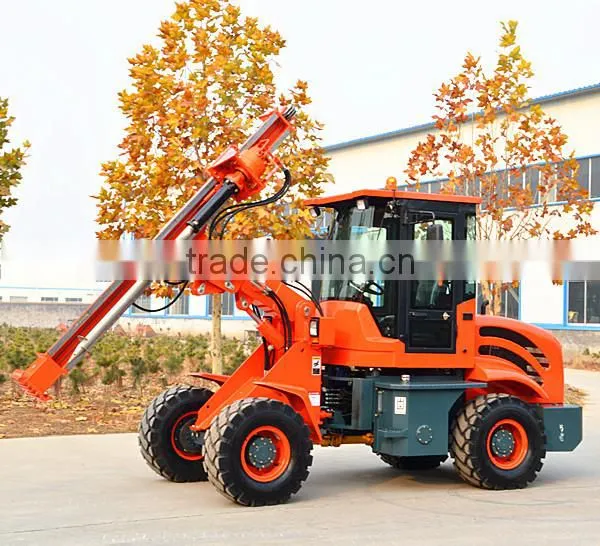

Brand New Hydraulic press pile driver piling machine
piling machine
Flexible and convenient, good adaptability
*Hydraulic walking system, four-wheel drive, high torque output, strong adaptability;
*Can match with different driving unit with different piles structural dimensions, flexible and efficient for pile installing;
*Quick replacement between rotary and ramming driving unit;
*The drill mast and boom can be quickly disassembled for easy transportation;
Comfortable Operation
High-end practical cabin, elegant appearance, security and comfortable inside;
Equipped with air conditioning, adjustable elastic damping seat;
Full electronic instrument display, the running state of machine is visible inside;
Multifunctional electronic control joystick, with comfortable operation and reducing the work intensity;
Drill mast mounting with electronic inclinometer, easy to adjust and monitor in the cab.
Reliable Quality
High-power engine, low fuel consumption, low noise and slight vibration;
High-strength steel made special chassis.
piling machine

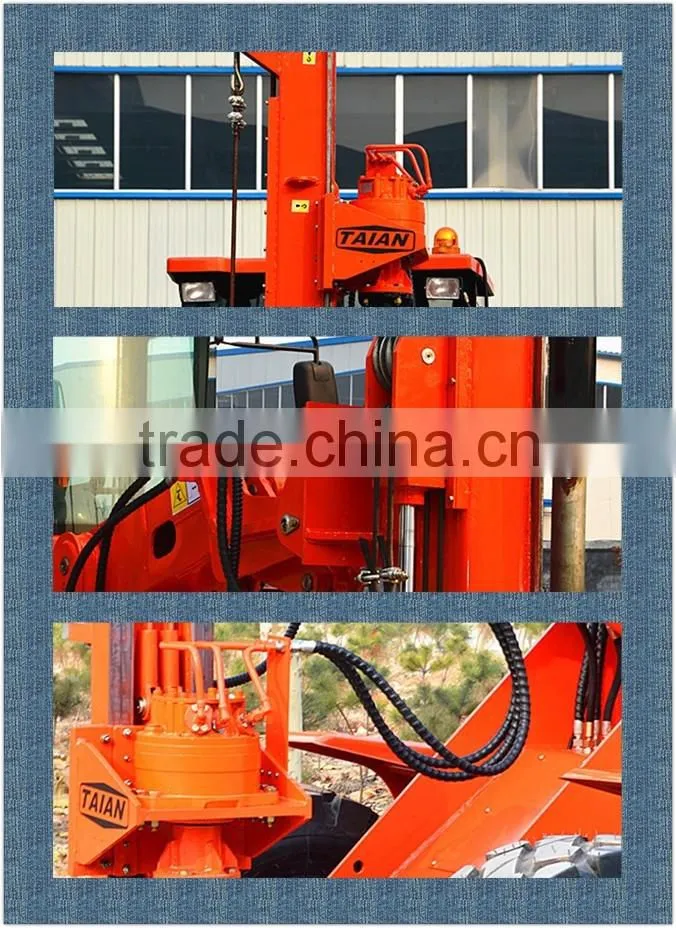

1. It has two different kinds of driving unit, one is for ground screws which is turning type, another one is for ground posts which likes hammer. With these two driving units can suits different working requirement.
2. Rock breaker is available as an option, can be used for hard, rought terrian.
3. The machine body adopts 4 wheel drive, and two speed, which is smart and increase the efficiency.
4. Machine is equiped with angle guage, which helps the operator adjust the direction in time and guarteen vertical drilling.
5. Besides all the advantages above, compared with other similiar machines, we offer very competitive prices and best service to customers. To achieve biggest purchasing safisfaction is always our persue.
Model |
PD2000 |
|
Overall length |
5100mm |
|
Overall width |
1900mm |
|
Overall height |
2700mm (to top of the cabin) |
|
Weight |
4650kg |
|
Engine |
Chinese Yunnei 4102, 80hp, diesel engine |
|
Walking speed |
18km/h |
|
Wheelbase |
1520mm |
|
Standard tire |
20.5-16 |
|
Hydraulic oil flow |
96L/min for working |
|
48L/min for supporting leg | ||
Fuel tank capacity |
100L |
|
Working pressure |
18Mpa |
|
Torque of Motor (When 25Mpa) |
5000N.m |
|
Max. Rod Diameter |
250mm |
|
Mast adjustable range |
Front & Rear |
±10 Degree |
Left & Right |
±8 Degree |
|
Impact rate (Hammer mode) |
500-900bpm |
|
1.For the new machine, within determined limits, the manufacture guarantees for a period of 12 months after bought or 1000 working hours(whichever comes first).
2.The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
3.The repairation or replacement for the parts should not exceed the warranty period.
4.The warranty is valid on the condition of all the terms listed in the contract was observed.
If you are interested in this machine and need a quotation, Please contact with: Steven.
