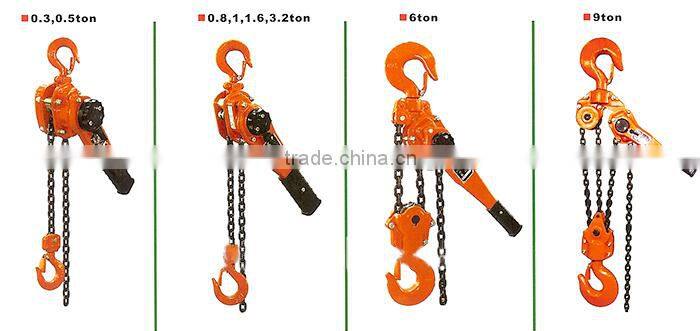

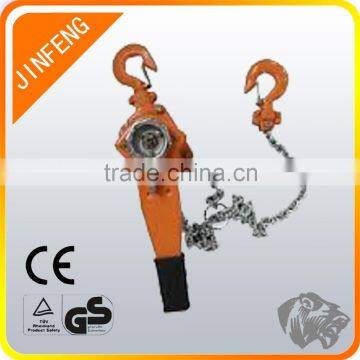

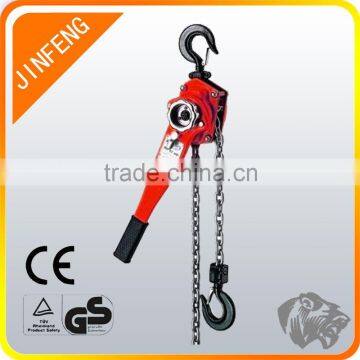

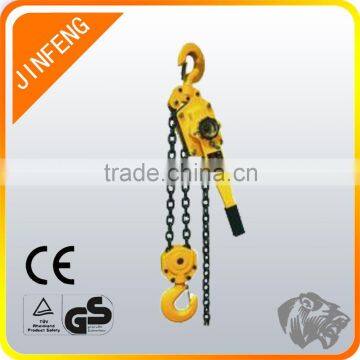

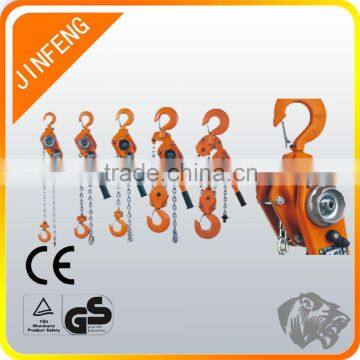

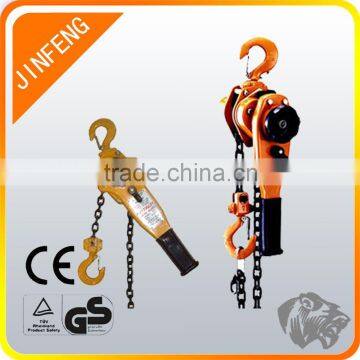

VL type Hand Pulling Lever Chain block
Lever hoist is a multifunctional manual lifting and pulling machine which is easy to carry.It is capable of being applied to electricity,mines,shipbuilding,constructions,transportion,postage and telecommunication for installing equipment,lifting goods,pulling mechanical parts,tightening fittings of wires,assembling and welding etc.It is especially suitable for pulling things in narrow places and working high above the ground in the open air at different angles.
1. Safe, reliable, and durable in use.
2..Excellent performance and minimum maintenance.
3. Small volume, light weight and portable in size.
4. Light hand pull and high efficiency.
5. Advanced structure and attractive appearance
| Capacity tons | 0.75T | 1T | 1.5T | 2T | 3T | 6T | 9T | |
| standard lift(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Running testload(t) | 11 | 15 | 22.5 |
30 | 37.5 | 75 | 112.5 | |
| effort require to lift max load N | 145 | 150 | 200 | 220 | 280 | 310 | 320 | |
| Strands of load chain | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Strands of load chain(mm) | 6 | 6 | 7.1 | 8 | 10 | 10 | 10 | |
| Dimensions(mm) | A | 95 | 95 | 100 | 100 | 110 | 110 | 110 |
| B | 60 | 60 | 65 | 65 | 85 | 85 | 85 | |
| C | 135 | 135 | 145 | 145 | 195 | 250 | 335 | |
| D | 255 | 255 | 255 | 365 | 365 | 365 | 365 | |
| E | 24 | 24 | 31 | 31 | 34 | 43 | 55 | |
| L | 300 | 300 | 365 | 365 | 440 | 575 | 700 | |
| Net weight(kg) | 7 | 7 | 10 | 12 | 18 | 28.5 | 45 | |
| Extra weight per metre of extra lift(KG) | 0.8 | 0.8 | 1.1 | 1.4 | 2.2 | 4.4 | 6.6 | |

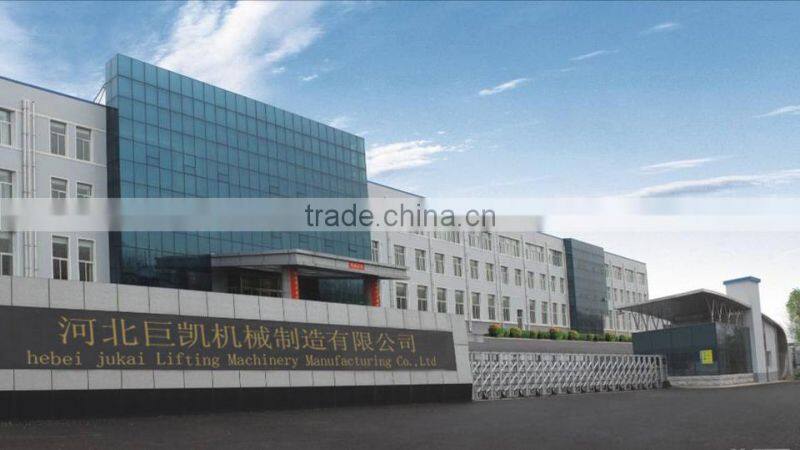

Hebei Jukai Lifting Machinery Manufacturing Co., Ltd is specialized in producing high quality lifting equipments with competitive price. Our main items are manual chain hoist, lever hoist and electric hoists and so on. Our brand is Jinfeng and OEM is also accepted by us.
We have established complete quality control system, and have got ISO 9001, CE and GS certificates. For each order, strict inspection will be carried out by the QC department before shipping.
Q: What is our factory product range?
A: Electric wire rope hoist, electric chain hoist, chain block, lever hoist, chain, trolley, webbing sling etc.
Q: What information should I provide if I want to order the products?
A:
1) Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color and packing requirements),
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/air port.
4) Forwarder's contact details if there is any in China.
Is your product customized?
A:
Yes, we can customize the products according to your detailed requirements, so we will appreciate it very much if you tell us more indormation about the capacity, lifting height and packing requirements etc.
Q: How about your payment terms?
A: 30% deposit, with the balance before delivery, we accept T/T, Western Union and L/C at sight
Q: Can I use our own logo?
A:Yes, we can produce by using your own logo if you need.
Q: What’s the sample policy?
A: We can send you 1pc of sample for your test, but you need to pay for the sample fee and delivery expenses, as it's our company's rule. Pls contact us for the sample details.
Other products
Our advantage:
1) We have own factory, so we can give you the competitive prices, with high quality.
2) The quality of the products by the China People’s Insurance company(PICC).
3) Hebei Jukai Lifting Machinery Manufacturing Co., Ltd Indurstry benchmarking Enterprises
4) There in no customers complaints in three years.
5) Over nesrly thousands of project performance.
