High Quality Prices of Toyo Lever Block Manufacturer Approved CE&GS
- shanghai for prices of toyo lever block
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | seagull | Model Number | HSH-V | |
| Usage | Construction Hoist | Power Source | Lever | |
| Sling Type | Chain | Maximum Lifting Weight | 9Ton | |
| Maximum Lifting Height | 18M | Certification | CE&GS | |
| Warranty | one year |
Product Description
Specifications
prices of toyo lever blockHSH-V type .
Capacity from 0.25t to 9t
CE&GS certified

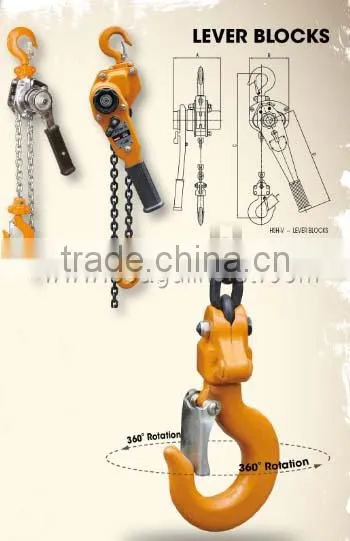

lever block
HSH-V type.
*Capacity from 0.25T to 9T.
*Bearings inside load chain sprocket increase mechanical efficiency
*Chain guides provide smooth chain operation.
*lightweight steel construction with durable powder coat finish.
*Drop forged hooks and hook holders, heat treated to ensure the safety and durability.
*Gear assembly provide smooth operation by little hand efforts.
*T80 grade high tensile lifting chain make more effective.
*CE CERTIFIED.
*One year guarantee.
HSH-V-LEVER BLOCKS | |||||||||
Model | HSH-V2.5 | HSH-V5 | HSH-V7.5 | HSH-V10 | HSH-V15 | HSH-V20 | HSH-V30 | HSH-V60 | HSH-V90 |
Rated load(T) | 0.25 | 0.5 | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 |
Test load(T) | 0.375 | 0.75 | 1.125 | 1.5 | 2.25 | 3 | 4.5 | 9 | 13.5 |
Standard lift(m) | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Min. distance between two hooks(mm) | 205 | 260 | 295 | 295 | 335 | 385 | 450 | 615 | 720 |
Efforts required at capacity(N) | 217 | 303 | 140 | 185 | 234 | 251 | 363 | 370 | 375 |
No. of load chains | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 |
Diameter of load chain(mm) | 4 | 5 | 6 | 6 | 7.1 | 8 | 10 | 10 | 10 |
Dimensions(mm) A B C D E | 92 75 205 153 17 | 110 82 260 261 23 | 152 128 295 256 26 | 152 128 295 256 26 | 175 148 335 368 30 | 175 160 385 368 33 | 195 181 450 368 34 | 195 232 615 368 47 | 195 366 720 368 64 |
Net weight(kg) | 1.85 | 4.6 | 7.7 | 8 | 10.6 | 14.8 | 20 | 28 | 46 |
