Specifications
electric hoist crane 2 tonssingle phase electric chain hoist
Lifting speed:4.8m/min
Voltage:110-440V
electric hoist crane 2 tons
ELECTRIC HOIST:
1) With suspension hook. push, geared or electric trolley.
2) Standard lift height 3 m, control cable 3m
3) Operating voltage 220-460V, 50/60Hz, 1-3 phase
4) Low voltage control 24V is standard.
5) High efficient energy-saving motor, asbestos free brake system.
6) Top and bottom hooks are fitted with safety latches as standard.
7) Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
8) Solid chain bucket.
9) Super strong surface hardened chain.
10) Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
11) The unique friction clutch overload protection, which protects the unit from overloading.
12) High quality electric components with safety protection.
SCH3 ELECTRIC HOIST(THREE PHASE) | |||||||||||
Model |
Work Class |
Capacity (Kg) |
Lifting Height (m/min) |
Lifting Speed (m/min) |
1-PH/110V-220V/50HZ-60HZ |
Load Chain |
Test Load (KN) |
Net Weight (kg) |
|||
Power(kw) |
Ins Class |
Protection |
Dia(mm) |
Number of falls |
|||||||
SCH105G |
M6(H4) |
500 |
3 |
4.9 |
0.6 |
F |
IP54 |
7.1*21 |
1 |
55 |
47 |
SCH110G |
M6(H4) |
1000 |
3 |
4.9 |
1.2 |
F |
IP54 |
7.1*21 |
1 |
110 |
50 |
SCH120G |
M6(H4) |
2000 |
3 |
2.45 |
1.2 |
F |
IP54 |
7.1*21 |
2 |
220 |
55 |
WELCOME TO OUR COMPANY

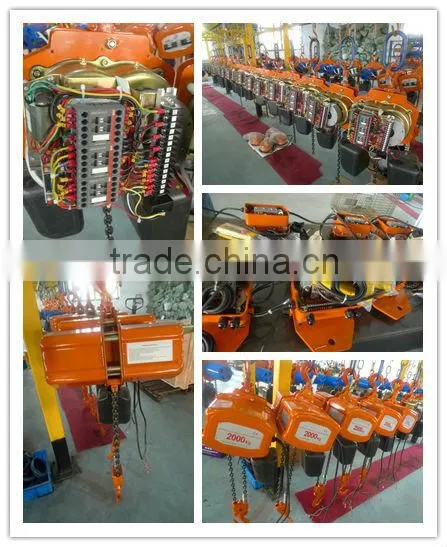

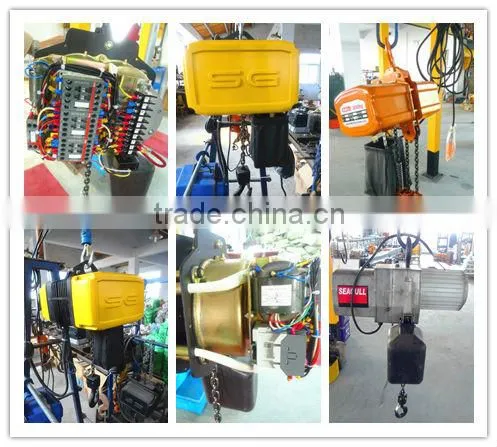

PRODUCT LINE

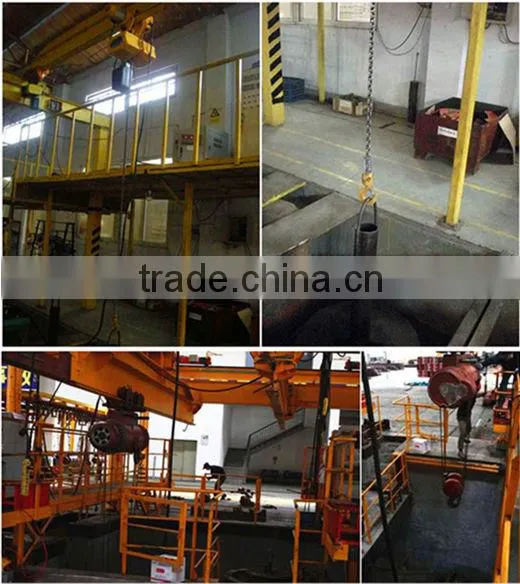

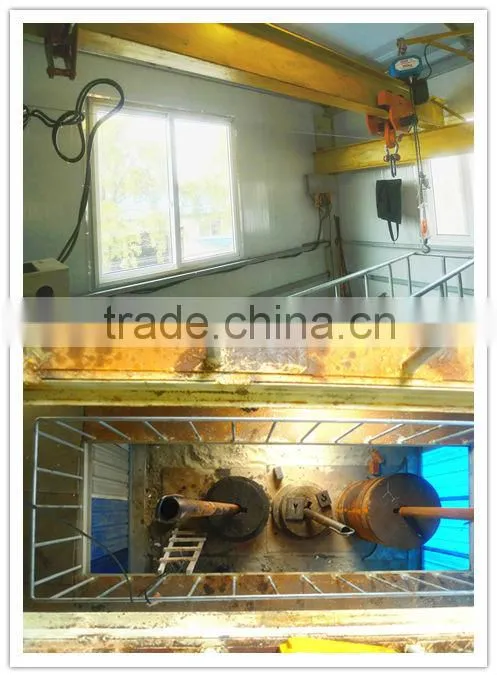

TEST
