Introduction
Multifunctional lifting hoist is a kind of electric hoists which can be applied to the ground and high altitude.it's widely used in construction industry.It possesses the advantage of large lifting capacity,high lifting height and smooth operation.Multifunctional electric lifting machine is improved on the basis of multifunctional lifting hoist.Compared with the multifunctional lifting hoist,multifunctional lifting machine possesses the advantage of lower noise,faster heat dissipation and better quality gear.
1. The normal travelling speed: 20m/min (dual speed 20/6 is optional)
2. Hoist electrics cubicle including low voltage transformer
3. Motor protection IP54 insulation class F
4. Push button box with emergency button
5. Rope guide for use in aggressive environment
6. Remote control is optional, Hook with safety latch
7. The hoist is made under the FEM European standard, with planetary gearbox(low noises and free maintenance).
8. The motor and gearbox are installed at the same side, help the hoist to run smoothly and increase of service life.
Specification
| Model | 300-600 | 500-1000 | 500-1000 | 750-1500 | 1000-2000 | 500-1000 |
| usage | single/double Rope | single/double Rope | single/double Rope | single/double Rope | single/double Rope | single/double Rope |
| Voltage(v) | 380 | 380 | 380 | 380 | 380 | 220 |
| Power(kw) | 0.6 | 1.1 | 1.5 | 1.5 | 3 | 1.6 |
| Capacity(kg) | 300/600 | 500/1000 | 500/1000 | 750/1500 | 1000/2000 | 500/1000 |
| Lifting Speed(m/min) | 16/8 | 14/7 | 20/10 | 16/8 | 16/8 | 14/7 |
| Lifting Height(m) | 60/30 | 60/30 | 60/30 | 60/30 | 60/30 | 60/30 |
Pictures

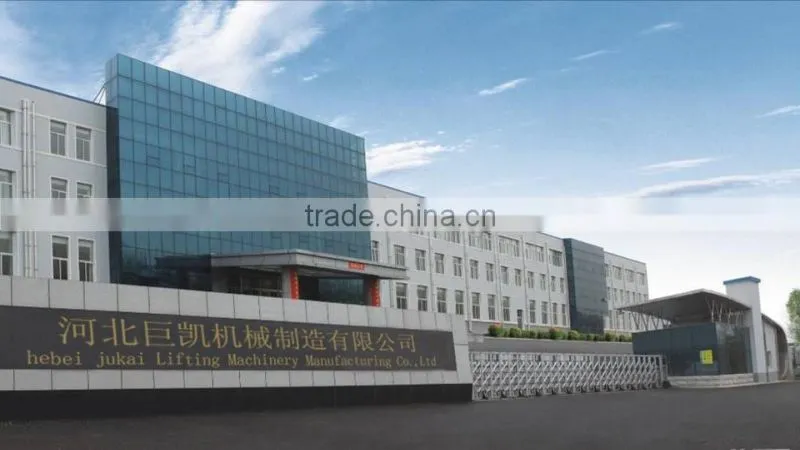

Hebei Jukai Lifting Machinery Manufacturing Co., Ltd is specialized in producing high quality lifting equipments with competitive price. Our main items are manual chain hoist, lever hoist and electric hoists and so on. Our brand is Jinfeng and OEM is also accepted by us.
We have established complete quality control system, and have got ISO 9001, CE and GS certificates. For each order, strict inspection will be carried out by the QC department before shipping.
Q: What is our factory product range?

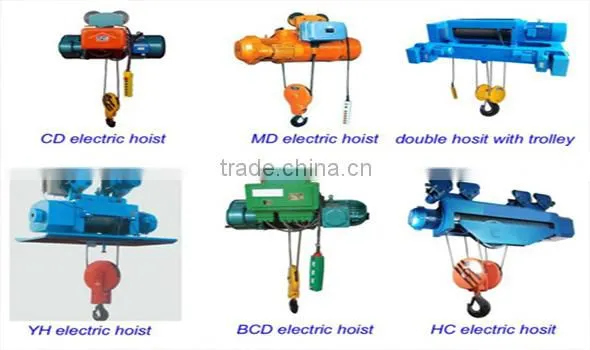

A: Electric wire rope hoist, electric chain hoist, chain block, lever hoist, chain, trolley, webbing sling etc.
Q: What information should I provide if I want to order the products?
A:
1) Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color and packing requirements),
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/air port.
4) Forwarder's contact details if there is any in China.
Is your product customized?
A:
Yes, we can customize the products according to your detailed requirements, so we will appreciate it very much if you tell us more indormation about the capacity, lifting height and packing requirements etc.
Q: How about your payment terms?
A: 30% deposit, with the balance before delivery, we accept T/T, Western Union and L/C at sight
Q: Can I use our own logo?
A:Yes, we can produce by using your own logo if you need.
Q: What’s the sample policy?
A: We can send you 1pc of sample for your test, but you need to pay for the sample fee and delivery expenses, as it's our company's rule. Pls contact us for the sample details.
Other products
Our advantage:
1) We have own factory, so we can give you the competitive prices, with high quality.
2) The quality of the products by the China People’s Insurance company(PICC).
3) Hebei Jukai Lifting Machinery Manufacturing Co., Ltd Indurstry benchmarking Enterprises
4) There in no customers complaints in three years.
5) Over nesrly thousands of project performance.
