HSH-C Type Lever Block,lever Hoist,manual Hoist
- shanghai
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | SEAGULL or OEM pointed brand | Model Number | HSH-C | |
| Usage | Construction Hoist | Power Source | Lever | |
| Sling Type | Chain | Maximum Lifting Weight | 6T | |
| Maximum Lifting Height | 18M | Certification | CE&GS | |
| Warranty | 1 year |
Product Description

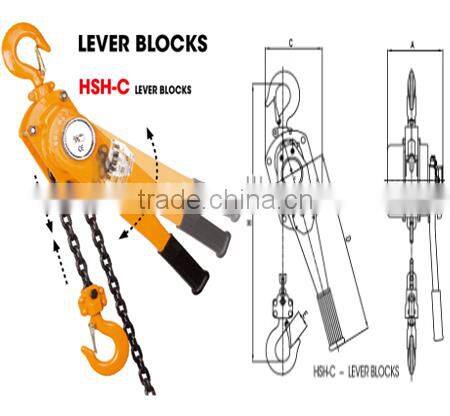

HSH-C type lever block.
Lever block
*Capacity from 0.75T to 6T.
*Bearings inside load chain sprocket increase mechanical efficiency.
*Chain guides provide smooth chain operation .
*lightweight steel construction with durable powder coat finish.
*Drop forged hooks and hook holders, heat treated to ensure the safety and durability.
*Gear assembly provide smooth operation by little hand efforts.
*T80 grade high tensile lifting chain make more effective.
*CE CERTIFIED.
*One year guarantee.
HSH-C LEVER BLOCKS | |||||
Model | HSH-7.5C | HSH-10C | HSH-15C | HSH-30C | HSH-60C |
Rated load(T) | 0.75 | 1 | 1.5 | 3 | 6 |
Test load(T) | 1.125 | 1.5 | 2.25 | 4.5 | 9 |
Standard lift(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Min. distance between two hooks(mm) | 147 | 196 | 244 | 372 | 382 |
Efforts required at capacity(N) | 140 | 186 | 234 | 363 | 370 |
No. of load chains | 1 | 4 | 1 | 1 | 2 |
Diameter of load chain(mm) | 6 | 6 | 7.1 | 10 | 10 |
Dimensions(mm) A B C D E | 148 128 295 256 26 | 148 128 310 256 26 | 163 148 335 368 30 | 191 181 405 368 34 | 191 244 550 368 47 |
Net weight(kg) | 7.3 | 7.8 | 10.4 | 17.2 | 26 |
1.Why choose us?
Seagull has more than 20 years experience on this lifting equipments field. All our sales work in seagull more than 10 years. We will feedback your email within 8 hours. We keep control defect lifting equipments under 0.01% over 15 years continuously. This means, we has the preview problems ability Therefore, We make sure to avoid any risk happen if you make a wise choose on seagull.
2.How about sample policy?
We accept sample order. Please inform your detailed sample requirement, such as the model, the capacity, the lifting height and so on. If we have the sample in stock , the ship will be quicker. If we don’t have stock, please understand to wait for the produce. The sample fee and express fee usually paid by client, for special policy need to apply by client and approved by our leaders.
3.How to make an order?
Please send us your purchase order by Email or Fax,
1) Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color and packing requirement),
2) Delivery time required.
3) Customer information: Company name, Address, Phone number, Destination seaport/airport. 4) Ship by FOB or CIF or CNF.
4.Which payment way is available?
30% T/T at advance, 70% T/T by copy of B/L.
100% L/C at sight(long cooperation ).
5.What import customers you are cooperation?
CM,MSC USA ,JET Canada,TRACTEL France, BEAVER Austrialia,HFS Austria,HHH Japan,etc.
