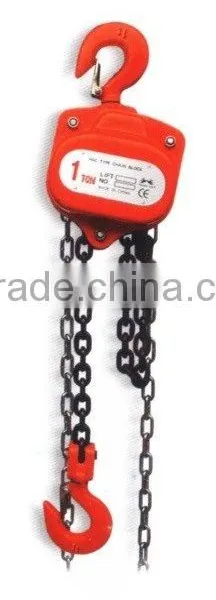

Chain Block
- 0 per Month
- Explosion proof electric hoist with curved rail on top of LNG storage tank
- Explosion proof electric hoist with curved rail on top of LNG storage tank
- Low Head Room Wire Rope Electric Hoist
- Stage Chain Hoist Fashion Mini Cool Design
- Wholesale manual hand operated hoist HSZ chain pulley block hoist for factory
- manual door frame pallet stacker
Product Details
Place of Origin: | Chongqing, China | Model Number: | 1Ton - 5Ton | Usage: | Construction Hoist |
Power Source: | Hand Chain | Sling Type: | Chain | Maximum Lifting Weight: | 5Ton |
Maximum Lifting Height: | 12M |
Product Description
Specifications
VITAL TYPE chain blockModel |
| HSC-K1 | HSC-K1.5 | HSC-K2 | HSC-K3 | HSC-K5 | |
Capacity | Ton | 1 | 1.5 | 2 | 3 | 5 | |
Lift | m | 2.5 | 2.5 | 3 | 3 | 3 | |
Test Load | Ton | 1.25 | 1.88 | 2.5 | 3.75 | 6.3 | |
Min.DistaMin. Between Hooks | mm | 360 | 385 | 430 | 490 | 675 | |
Chain pull to lift full load | N | 330 | 340 | 340 | 350 | 390 | |
Specification of load chain | mm | 6.3x19 | 7.1x21 | 8x24 | 7.1x21 | 9x27 | |
No. of load chain |
| 1 | 1 | 1 | 2 | 2 | |
Diameter of load chain | mm | 5x22 | 5x22 | 5x23.5 | 5x22 | 5x23.5 | |
Dimensions | mm | A | 156 | 176 | 223 | 223 | 252 |
B | 151 | 151 | 183 | 151 | 183 | ||
C | 61 | 60 | 67 | 106 | 133 | ||
D | 31 | 44 | 58 | 85 | 64 | ||
E | 33 | 38 | 40 | 44 | 49 | ||
39 | 43 | 45 | 52 | 58 | |||
Net weight | kg | 11.3 | 13.2 | 20.7 | 21.6 | 29.3 | |
Packing measurement(LXWXH) | cm | 24*19*18 | 26*21*18 | 32*21*20 | 31*23*18 | 40*31*20 | |
Extra weight per meter of extra lift | kg | 1.7 | 2 | 2.3 | 3.1 | 4.4 |
