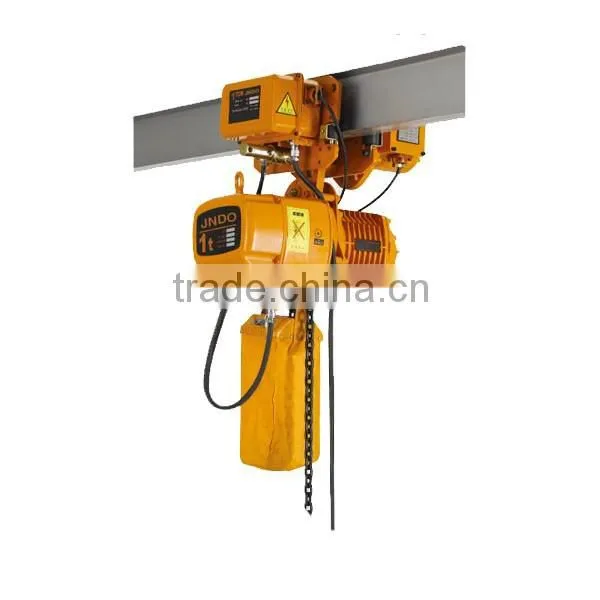

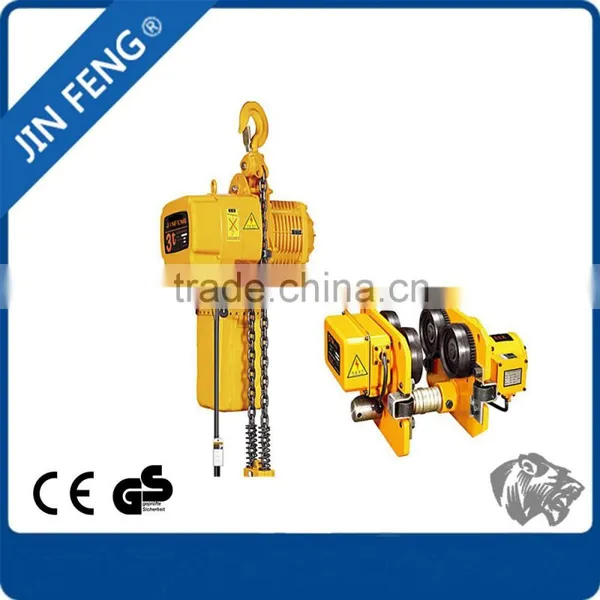

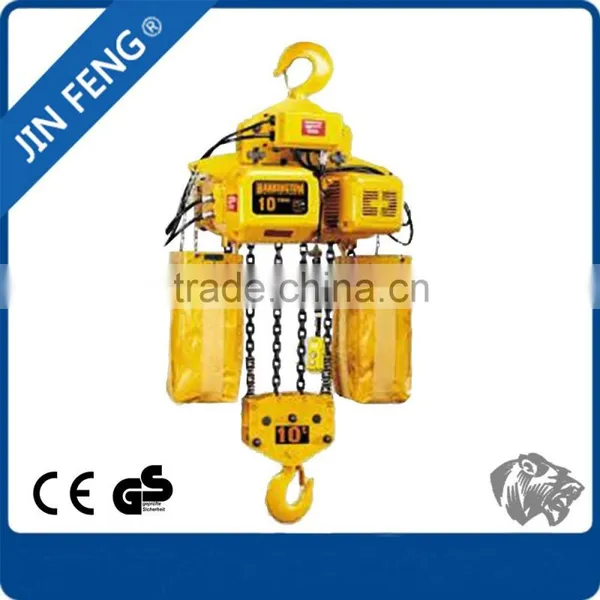

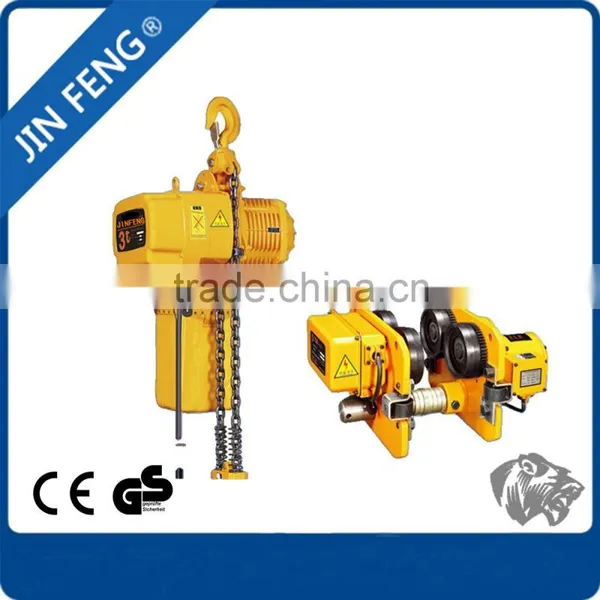

100m electric chain hoist 1phase 220v/110v electric chain hoist
| Type | WBH00501SE | WBH01001SE | WBH01501SE | WBH02001SE | WBH02501SE | WBH03001SE | |
| Capacity(t) | 0.5 | 1 | 1.5 | 2 | 2.5 | 3 | |
| Standard Lifting Height(m) | 3 | ||||||
| Lifting Speed(m) | 6.8 | 6.6 | 8.8 | 6.6 | 5.4 | 5.4 | |
| Lifting Motor | Power(kw) | 0.75 | 1.5 | 3.0 | 3.0 | 3.0 | 3.0 |
| Rotation Speed(r/min) | 1440 | ||||||
| Phases | 3 | ||||||
| Voltage(v) | 200-440 | ||||||
| Frequency(Hz) | 50 | ||||||
| Operating Motor | Power(kw) | 0.4 | 0.4 | 0.4 | 0.4 | 0.75 | 0.75 |
| Rotation Speed(r/min) | 1440 | ||||||
| Operating Speed(m/min) | 11/21 | ||||||
| Phases | 3 | ||||||
| Voltage(V) | 200-440 | ||||||
| Frequency(Hz) | 50 | ||||||
| Chain Turns | 1 | ||||||
| Chain Specification | Ø6.3 | Ø7.1 | Ø10.0 | Ø10.0 | Ø11.2 | Ø11.2 | |
| Test Load(t) | 0.625 | 1.25 | 1.875 | 2.5 | 3.125 | 3.75 | |
| Weight(kg) | 47 | 61 | 108 | 115 | 116 | 122 | |
| I-Beam(mm) | 58-153 | 58-153 | 82-178 | 82-178 | 100-178 | 100-178 | |
| Weight Added with 1m Higher(kg) | 0.81 | 1.1 | 2.3 | 2.3 | 2.8 | 2.8 |
|
Detailed Information:
Shell:It is made of light aluminum alloy shell,light but hard.The cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40% and continous service.
The integral enclosed structure is applicable to places like chemical plant and electroplate factory.
Side magnetic braking device:The magnetic orce generator is the latest design which is featured for generating magnetic force.It allows instant brake as soon as the electric power is cut off.Thus the braking safety while loading is guaranteed.
Limit switch:The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
Chain:The chain shall adopt the imported FEC80 ultraheat-treatable steel alloy chain.
It can be safely used in poor environments such as rain,sea water and chemicals.
Electromagnetic contactor:Electromagnetic contactor can be used safely under high frequency.
Inverse phase sequence protecting device:It is sepcial electrical installation which controls the circuit not to work in case of wiring error in the power supply.
Gear:The gear made of alloy steel and through the heat treatment.
Protection class(hoist and push bottom):IP54&IP65
Power supply:3 phase,200-600v,50/60Hz
ISO:M4 FEM:1AM(M5 customized available)
Noise(single/double speed):81dB

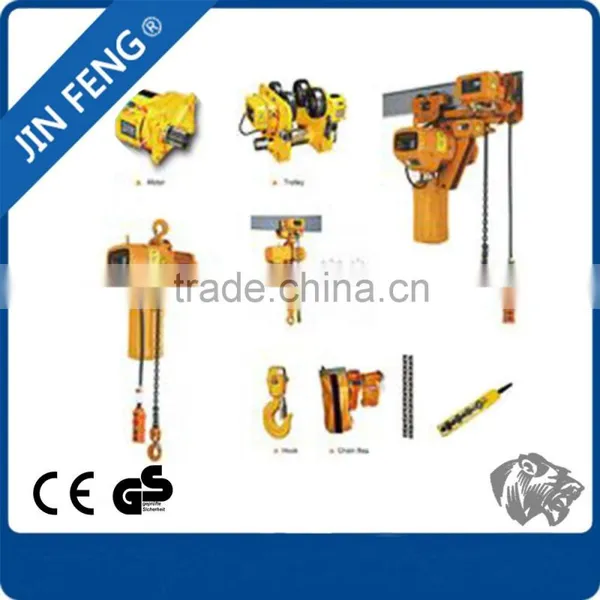

Pictures
Other products
We are Hebei Jukai Lifting Machinery Manufacturing Co., Ltd, and we are mainly produce Chain hoist , lever hoist and Electric hoist more than 20 years, with the customers sperade all over at home and abroad.
Our advantage:
1) We have own factory, so we can give you the competitive prices, with high quality.
2) The quality of the products by the China People’s Insurance company(PICC).
3) Hebei Jukai Lifting Machinery Manufacturing Co., Ltd Indurstry benchmarking Enterprises
4) There in no customers complaints in three years.
5) Over nesrly thousands of project performance.

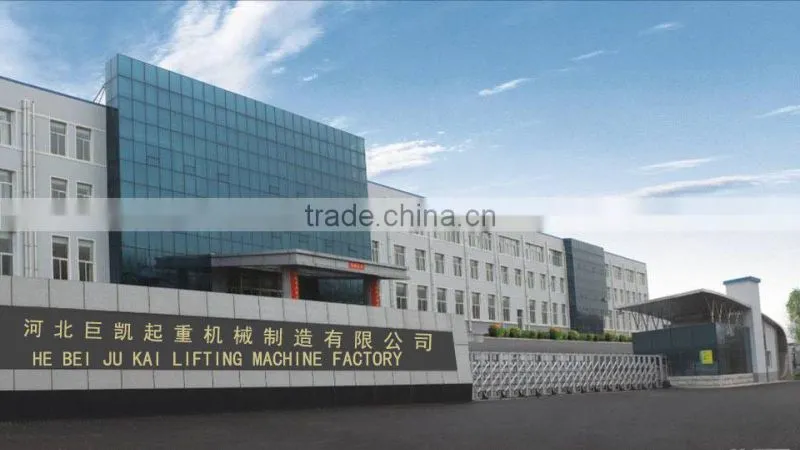

Hebei JuKai Lifting Machinery Manufacturing Co., Ltd. is a manufacturer of chain block with well-equipped testing facilities and strong technical force.
With good quality, reasonable prices and stylish designs, our products are extensively used in construction, mining, agriculture and other industries.
Our products are widely recognized and trusted by users and can meet continuously changing of economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
1. Q: What is our factory product range?
A:1) We are specialize in chain block, lever block, electric hoist, webbing sling, cargo lashing, hydraulic jack, forklift, mini crane, etc.
2) Hoist Accessories: Load chain, wire rope, rigging, hook ,pulley and shackles.
2.Q:How about sample policy?
A: Welcome sample order. Please inform your detailed sample requirement, such as the quantity, the capacity, the chain, the lift and so on. If we have the sample in stock , the ship will be quicker. If we don’t have stock, please understand to wait for the produce. Express fee is charged by the shipping company. The sample fee and express fee usually paid by client, for special policy need to apply by client and approved by our leaders.
3. Q: How to order? SZ-K chain hoist HSZ-K chain hoist
A: Please send us your purchase order by Email or Fax, or you can ask us to send you Perform Invoice for your order. We need to know the following information for your order:
1) Product information: Quantity, Specification (capacity, lifting height, voltage, size, material, color and packing requirement),
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/airport.
4) Forwarder's contact details if there is any in China.
4. Q: What are the trade terms we can be accepted?
A: EXW, FOB, CFR, CIF.
