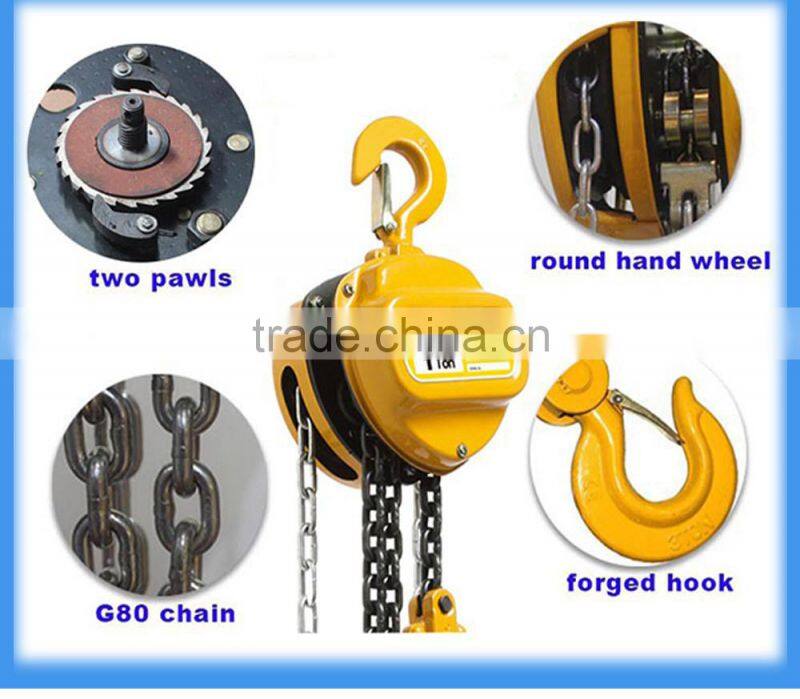

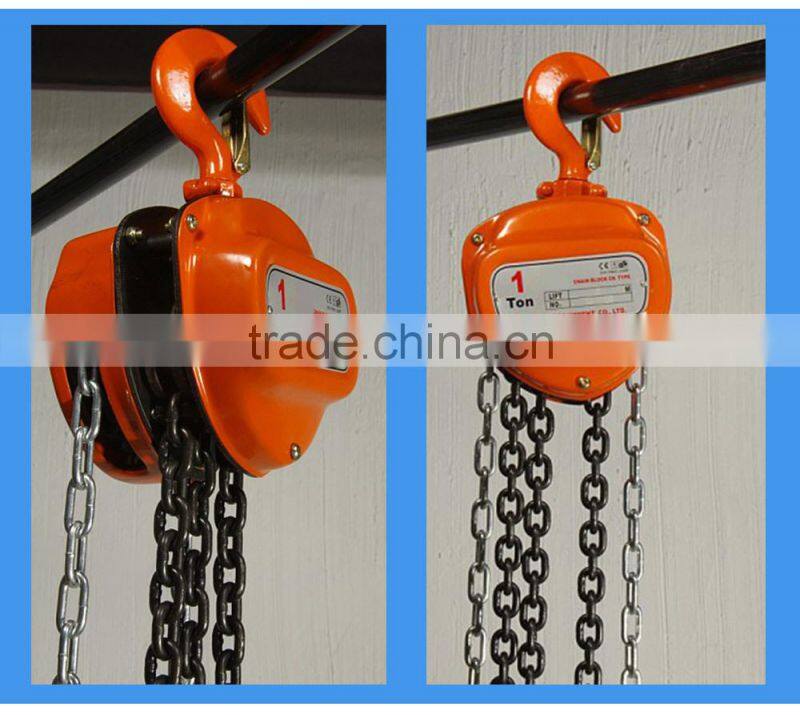

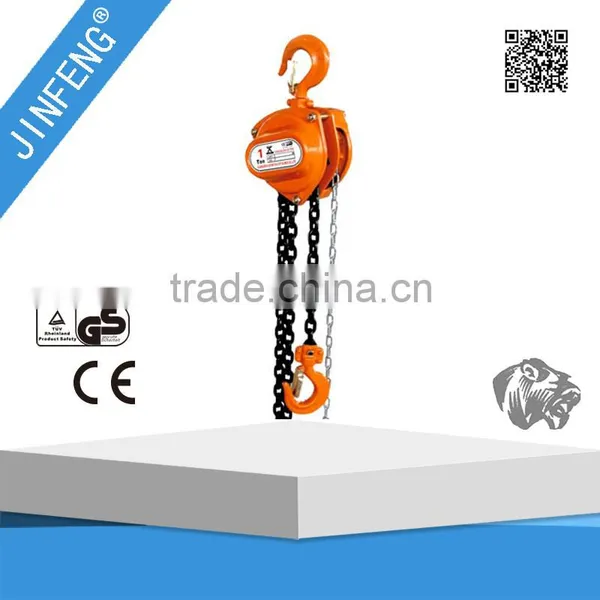

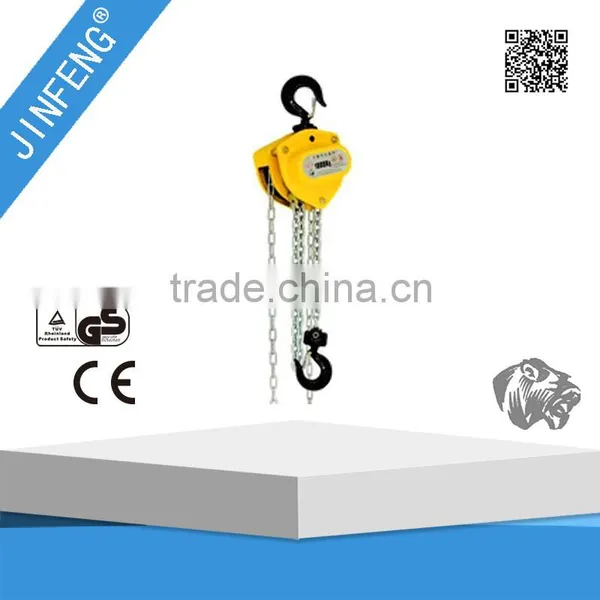

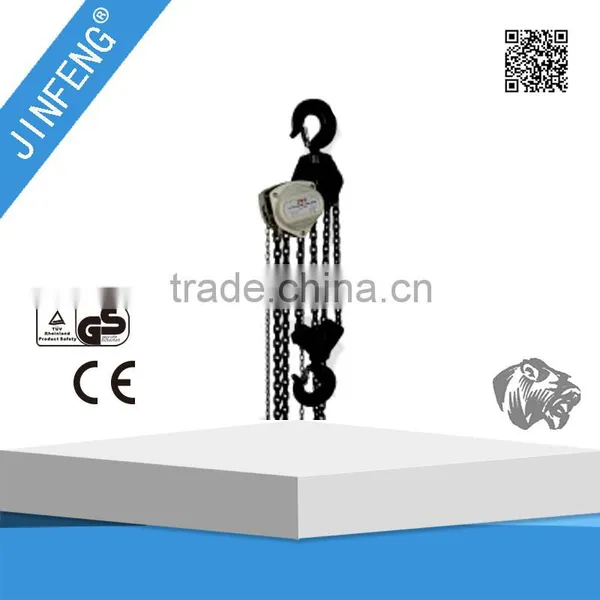

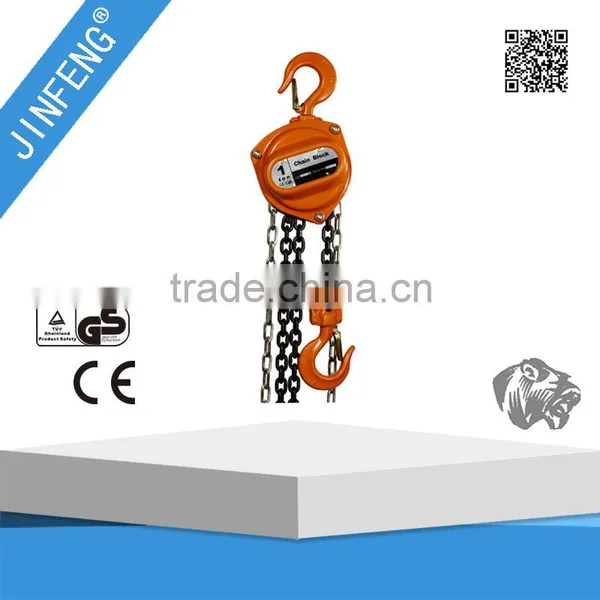

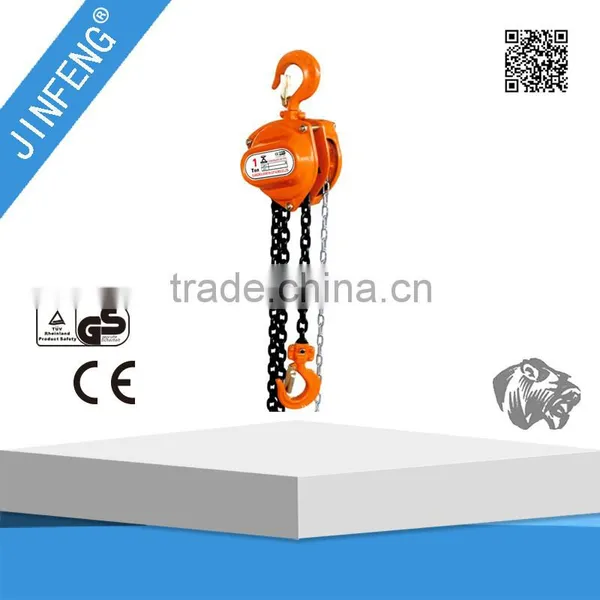

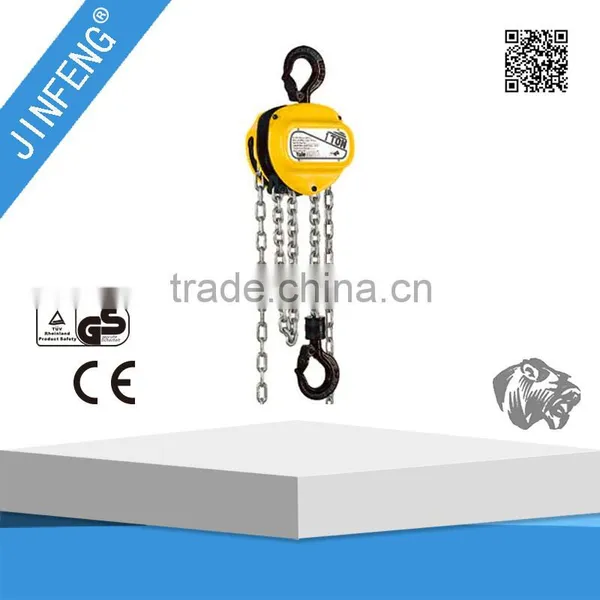

Jukai Lifting Products Manual machines Chain Block
- 100000 Set / Sets per Month
- Shanghai /Tianjin/ Ningbo Port
- T/T L/C D/P D/A Credit Card PayPal
- Explosion proof electric hoist with curved rail on top of LNG storage tank
- Explosion proof electric hoist with curved rail on top of LNG storage tank
- Low Head Room Wire Rope Electric Hoist
- Stage Chain Hoist Fashion Mini Cool Design
- Wholesale manual hand operated hoist HSZ chain pulley block hoist for factory
- manual door frame pallet stacker
Product Details
Condition: | New | Place of Origin: | Hebei, China | Brand Name: | chian block |
Model Number: | chain block | Usage: | Construction Hoist | Power Source: | Lever |
Sling Type: | Chain | Maximum Lifting Weight: | 10 ton | Maximum Lifting Height: | 12 m |
Lift Speed: | depends | Certification: | CE ISO TUV SGS | Warranty: | 2 years |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Chain block Chain hoist Chain block hoist Type | |||||||||
Model |
HSC-0.5
| HSC-1 |
HSC-1.5
|
HSC-2
| HSC-3 | HSC-5 | HSC-10 | HSC-20 | |
Capacity(t) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
Standard Lift (m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
Test load (t) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 12.5 | 25 | |
Mini distance between two hook (mm) | 225 | 306 | 368 | 444 | 486 | 616 | 700 | 1000 | |
Chain tension(with full load)(N) | 221 | 304 | 343 | 314 | 343 | 383 | 392 | 392 | |
Lifting chain No. | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
Round steel diameter of chain(mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |
Main dimension(mm) | A | 125 | 147 | 183 | 147 | 183 | 215 | 360.5 | 585 |
B | 111 | 126 | 141 | 126 | 141 | 163 | 163 | 191 |
