wear-resisting hdpe pond liner sheet/anti-wear liner for truck&bunker/non-stick liner for construction

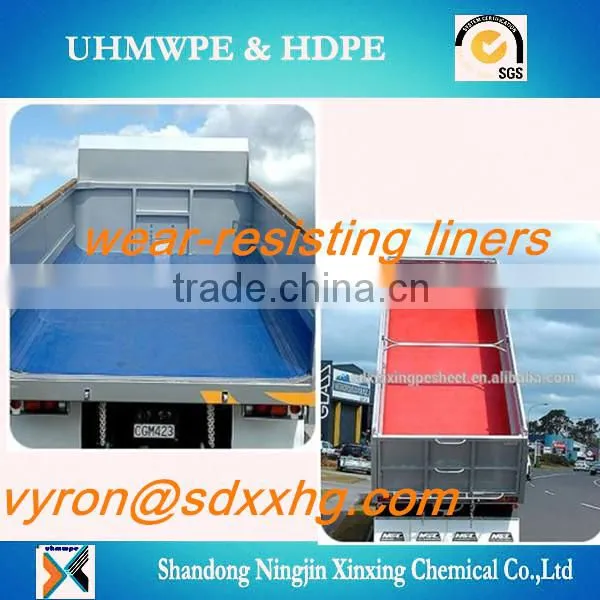

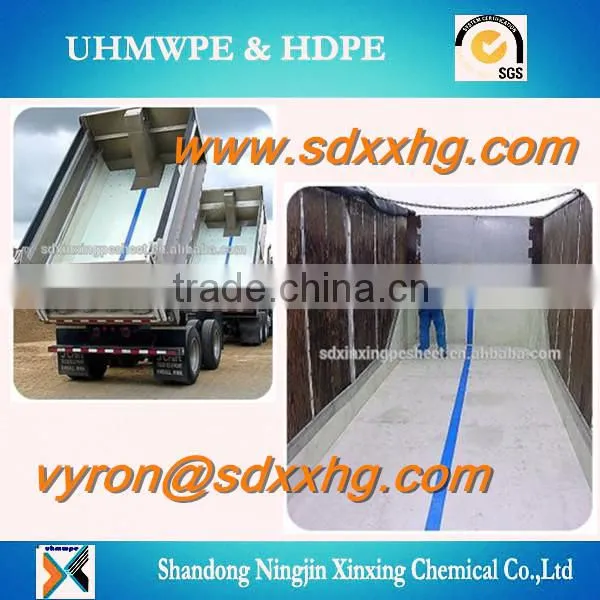

Introducton of UHMW-PE liner sheet for truck
Ultra-high-molecular-weihgt polyethylene (UHMWPE, UHMW) is a subset of the thermoplastic polyethylene. Also know as high-modulus polyethylene, (HMPE), or high-performance olyethylene (HDPE), it has extremely long chains, with a molecular mass usually between 2 and 6 million u. The longer chain serves to transfer load more dffectively to the polymer backbone by strengthening inermolecular ineractions. This results in a very tough materal, with the highest impact strength of any thrmoplastic presently made.
UHMWPE is odorless, tasteless, and nontoxic. It id highly resistant to corosive chemicals ecept oxidizing acids; has extremely low moisture absorption and a very low coefficient of friction; is self-lubricating; and is highly resistant to abrasion, in some forms being 15times more resistant to abrasion than carbon steel. Its coefficient of friction is significantly lower than that of nylon and acetal, and is comparable to that of olytetrafluoroethylene (PTFE,Tefion), but UHMWPE has better abrasion resistance than PTFE.
Features of UHMW-PE liner sheet for truck
Best shock resistance even in low temperature
Low frictional factor, and well sliding bearing material
Lubricity
Best chemical corrosion resistance and stress craze resistance
Machinery process ability
Lowest water absorption(<0.01%)
Paragon electric insulativity and antistatic behavior
Nice high energy radioactive resistance
Abrasive resistance which always have in thermoelectricity polymer
Density is lower than other thermoplastics(<1g/m3)
Long using temperature range: -269℃~90℃
Applications of UHMW-PE sheet
1. Textile Industry 2. Chemical Industry
3. Food Processing Industry 4.Paper Industry
5. Material Handing 6. Farm Implement
7. Ming & Metals Processing Industries 8. Transportation
9. Consumer Products 10. Waste Water Treatment
For exmple
Marine bumper panel; Synthetic ice baord;

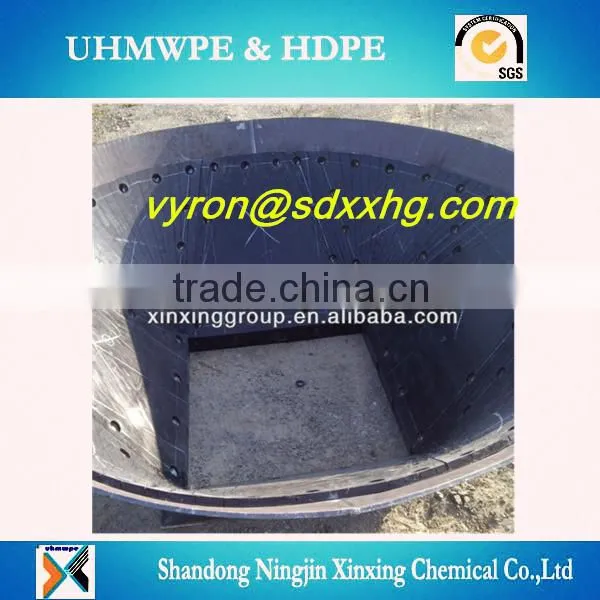

Coal bunker; Coal chute; Cylindrical mixer; Truck,bulldozer,ship
The properties of UHMW-PE chute bin liner:
Property |
Unit |
Value |
Density |
g/cm3 |
0.93-0.96 |
Average molecular weight |
g/mol |
3million- 10 million |
Tensile strength (23°C in air) |
MPa |
22 |
Breaking strength |
MPa |
42 |
Tensile strain at break |
% |
600 |
Charpy impact strength (notched) |
mJ/mm2 |
No break |
Ball indentation hardness |
N/mm2 |
42 |
Shore D hardness |
-- |
65-70 |
Abrasion |
% |
70-80, steel = 100 |
Static Friction Coefficient |
-- |
≤0.16 |
Kinetic Friction Coefficient |
-- |
≤0.10 |
Water Absorption |
-- |
NIL |
Elongation at break at 23 degress |
% |
≥300 |
Temperature resistance |
°C |
-269 to +85 |
Melt Temperature |
°C |
130-140 |
Guarantee
The UHMW-PE or HDPE plastic liner sheet for truck is made of great material.
The UHMW-PE or HDPE plastic liner sheet for truck can be used at least 10 years.
The UHMW-PE or HDPE plastic liner sheet for truck supplied to you with competitive price.
The properties will be excellent worked.
Craft
In our company have 3 moulding press and 1 extruding machine.
The product can be cut by CNC according to your requirements.
In our company more than 20 researchers.
The UHMW-PE or HDPE plastic liner sheet for truck will be supplied to you with high quality.
If you have a question or need further assistance,
please do not hesitate to contact us
whenever you wish.
Xingxing Products Range
UHMWPE sheet,UHMWPE board,UHMWPE panel,UHMWPE plate,UHMWPE rod,Extruded UHMWPE rod,UHMWPE bunker liner,UHMWPE coal bin liner,UHMEPE hopper liner,UHMWPE tipper liner,UHMWPE chute liner,UHMWPE silo liner,UHMWPE truck bed liner,UHMWPE screw conveyor liner,UHMWPE park lot wheel stop,UHMWPE guide track,wear strips.UHMWPE filter plate,UHMWPE marine fender facing pad,UHMWPE parts,UHMWPE pad,UHMWPE dock bumper,UHMWPE suction box covers,UHMWPE outrigger pads
Extruded HDPE sheet,HDPE sheet,HDPE bar,HDPE track mats,HDPE parts,HDPE rod.
PP sheet,PVC sheet and Other Engineering Plastic Products.
Shandong Ningjin Xinxing Chemical Co.,Ltd. is one of the largest Engineering Plastic products manufacture in China.All the stuff in our company are dedicated to producing satisfying products and developing new products for our customer. | |
Sheet ,HDPE Sheet ,PP Sheet ,Urethane Sheet ,PVC sheet and other Engineering plastic products. | |
