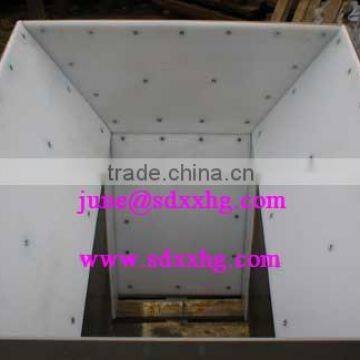

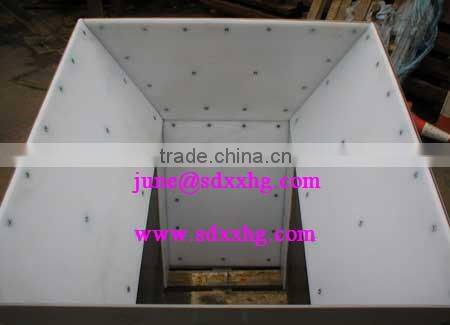

Feed Hopper Liner/chute Liner/silo Liner Made for UHMWPEUS$ 3 - 5MOQ: 500 Kilograms
-
UHMWPE Coal Bin Liner/Hopper Liner/high Hardness UHMWPEl LinerUS$ 3 - 5MOQ: 500 Kilograms
-

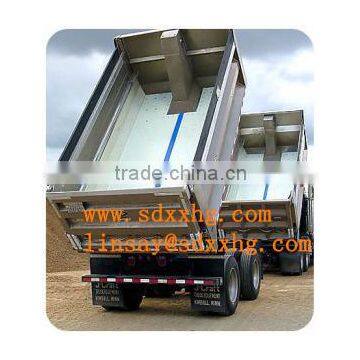

Uhmwpe Truck Bed Liner\pe Dump Truck Liners\Super Slide Corrosion Resisting Bed Lining SheetUS$ 3 - 5MOQ: 500 Kilograms
-
Abrasion Resisting UHMWPE Plastic Truck Bed Liner/hopper LinerUS$ 3 - 5MOQ: 500 Kilograms
wear-resisting hdpe pond liner sheet
HDPE geomembrane features
Good mechanical properties, high tear strength, deformation and adaptable, puncture resistance, anti-aging, anti-ultraviolet-resistant, Anti oil and salt, pH, anti-corrosion, high temperature-resistant, non-toxic, long service life. water, drainage, seepage, the good effect of moisture, width, thickness of the full range of specifications and low cost, simple construction
HDPE geomembrane characteristic
1.High tensile strength, good elasticity: impervious geomembrane with high strength and high tensile mechanical properties, excellent elasticity and deformation capacity of strong base makes it ideal for expansion or contraction, can effectively overcome the uneven base surface subsidence.
2, impervious performance: impervious geomembrane quality high density polyethylene Virgin resin is used, are made by coextrusion technology, with high molecular density, liquid penetrant is extremely low, and anti-excellent penetration effect.
3, the construction is simple and convenient, lightweight, easy to transport: impervious geomembrane quality is light, the finished product rolled up for easy laying with a high degree of flexibility to meet the needs of different construction sites.
4, physical, chemical property: impervious geomembrane anti-aging, UV-resistant, excellent resistance to tearing, puncture resistance, brittleness, heat deformation is small, has good chemical stability, high and low temperature resistance, resistance of asphalt, tar and oil, acid, alkali, salt and other chemical solutions.
5, low cost, high overall efficiency: impervious geomembrane using new technology to improve seepage control efficiency, but with more scientific, production, Super Jet, so the products cost less than traditional film; by actual measurement of impervious geomembrane in general engineering to cost-42%.
6, health, environmental protection: impervious geomembrane materials used are non-toxic environmental protection material, impervious principle is the normal physical changes, does not produce any harmful substances. A great choice for environmental protection, farming.
Shandong Ningjin Xinxing Chemical Co.,Ltd. is one of the largest Engineering Plastic products manufacture in China.All the stuff in our company are dedicated to producing satisfying products and developing new products for our customer. | |
Sheet ,HDPE Sheet ,PP Sheet ,Urethane Sheet ,PVC sheet and other Engineering plastic products. | |
Product information
| NO | Item | Value | ||||||
| 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm | 3.00mm | ||
| 1 | Density (g/cm2) | 0.939 | ||||||
| 2 | Tensile propeties | |||||||
| Yield strength (N/mm) | 11 | 15 | 18 | 22 | 29 | 37 | 44 | |
| Break strength (N/mm) | 20 | 27 | 33 | 40 | 53 | 67 | 80 | |
| Yield elongation (%) | 12 | |||||||
| Break elongation (%) | ≥450 | |||||||
| 3 | Tear resistance (N) | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
| 4 | Puncture resistance (N) | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| 5 | Stree crack tensistance (h) | ≥1500 | ||||||
| 6 | Carbon black | |||||||
| Carbon black content (%) | 2.0-3.0 | |||||||
| Carbon black dispersion | Carbon black dispersion (only near spherical agglomerates)fo r10 different | |||||||
| views 9 in categories 1 or 2 and 1 in category3 | ||||||||
| 7 | Oxidative induction time(OIT) | |||||||
| Standard OIT(min) | 100 | |||||||
| High pressure OIT(min) | 400 | |||||||
| 8 | Oven aging at 85°C | |||||||
| Standard OIT-% retained after 90 days (%) | 55 | |||||||
| High pressure OIT-% retained after 90 days (%) | 80 | |||||||
| 9 | UV Resistance | |||||||
| Standard OIT retained after 1600 hrs (%) | 50 | |||||||
| High pressure OITretained after 1600 hrs (%) | 50 | |||||||
| 10 | Low tempreture impact brittle property at -70°C | Pass | ||||||
| 11 | Premeability ( g.cm/(cm2).Pa) | ≤1.0×10-13 | ||||||
| 12 | Dimensional stability (%) | ±2 | ||||||
Advantages
- 1. strong viscosity, cold pressing sensitive
- 2. color white/black
- 3. accurate size cutting
- 4. custom size offered without any surcharge
CONTACT US:
Shandong Ningjin Xinxing Chemical Co.,Ltd
Liaohe Road,Ningjin Industry zone,Shandong,China
