Solar irrigation system for agricultural irrigation
- 3000 Set / Sets per Month
- Wuhan Ningbo Shanghai Shenzhen for Solar irrigation system
- T/T D/P D/A Credit Card PayPal
- Economic price 100w 200w 300w 400watt ABS Housing Solar Cell All In One Integrated Solar Street Light
- Wall Mounted Lifepo4 51.2v 100ah 200ah Lfp battery for Solar System
- 10kwh 20kwh Home Solar Lithium 48v 200ah LiFePO4 Battery
- Residential 5kw Complete Solar Panel Kit For Home Solar Power System With Lithium Or Lead Acid Battery
- Home Hybrid Solar 10KW 40KW 50KW Whole Set Kit Solar Energy System Home Hybrid Solar Power System
- TENTEK TON-5150S stackable solid-state Lithium battery
Product Details
Place of Origin: | Hubei, China | Brand Name: | OEM | Model Number: | Solar System SP 5kw 10KW |
Specification: | Normal | Application: | Home | Output Voltage (V): | 110V/220V |
Load Power (W): | 5000w 10kw 15KW | Solar Power (W): | 10KW | Work Time (h): | 24 Hours |
Product Description
Solar irrigation system for agricultural irrigation:
1. Components:solar PV arry, solar pumping inverter, pumps
2.Product Description:

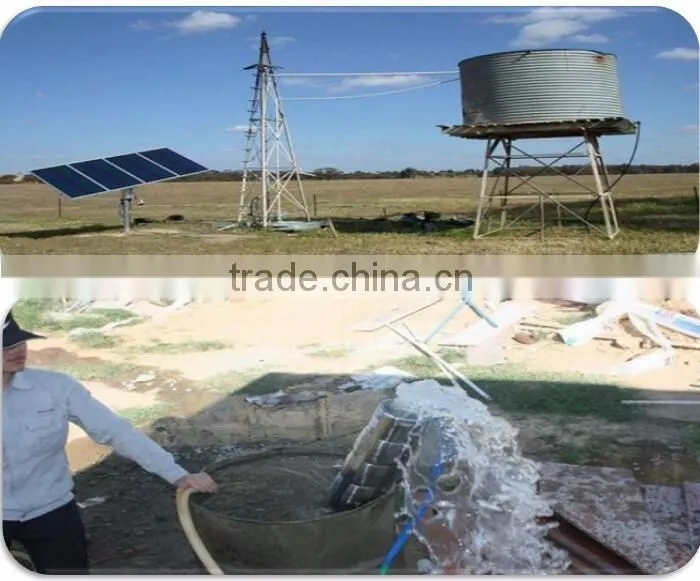

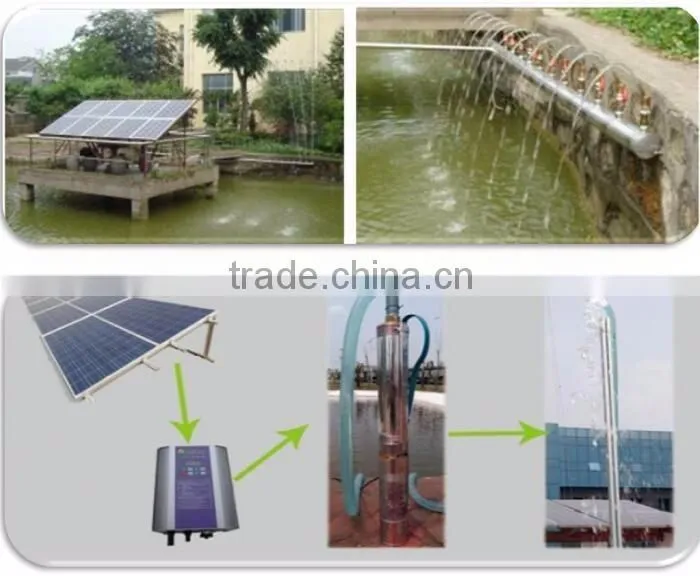

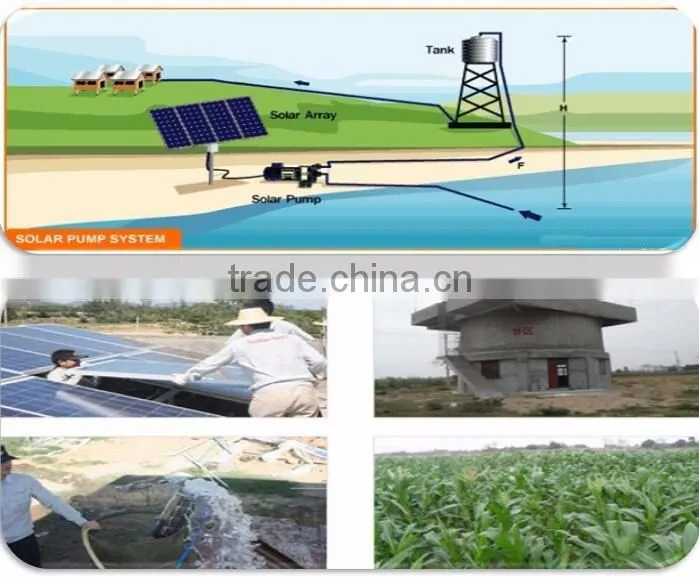

Pumping system consists of three components: solar modules, inverters and PV pumping phase AC pumps. Solar array comprised of a plurality of solar cell module strings connected in parallel, to absorb solar radiation energy and convert it to electricity to provide power supply for the entire system. Solar pumping inverter for operation of the system to implement control and regulation, will convert the direct current into alternating current issue of the solar array drive water pump, and adjust the output frequency according to changes in sunlight intensity in real time, to achieve the maximum power point tracking, to maximize the use solar energy. Pump consists of a three-phase AC motor, pump water from deep wells, water injection tank / pool, or direct access to irrigation systems. According to the actual system requirements and installation conditions, the pump can be used in different types of work.
3.Working Principle:
Solar pumping systems take the power by lasting energy from the sun , direct drive pumps work to replace the water storage without batteries, do not set up the grid, that is made ready to use. A significant reduction in construction costs, while greatly increasing the conversion efficiency of the photovoltaic system, which is much lower than the initial investment to set up long-distance transmission lines .
4.Category:
A single solar irrigation system consists of only one pump, a power -matched solar array and an inverter . The aim of optimization is to reduce the amount of PV modules as much as possible on the premise of filling the requirement of head and capacity. The rotational speed of pump is regulated according to the irradiation on the solar array; when the sunlight reaches its peak, the pump runs at the rated speed, and the output approaches the peak power of the solar array; when the sunlight is less abundant, the speed of pump varies bellow the range of the rated speed; when the speed as low as the capacity becomes zero, the solar pumping system stops working. So, there are big differences between solar irriation systems and traditional pumping systems in system design, and the system should be optimized according to the requirements of head, capacity, and local conditions of sunlight.
•Determine the optimal average daily operating time and the range of speed governing.
•Choose the optimal head and capacity of the pump.
•Determine the maximum power of PV modules, the best working voltage and method of connection.
Optimization of Multi-pump Systems:
There are several pumps in a multi-pump system. The pumps can be driven either by only one high-power inverter, or by several matching inverters. In the case of large capacity demand, the operation of the multi-pump system is more flexible. By switching solar arrays and pumps, all of the pumps run in MPPT mode when the sunlight is abundant, while some pumps will be shut down and all solar arrays supply power intensively for the rest running pumps when irradiation is weak. Based on the optimization of single pump system, the range of speed can be further optimized, and the photovoltaic(PV) pumping system always works with high efficiency
5.Application:

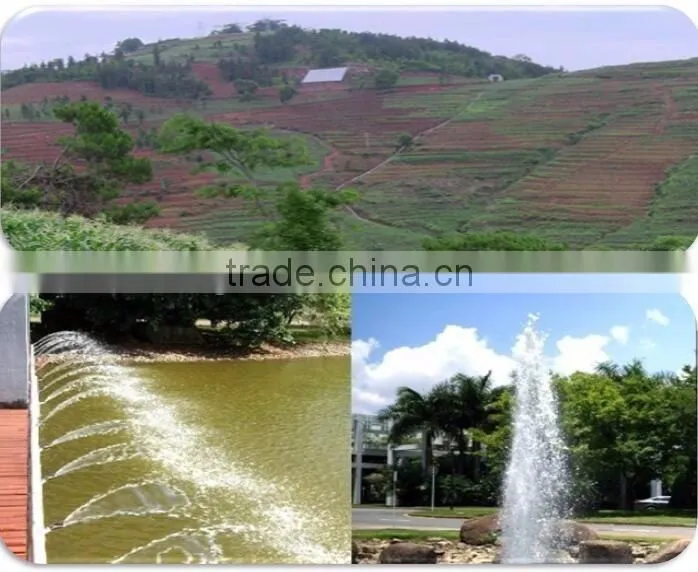

Solar Pumping System can be applied to daily use (ground water), agricultural irrigation, forestry irrigation, desert control, pasture animal husbandry, water supply for islands, wastewater treatment engineering, and so on. It is dispensed with energy storing devices, and stores water instead of electricity. It improves the reliability of the device, at the same time, it lowers the construction and maintenance costs of the irrigation system dramatically.
In recent years, with the promotion of the utilization of new energy resources, Solar Pumping System is more and more used in municipal engineering, city centre squares, parks, tourist sites, resorts and hotels, the landscapes and fountain irrigation systems in the residential areas.
6.Advantage:
Fully automatic operation for 25 years, do not need set up the grid, no storage batteries, without human duty, micro-irrigation and sprinkler irrigation and other water-saving facilities use, up to water, energy, saving time, effort, economical, environmentally friendly combined effect
