Authorized Agent-3 in 1 Soldering and Desoldering Station for Aoyue Int899A+

Authorized Agent-3 in 1 Soldering and Desoldering Station for Aoyue Int899A+ photo-1
Authorized Agent-3 in 1 Soldering and Desoldering Station for Aoyue Int899A+ photo-2
Authorized Agent-3 in 1 Soldering and Desoldering Station for Aoyue Int899A+ photo-3
Authorized Agent-3 in 1 Soldering and Desoldering Station for Aoyue Int899A+ photo-4
Authorized Agent-3 in 1 Soldering and Desoldering Station for Aoyue Int899A+ photo-5
Authorized Agent-3 in 1 Soldering and Desoldering Station for Aoyue Int899A+ photo-6
US$ 1 - 105 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
Aoyue
Payment & Shipping
Payment Methods:
Port of Shipment:
GuangZhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Guangdong, China
Brand Name Aoyue
Model Number 899A+
Dimensions 190*260*130 mm
Weight 4.5KG
Usage repair station
Certification CE
After-sales Service Provided Overseas third-party support available

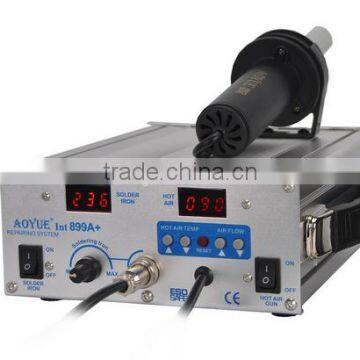

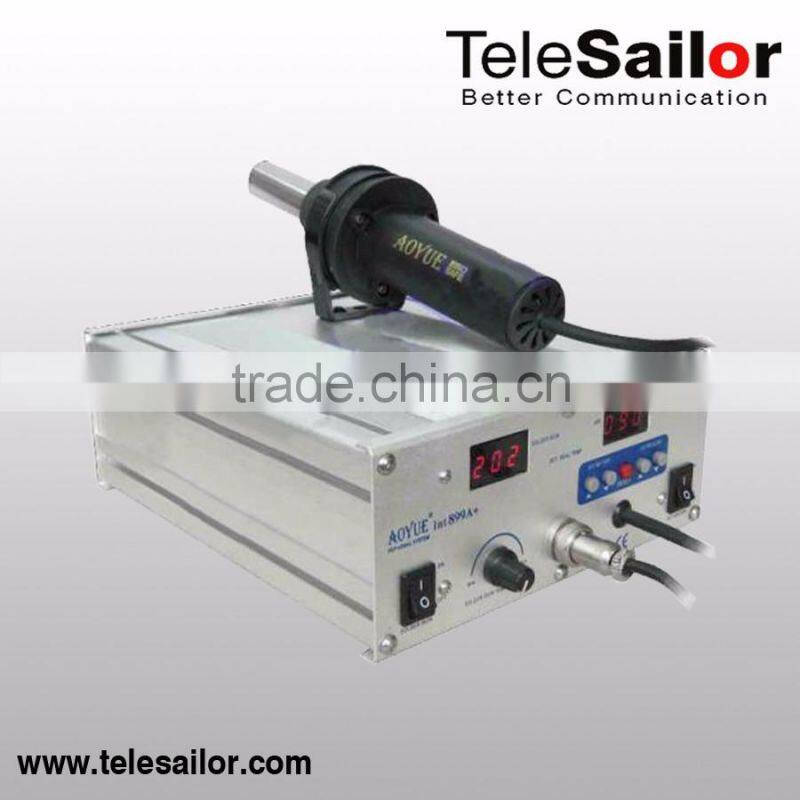

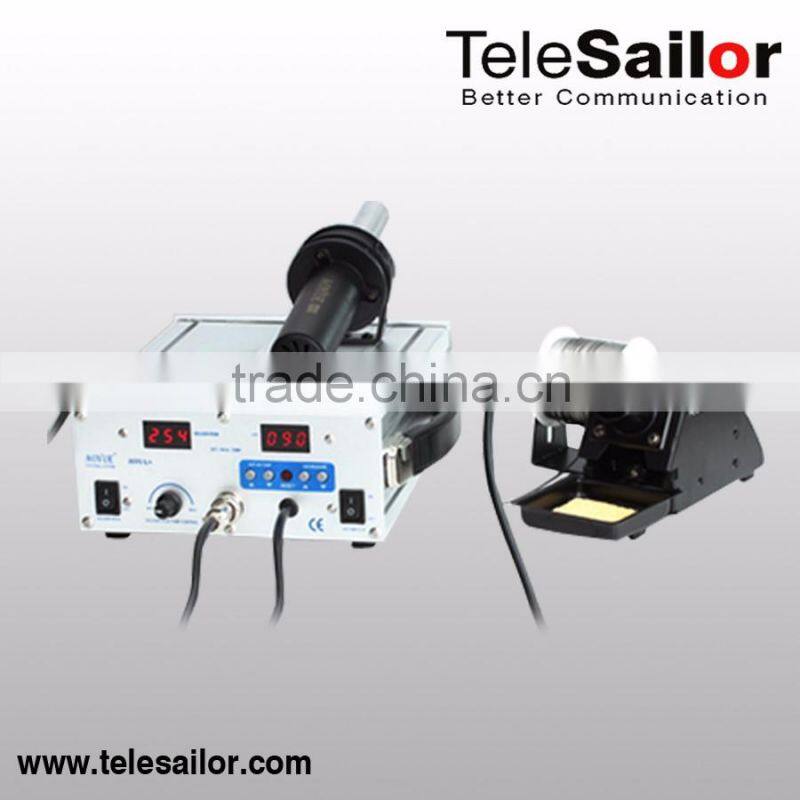

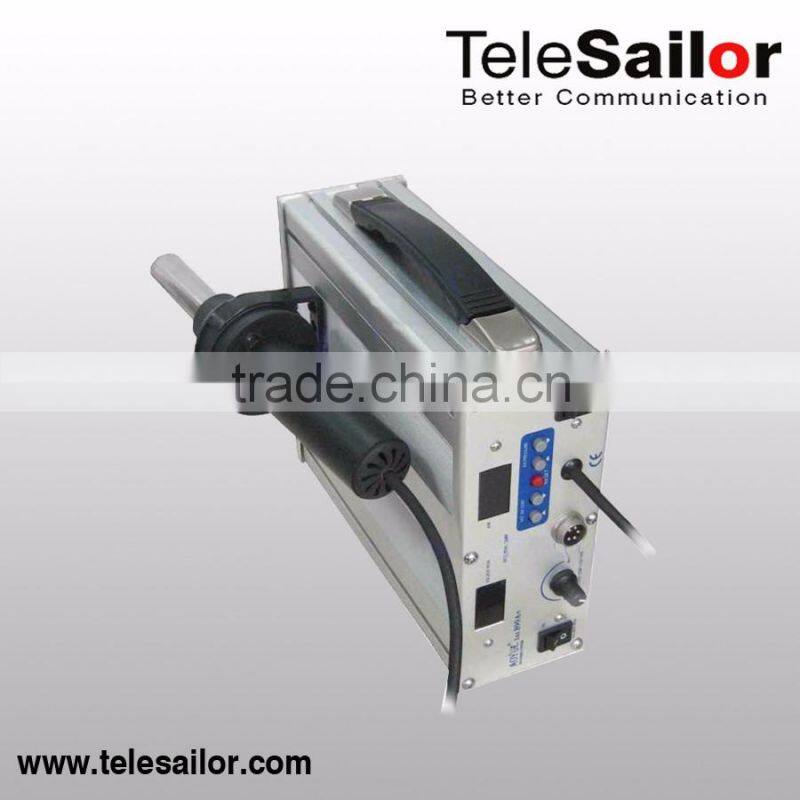

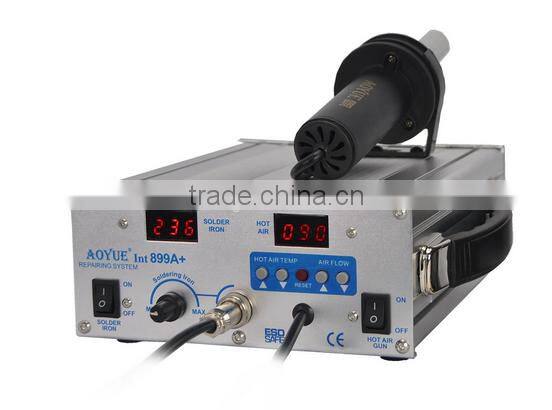

3 in 1 Soldering and Desoldering  station for Aoyue 899A+



Compact rework center including a soldering tool and a hot air best suited for reworking small chip caps and plastic connectors.



Authorized agent-3 in 1 Soldering and Desoldering station for Aoyue Int899A+Authorized agent-3 in 1 Soldering and Desoldering station for Aoyue Int899A+Authorized agent-3 in 1 Soldering and Desoldering station for Aoyue Int899A+Authorized agent-3 in 1 Soldering and Desoldering station for Aoyue Int899A+Authorized agent-3 in 1 Soldering and Desoldering station for Aoyue Int899A+Authorized agent-3 in 1 Soldering and Desoldering station for Aoyue Int899A+







l        Patent features with better function combination.

l        Microprocessor controlled.

l        Turbine motor generated, bet suited for reworking BGA, PCB′s plastic connectors as well as large surface shield and covers.

l        Digital temperature readout for easier manipulation.





Package content:

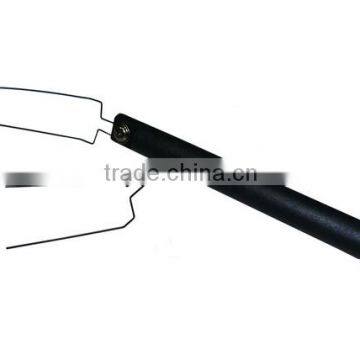

899A+ Station with hot air gun, Air nozzles (1196,1197,1313), B003 Soldering iron, 2630 Soldering iron holder, 306853 Hot air gun holder, G001 IC Popper, Power cord.



SPECIFICATION:

Power Input :

available in 110V / 220V

Station Dimensions:

188(w) x 126(h) x 250(d) mm

Weight:

4Kg

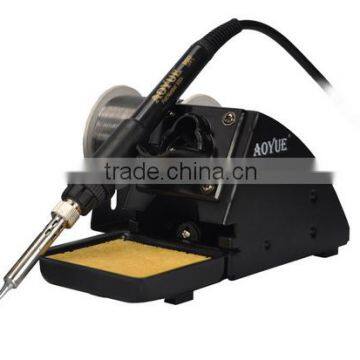

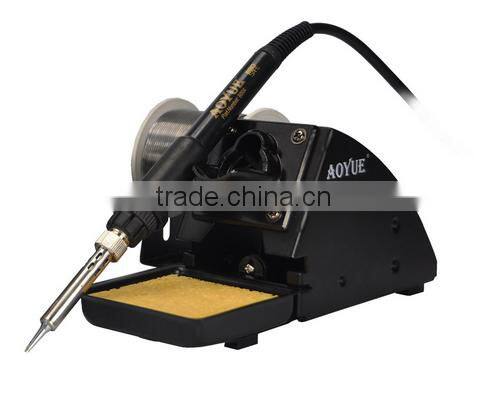

SOLDERING IRON

Power Consumption:

35W

Temperature Range:

200 - 480 degrees Celsius

Heating Element with Tip:

Ceramic Heater

Output Voltage:

24V

Tip to Ground Resistance:

Below 2 ohms

Tip to Ground Potential:

Below 2mV

HOT AIR



Power Consumption:

500W



Temperature Range:

100 - 500 degrees Celsius



Heating Element

Metal Heating Core



Nozzle to Ground Resistance:

Below 2 ohms



Pump/Motor Type:

Turbine Motor



Air Capacity:

23 L /min (max)



 Replacement Parts Code/Accessories:

C001 Soldering Iron Heating Element

10096 Hot Air Gun Heating Element

Soldering Iron Tips

Air Nozzles
