HDPE Rod,PE Welding Rod, UHMWPE Rod
- 6000 Ton / Tons per Month
- Qingdao Tianjin
- T/T
Product Details
Place of Origin: | Shandong, China | Brand Name: | XINXING | Model Number: | XXR25 |
Material: | PE | Thickness: | 5-200mm | Size: | as your request |
Product Description
HDPE Rod,PE Welding Rod, UHMWPE Rod
XINXING can make custom UHMW machined parts to your specification:
machined UHMWPE pipe, machined UHMWPE products MATERIAL DESCRIPTION
UHMW stands for ultra high molecular weight polyethylene.
Polyethylene materials are semi-crystalline materials with excellent chemical resistance, good fatigue and wear resistance, and a wide range of properties (due to differences in length of the polymer chain.)
Polyethylene materials are easy to distinguish from other plastics because they float in water.
Polyethylene materials provide good resistance to organic solvents, degreasing agents and electrolytic attack.
They have a higher impact strength, but lower working temperatures and tensile strengths than polypropylene.
They are light in weight, resistant to staining, and have low
moisture absorption rates.
Ultra High Molecular Weight Polyethylene (UHMW PE)
Light weight (1/8 the weight of mild steel), high in tensile strength, and as simple to machine as wood, UHMW PE is the ideal material for many wear parts in machinery and equipment as well as a superb lining in material handling systems and storage containers.
UHMW PE is self-lubricating, shatter resistant, long-wearing, abrasion and corrosion resistant.
It meets FDA and USDA acceptance for food and pharmaceutical equipment and is a good performer in applications up to 180 °F (82 °C) or when periodically cleaned with live steam or boiling water to sterilize.
Application of U-PE products:
industry | main properties | Application |
Machinery for food and packing industry | food hygiene,self-lubricating, anti-corrosion, sound deadening
| star wheel,worm,guide rail,gear wheel,slider,baffle plate and meat processing plant face plates,impact plate and so on |
Construction Machinery | self-lubricating, anti-friction,anti-impact | bulldozer shovel lining,excavator shovel lining,dump truck body lining |
Paper-making Machinery | anti-friction,anti-impact | case sealing,wrist guide roller, scraper faucet,wiper panel,suction chamber cover, guide plate hydrofoil etc. |
textile machinery | anti-impact | absorber panel coupler, picker stick, |
| anti-friction,anti-,chemicals | valve, gasket, filling, gear wheel, bolt, nozzle, axle, sleeve transmission gear,metal screen backing,pipe,flange,blender fanprotector and lining of machinery tools,and so on |
general machinery | self-lubricating,anti-friction,anti-impact | impeler pulley,bush,axle sleeve spacer,sealing spacer , slide guide plate tug boat |
mine machinery | anti-friction,anti-impact | ball mill lining, flotation machine impeller, cover plate,cutting machine lining,filter press plate slide way |
machined UHMWPE pipe, machined UHMWPE products CUSTOM MACHINED PARTS
Processing and machining of UHMW parts take place in a completely controlled environment.
We maintain a complete record of our products.
M&P's state of the art facilities are always open for you to visit.
For a quote on your custom UHMW parts click on the email
Some of the machined parts we do are:
Balls | Nozzels | Semiconductor Parts | Application: |
Back Up Rings | Pads | Sheaves | Thick board |
Blocks | Parts | Spacers | Fender pad |
Bushings | Plugs | Supports | Dock bumper |
Cams | Rings | Valve Seats | Cushion block |
Caps | Rods | Washers | Outrigger pad |
Guides | Rollers | Wear Pads | Wearing pad |
Medical Parts | Seals |
| Coal bunker liner |
Our Product type :
UHMWPE 3million molecule weight
UHMWPE 5million molecule weight
UHMWPE 7million molecule weight
UHMWPE 9million molecule weight
High Density Polyethylene
Different shape and size is also available
The properties of UHMW-PE:
Property | Unit | Value |
Density | g/cm3 | 0.93-0.96 |
Average molecular weight | g/mol | 3million- 10 million |
Tensile strength (23°C in air) | MPa | 22 |
Breaking strength | MPa | 42 |
Tensile strain at break | % | 600 |
Charpy impact strength (notched) | mJ/mm2 | No break |
Ball indentation hardness | N/mm2 | 42 |
Shore D hardness | -- | 65-70 |
Abrasion | % | 70-80, steel = 100 |
Static Friction Coefficient | -- |
≤0.16 |
Kinetic Friction Coefficient | -- |
≤0.10 |
Water Absorption | -- | NIL |
Elongation at break at 23 degress | % | ≥300 |
Temperature resistance | °C | -269 to +85 |
Melt Temperature | °C | 130-140 |

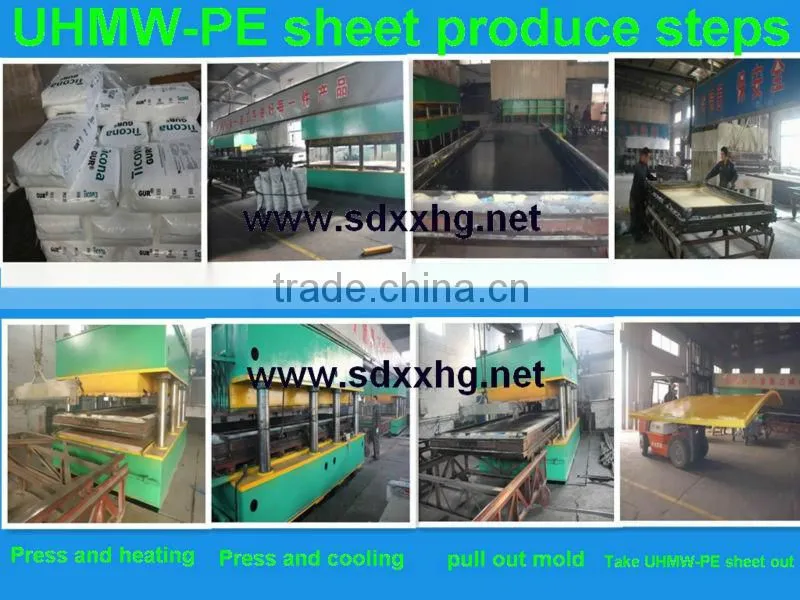

Our machine character:
Our company adopted the most advanced Oriented type pressing machine,the pressure can be up to 1500t/M2
The pressure is ten times of normal pressing machine.The most important is that we have guide post which make the pressing machine rise steadily and the sheet can be strengthed evenly and smoothly.
This processing method is called pressure molding means .Its main character is it will not affected by the molecule weight of UHMWPE.Even the highest molecule weight of UHMWPE can be reprocessed by our machine.
The advantage that you choose Dexin is :
We can provide you with all the OEM service and the best quality at reasonable price
Company Information
We are one of the largest Engineering Plastic products manufacture in China.
All the stuff in our company are dedicated to producing satisfying products and developing new products for our customer.
We have gained many certificates from government and professional fields .We have a wide variety of products, mainly including all kinds of UHMW-PE Fender Pad ,UHMW-PE Sheet ,HDPE Sheet ,PP Sheet ,Urethane Sheet ,PVC sheet and other Engineering plastic products.
Our products are widely applied on electric fields ,wharf and port ,mining ,chemical plant and so on which bring a lot of social benefits and economic benefits .Now they are popular all over the world.
We always share the things "Quality first, Customer first ,keeping improving " to win more benefits for our customer.
In order to achieving rapid and sustainable development, we are willing to establish a wide and deep cooperation
A.Main equipment of Xinxing
1.UHMW-PE mold press machinery : 5 sets (Working) 2 sets will be installed in this August
Mold size quantity
1200x1200x(10-100)mm 1 set
3050x1220x(10-60)mm 1 set
3000x1500x(10-250)mm 1 set
4500x2000x(10-100)mm 1 set
4700x1200x(10-180)mm 1 set
5000x1300x(10-180)mm 1 set
6000x2000x(10-200)mm 1set (will be installed this August )
6000x1800x(10-100)mm 1set (will be installed this August )
2.CNC machinery 7 sets
3.Intelligent cutting machinery 6sets
4.Small size cutting machinery 8sets
5.Drilling machinery : 10 sets
6.Thickness milling machinery : 4 sets
file planer 8.Extruded machinery (UHMW-PE tube) 9. Lathe 1 set
8.Recycling material process machinery 5 sets
B,Rich experience:
Processional technician and rich experience in engineering plastic field
C,High products quality
Stable raw material and independent material test center to ensure the quality
D,Low products price with high productivity
E,Low transportation cost ,near Qingdao port and Xingang Port
F,Qualified manufacturer:
ISO9001:2008 approved
Established Company-standard for our products
Qualified exporter without products problem since company established
High-integrity enterprise verified by Industrial and Commercial Bureau

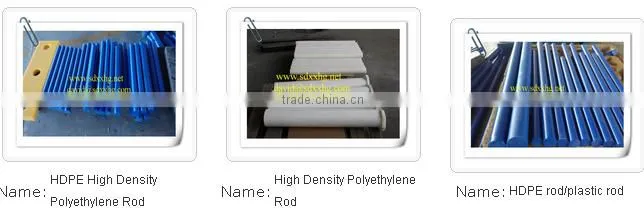

colored uhmwpe rod
colorful uhmw pe plastics rod
food grade uhmwpe rod
hdpe, uhmwpe, and pp rod
abrasion resistant uhmwpe rod
abrasion resistant hdpe, uhmwpe, and pp rod
High quality good abrasion resistant uhmwpe rod
HDPE rod, high quality high-density polyethylene HDPE rod
HDPE rod, UHMW Natural Round Rod
HDPE rod, UHMWPE Rod, nylon rod
wear resistant White HDPE Rods and bars manufacturer
For sale wear resistant White HDPE Rods and bars
