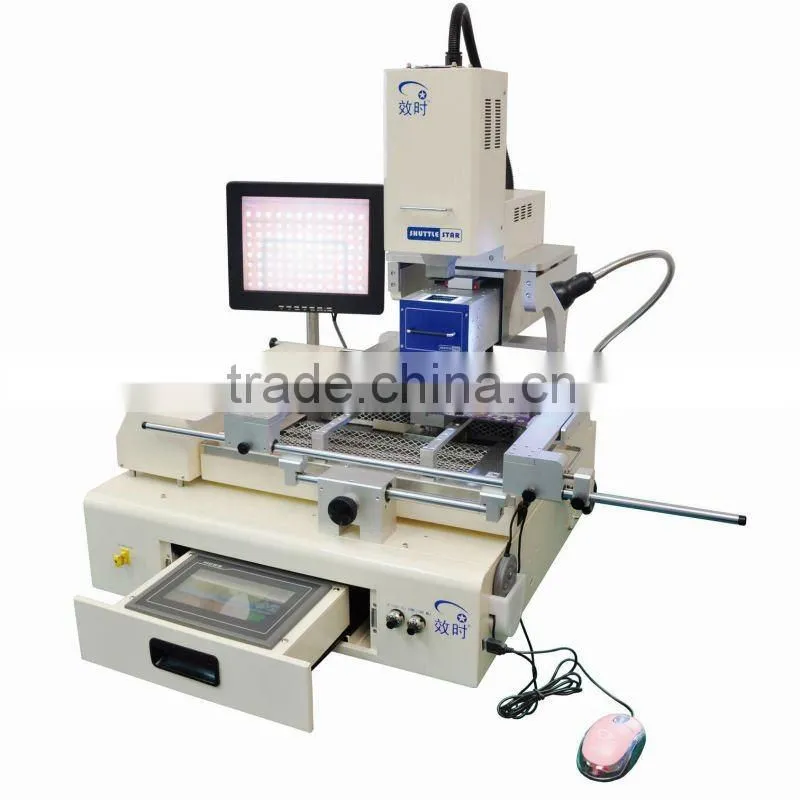

Help CenterAuto BGA Rework Station of SV550 With Optics Vision System
Related Products
-
220V PLC Control SP380 SP 380II Hot Air BGA Rework BGA Repair BGA Station Soldering Welding MachineUS$ 1,925 - 2,150MOQ: 1 Set -
BGA Rework Station ,BGA Desoldering Station,BGA Rework Equipment ZM-R5860CUS$ 1,915 - 2,205MOQ: 1 Set
-
ACHI IR12000 BGA Rework Station Infrared of BGA Rework Station for Laptop, Xbox, PS3US$ 1 - 1,050MOQ: 1 Set
-
ACHI Newest!!! Version ACHI IR12000 BGA Rework Station Infrared of BGA Rework for Laptop , for Xbox, For Ps3US$ 1,100 - 1,350MOQ: 1 Set
-
The BGA Rework Station for T835 With Hot Air GunUS$ 217 - 228MOQ: 1 Piece
Specifications
BGA rework station of SV5501) with LCD screen .
2) Optics vision system
3)Auto Bga rework sttion
4)Top station for repair
Descriptions
1 Hot air heater head and mounting head are designed 2 in 1, driven by step electric motor, have both the
auto soldering and mounting function;
2 Three heaters( upper/lower hot air heater, bottom IR heater) heating independently, time and temperature
can be displayed digitally on touch screen;
3 Upper heater is movable, with electromagnet positioning, convenient for manual placement operation;
4 Large movable bottom IR heating area(can be moved 100mm to left or to right), PCB clamps can be
adjusted along with X & Y table flexibly, the max PCB size it can handle up to 550×500mm;
5 Powerful cross flow fans cool the bottom heating area rapidly with stable speed.
6 Color optical system with functions of split vision, zoom in/out and micro-adjust, equipped with aberration
detection device; with auto focus and software operation function, 27 X optical focus,can realize precise
alignment for bigger BGA, able to rework BGA sized up to 70×70mm;
7 Embedded industrial computer with a mouse control, PLC control, real-time profile display, able to display
theset profiles and practical profiles at the same time; can analyze the practical profiles, and compare them
with the history saved profiles;
8 Color LCD monitor;
9 Built-in vacuum pump; 60 °rotation in ? angle, mounting nozzle is micro-adjustable;
10 8 segments of temperature up(down) and 8 segments constant temperature control, profile saving is
unlimited in the industrial computer; profile analysis can be carried out on touch scree;
11 Suction nozzle can identify material and mounting height automatically, and can control the air pressure
within a small range;
12 Equipped with different hot air nozzles, easy to replace and able to locate in any angle;
Specification
Upper heater: hot-air 800W Lower heater: hot-air& infrared 1200W
Bottom infrared heater: 3600W Power supply: single-phase 220V,50/60Hz,5.5KW
Workable PCB dimension: 20x20~550x500mm Workable PCB thickness: 0.5mm ~ 2.5mm
Workable BGA dimension: 1x1mm ~ 70x70mm Min pitch of BGA ball: 0.15mm
Placement precision: 0.01mm Max. BGA weight: 300g
Machine dimension: L850×W700×H63 0mm Weight: Appox. 80Kgs
