Update BGA Rework Station of Scotle IR PRO SC V4 ,Dark Infrared BGA Rework Station
US$ 680 - 790
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Scotle
Model Number:
IR-PRO-SC
Payment & Shipping
Payment Methods:
Port of Shipment:
GuangZhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Scotle HR460 BGA Rework Station With 7inch Touchscreen .US$ 1,155 - 1,250MOQ: 1 Set -
Scotle HR460C BGA Rework Station With DDC CameraUS$ 1,285 - 1,460MOQ: 1 Set
-
BGA Rework Station With Three Temperature Zones of HONTON HT-R390 White ,US$ 1 - 690MOQ: 1 Set
-
The Infrared IC Heater and Infrared Reflow Oven for T962CUS$ 535 - 615MOQ: 1 Set
-
The BGA Rework Station of Preheating Oven for T8280US$ 110 - 130MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Scotle
Model Number
IR-PRO-SC
Voltage
220V, 220V
Current
50/60Hz
Dimensions
630*600*350mm 540*340*340mm
Weight
28
Usage
Repair PCB board
Certification
CE
After-sales Service Provided
Overseas third-party support available
Specifications
1)add build-in higH quality pump suction pen2)Use More better quality heater plates
3)CE Passed

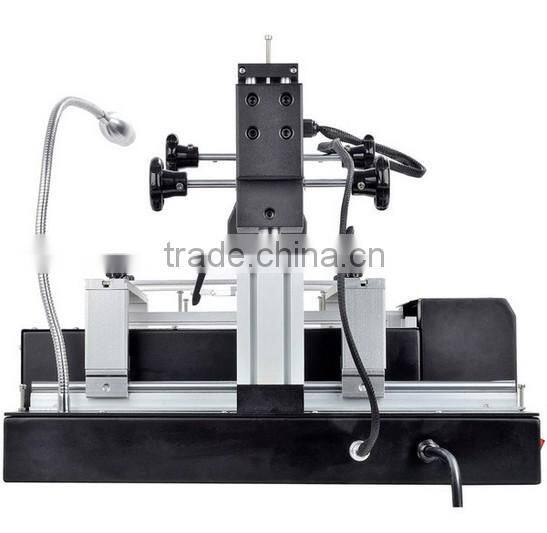

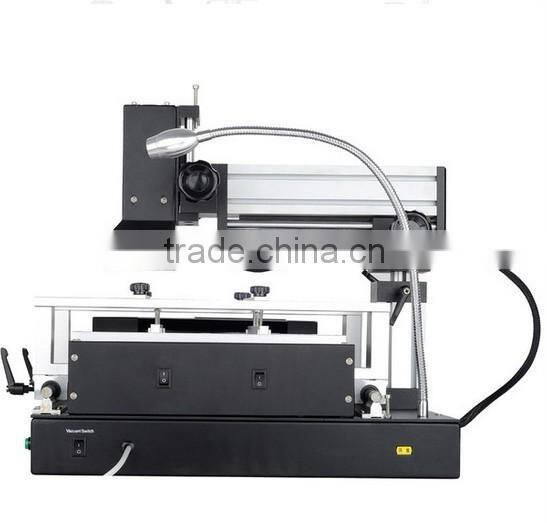

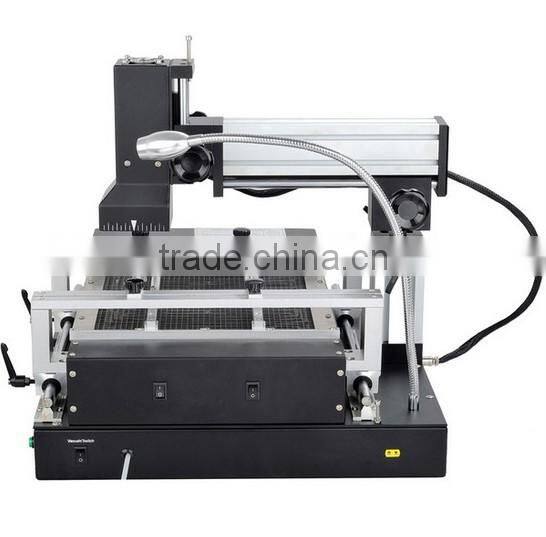

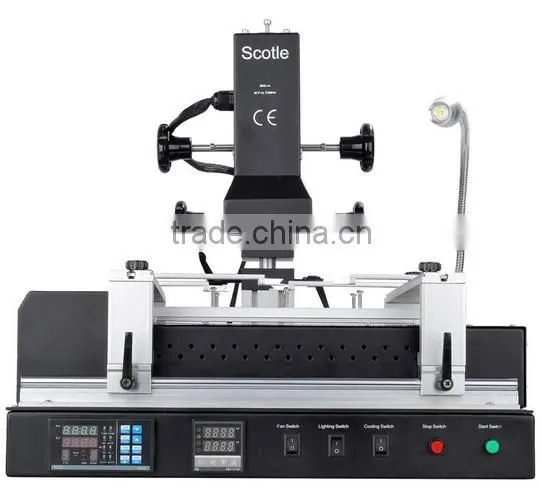

Scotle IR PRO SC V4 BGA Rework station
Products Description
What is difference with ir-pro-sc v3
1)Scotle ir-pro-sc v4 add build-in higH quality pump suction pen.
2)Use More better quality heater plates
3)CE Passed
Scotle IR-PRO-SC V4 BGA Rework Station is designed to meet the increasing everchanging demands of today`s fast BGA Rework environments (R).
Products apply to the welding of CBGA CCGA CSP QFN MLF PGA, all the green epoxy type BGA chip and other special parts such as metal shielding cover, plastic connector replacement of various and soft PCB.
Machine comes along with Manual and video demonstration CD-ROM,The information is easy to understand. Even if you have never engaged in BGA rework , it can be quickly mastered the technology
You’ll find its really the machine you need by its high integration Design, the smaller workbench, non-mixed cables and the convenient operation –all the process of soldering controlled by a button.
The height of Top heating head may adjust by rotating the handle. The Top Infrared heater could rework BGA ICs of large size up to 70*70mm.
The Linear guide type Bracket for BGA Reworks can be locked,adjusted by rotating the handle, It can fix PCB board easily, effectively prevent PCB board from deformation.
IR-PRO-SC can be connected to a computer with a built-in PC RS232 serial port. It can be controlled by the software. it can set up 8 rising temperature segments and 8 constant temperature segments to control. It can save 10 groups of temperature curves at one time
The fan could cool the PCB fast and efficiently. Large ir bottom heater(260mm*245mm)could heat the PCB evenly to avoid its deformation. The rate of successful soldering is higher.

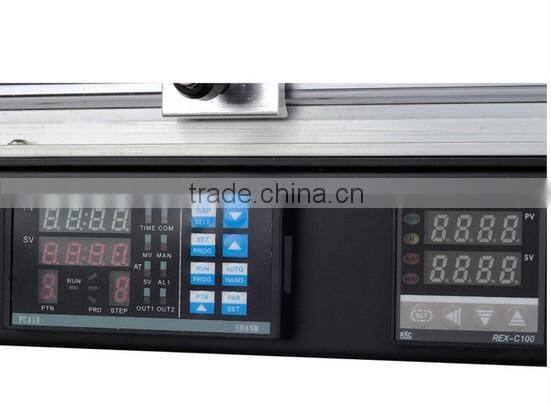

The top&bottom temperature areas heat independently. The sensitive temperatrue sensor could get the accurate data and the instantaneous information.. The closed-loop temperature control system offers the alarm funciton and the cutting of the power supply automatically.
The innovative design gets over the problem of ir heating rework station heating slowly and disorderly caused by the air flow. It can easy deal with the solder free soldering. The max temperature is up to 400 °C
Technical Parameters | |||||||||||||||||||||||||||||||||
|
