Specifications
1)BGA rework station for ZM-R5902) Lead-free welding Machine
3)repair bga chip set, such as laptop, desktop, xbox,sp3...
Description
|

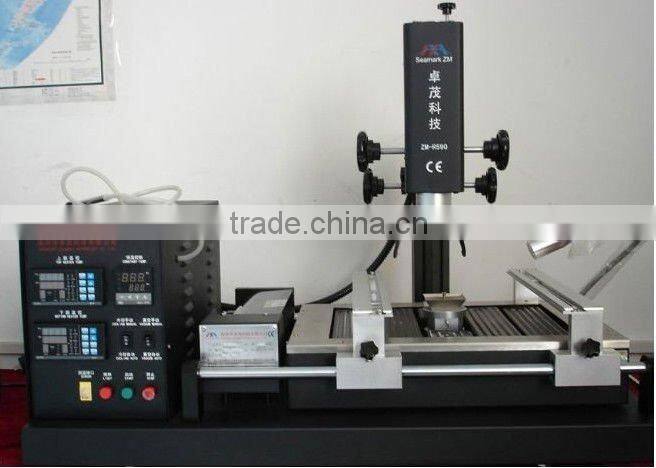

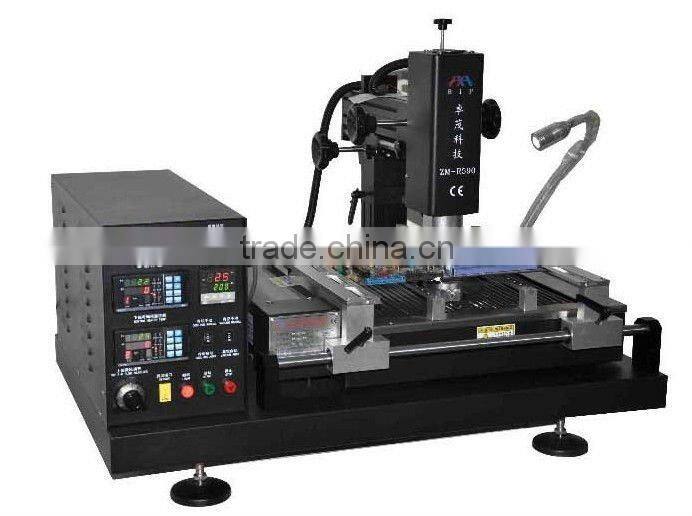

bga rework station ZM-R590
Specifications:
Features: 1. Choose imported high-precision materials (temperature sensor, heater) to control the BGA desoldering & soldering procedures precisely. 2. There are three independent heating areas from top to bottom. the first and second temperature areas can control many groups & sections of temperature parameters at the same time. The third area preheats the PCB tho roughly to achieve the best welding effect. 3. Choose imported high-precision thermocouple to detect top/down temperature precisely. With a function of over-temperature protection. 4. Top & bottom temperature areas heat independently, A cross-flow fan cools rapidly to protect the PCB from deformation when welding. 5. After finishing desoldering & soldering, there is an alarming. The machine is equipped with a vacuum suction pen to facilitate the removing of BGA after desoldering. 6. Use a V-groove equipped with a flexible fixture for PCB positioning to protect the PCB. 7. For large thermal capacity of PCB or other high-temperature and lead-free welding requirements, all can be handled easily. |
Consumption of upper heating:800W
Consumption of Bottom heating :1200W/2700W
General power :4700W
Power: AC220V±10% 50/60Hz
Size of applicable PCB :
Max 420×390mm Min 20×20 mm
Dimension :810*500*690mm
